Phoenix Contact AXC F 3152 User Manual

AXC F X152
40 / 112
PHOENIX CONTACT 107708_en_08
3.17 Bus base module
AXC F 1152 and AXC F 2152
AXL BS BK bus base
module
Bus base modules carry the communications voltage and the bus signals from the controller
through the Axioline F station (local bus). The AXL BS BK bus base module is supplied with
the AXC F 1152 and AXC F 2152 controllers.

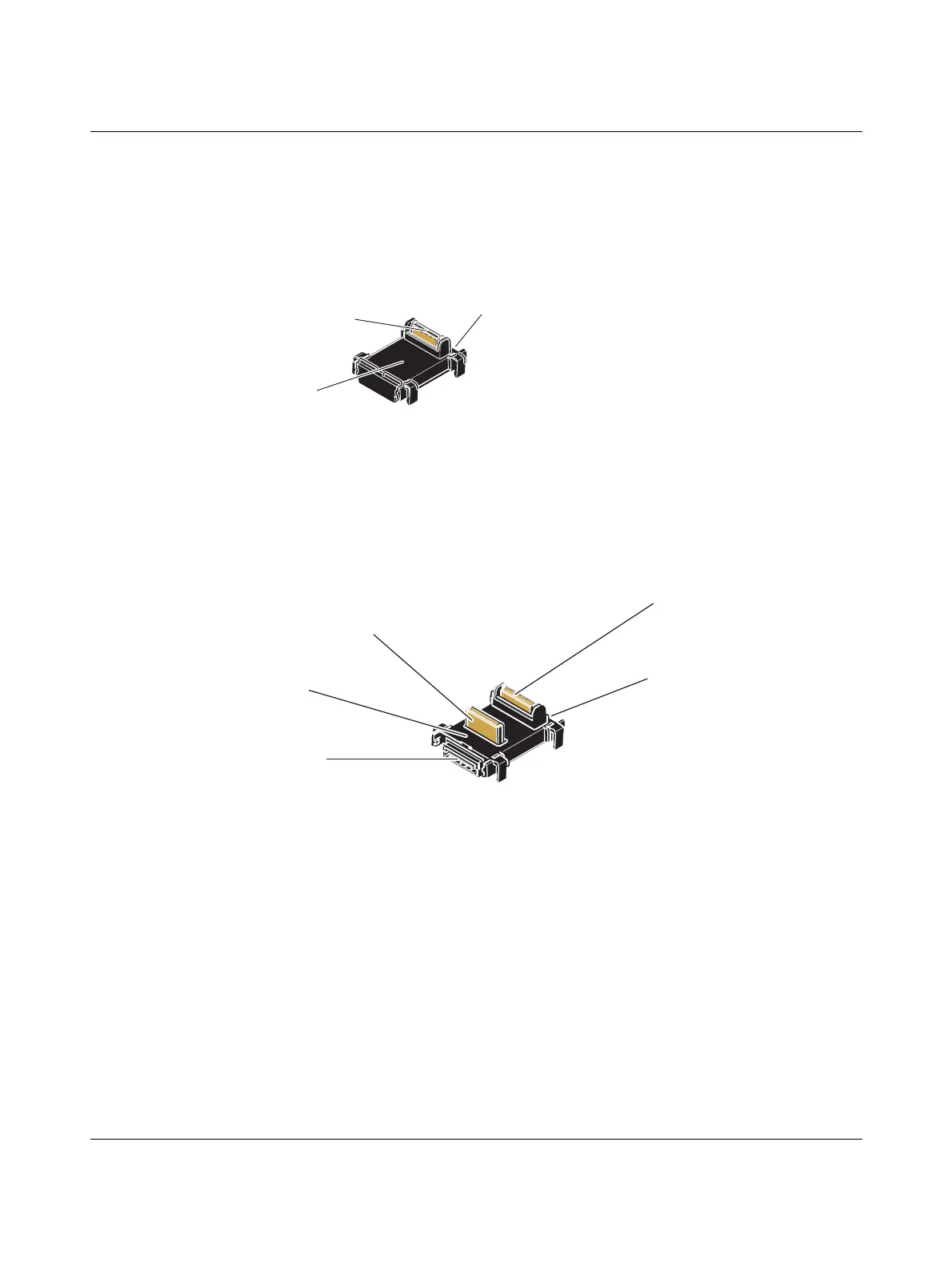

Figure 3-20 Structure of the AXL BS BK bus base module
1 Bus base module
2 Connection of the local bus to the controller
3 Connection to the bus base module of the local bus
AXC BS L 2 bus base
module (AXC F 2152 only)
For an Axioline F extension module to be aligned to the left, the AXC F 2152 requires the
AXC BS L 2 bus base module. The bus base module is not supplied with the controller.
Please refer to the ordering data in Section “Ordering data” on page 91.
Figure 3-21 Structure of the AXC BS L 2 bus base module
1 Connection to the bus base module of a left-alignable Axioline F extension module
2 Bus base module
3 Connection of the extension bus to the controller
4 Connection of the local bus to the controller
5 Connection to the bus base module of the local bus
1
3
2
1
2
3
5
4
