Phoenix Contact AXC F 3152 User Manual

Description of the controllers
107708_en_08 PHOENIX CONTACT 23 / 112
AXC F 3152

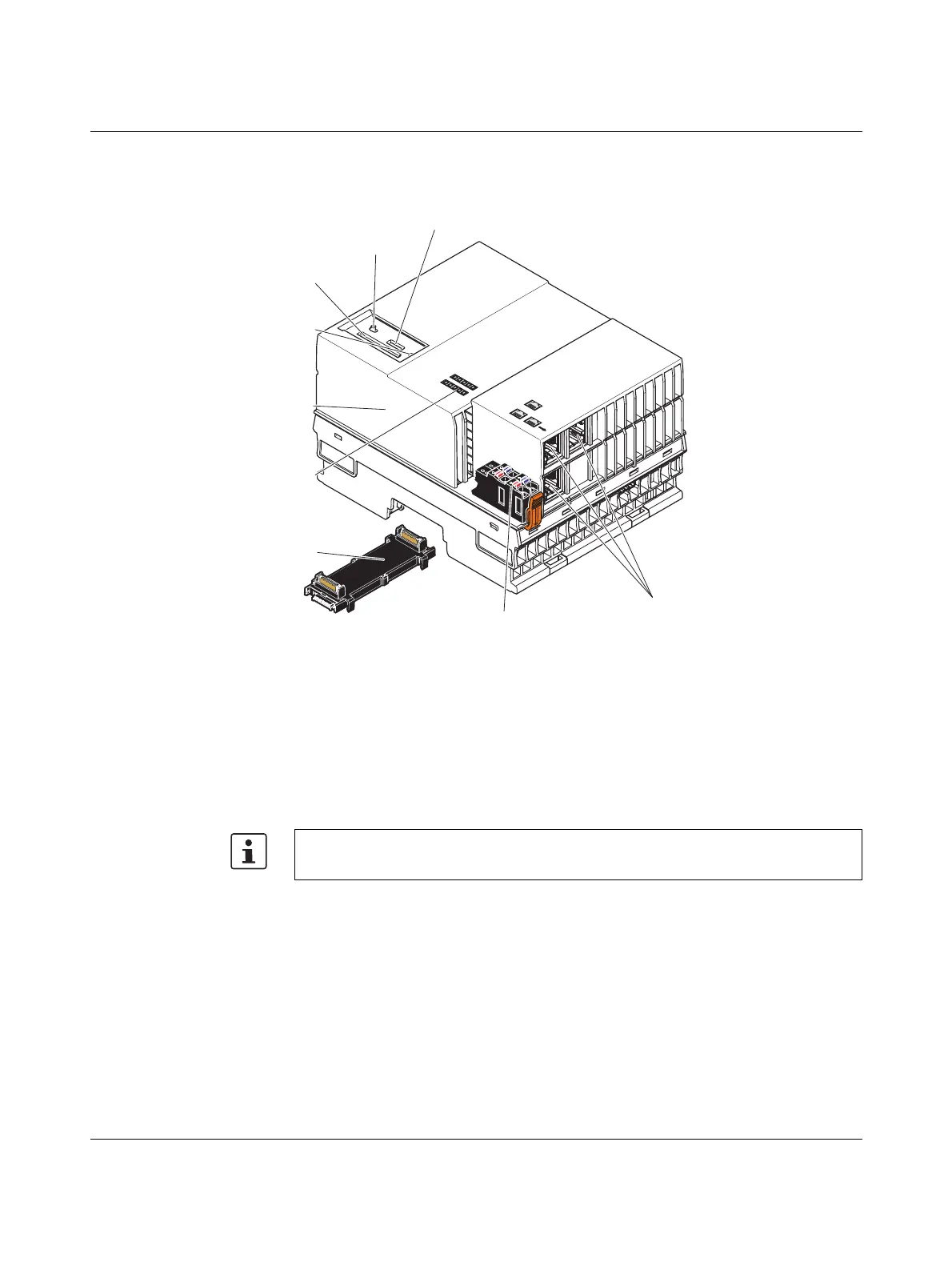

Figure 3-7 Connection and operating elements of the AXC F 3152 controller
The controller consists of the following components:
1 Bus base module
2 Diagnostic and status indicators
3 Electronics module
4 Reset button
5 SD card holder
6 Mode selector switch
7 Service interface (X4)
8 Ethernet interfaces (X1, X2, X3)
9 Supply connector (connector for connecting the supply voltage (communications volt-
age U
L
))
The SD card is optional and not supplied as standard with the controller.
Please refer to the ordering data in Section “Ordering data” on page 91.
7
5
4
3
2
1
8
6
9
