3.9 Diagnostic and status indicators
The diagnostic and status indicators are used for quick local error diagnostics.

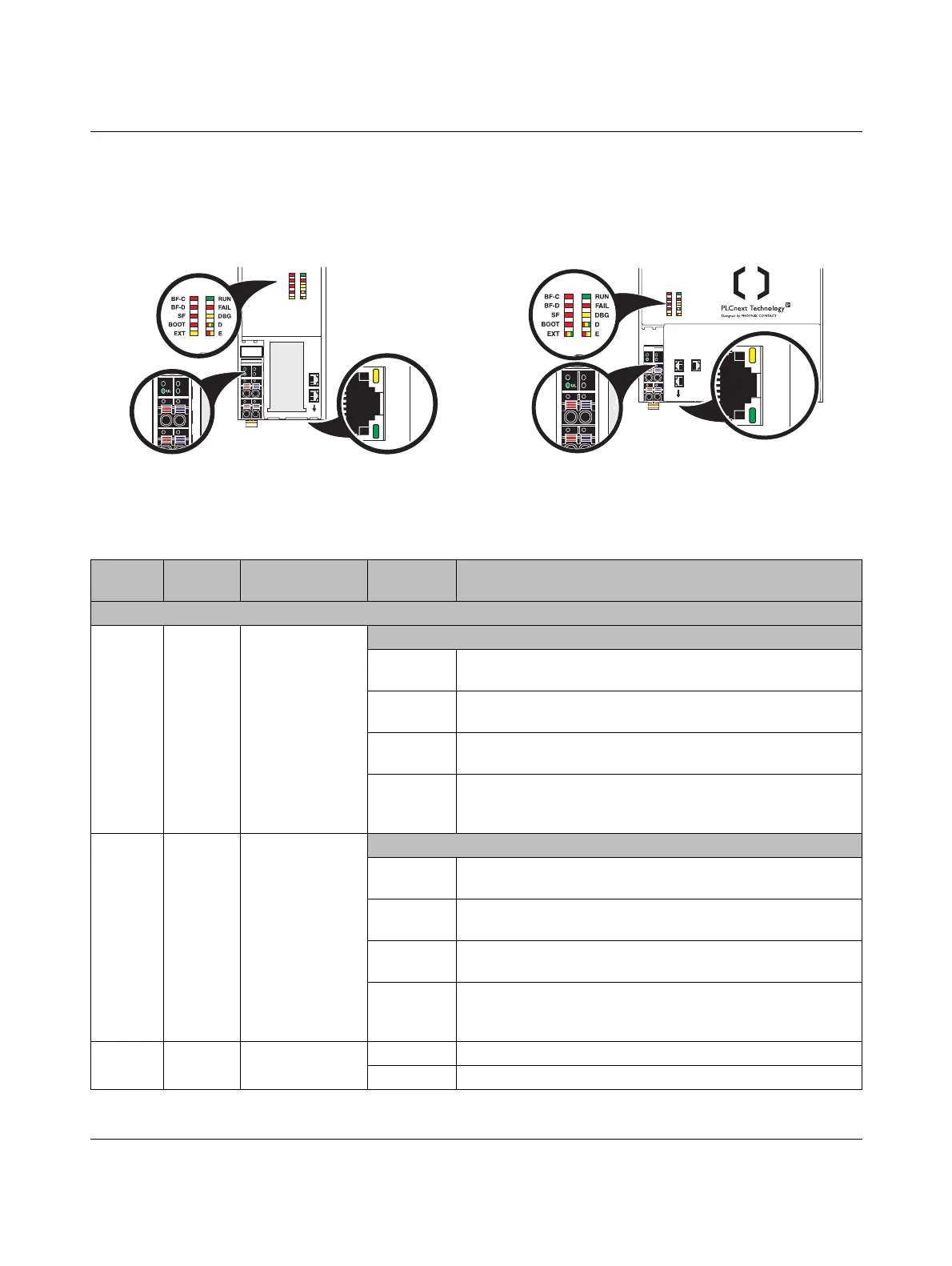

Figure 3-10 Diagnostic and status indicators
AXC F 1152 and AXC F 2152 AXC F 3152
BF-C
BF-D
SF
RUN
FAIL
DBG
D
E
UL
ETH
PWR
PN/AXC/
PLC
BOOT
EXT
X1
X2
BF-C
BF-D
SF
RUN
FAI L
DBG
D
E
BOOT
EXT
UL
a1 b1
b2b1
X2
X1
X3
PN/AXC/
PLC
PWR
ETH
Table 3-1 Controller diagnostic and status indicators
Desig-
nation
Color Meaning State Description
PN: PROFINET controller/device function
BF-C
Red/yel-
low
Status of
PROFINET com-
munication/
communication
error
Controller as PROFINET controller
Off
The controller has established an active communication con-
nection to each configured PROFINET device.
Red on
No link status on the Ethernet interfaces and/or no 100 Mbit
transmission and/or no full duplex mode.
Flashing
red (1 Hz)
Link status present, at least one configured PROFINET device
does not have a communication connection.
Flashing
yellow
(0.5 Hz)
Flashing for device identification
BF-D
Red/yel-
low
Status of
PROFINET com-
munication/
communication
error
Controller as PROFINET device
Off
A PROFINET controller has established an active communica-
tion connection to the controller (PROFINET device).
On
No PROFINET communication (no link status at the Ethernet in-
terfaces)
Flashing
(1 Hz)
Link status present, no communication connection to the
PROFINET controller
Flashing
yellow
(0.5 Hz)
Flashing for device identification
SF Red
Group error
(PROFINET)
Off PROFINET diagnostics not present
On PROFINET diagnostics present
