14 Technical Data
96 Version: 2.0.0 MS205Equ C-863 Mercury Controller
14.2 System Requirements
The following system requirements must be met to operate the C-863:
 PC with Windows (XP, Vista, 7) or Linux operating system
 Communication interface to the PC:
− Free COM port on the PC
- or -
− USB A socket on the PC
 C-863 with power supply
 Mechanical system (stage) with DC motor
 RS-232 null-modem cable or USB cable for connecting the controller to the
PC
 Product CD with PC software
14.3 Dimensions
Dimensions in mm. Note that the decimal places are separated by a comma in the
drawings.
Standard tolerance according to DIN ISO 2768 - f - H
Roughness Ra 1.6

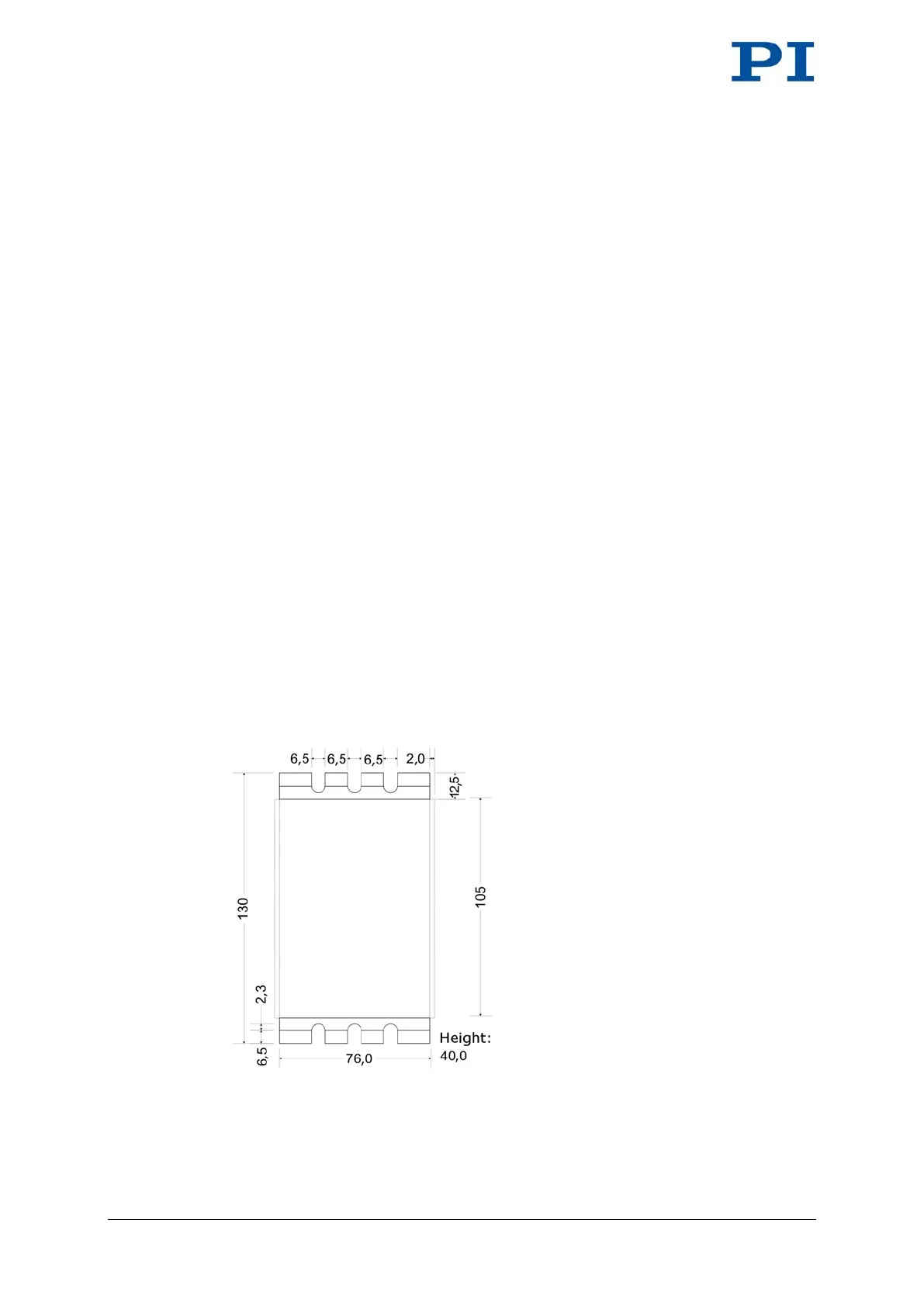

Figure 22: C-863, dimensions in millimeters
