PI C-863 User Manual

14 Technical Data
98 Version: 2.0.0 MS205Equ C-863 Mercury Controller
14.4.2 I/O
Mini-DIN socket, 9-pin, female

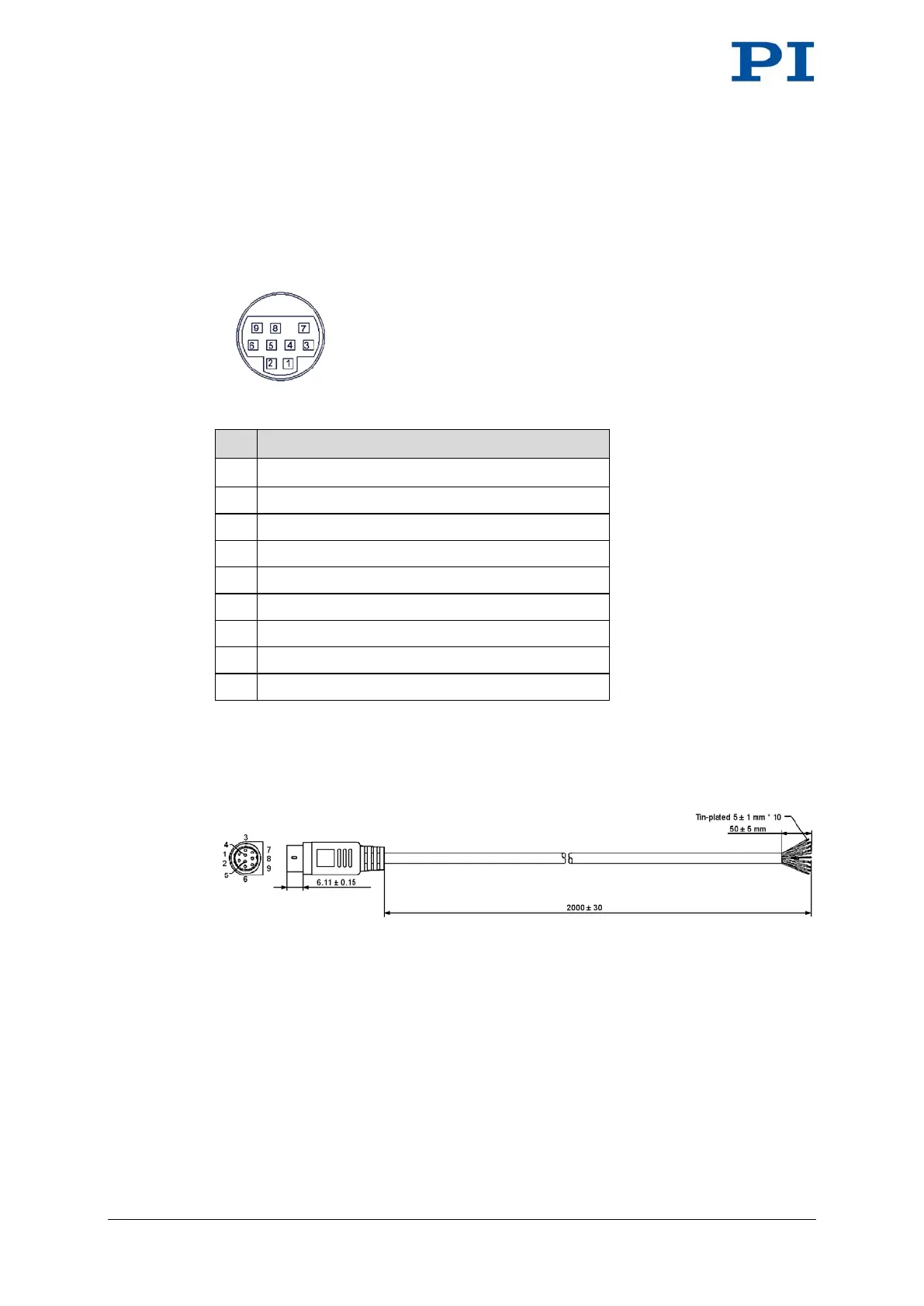

Figure 23: I/O socket, Mini-DIN, 9-pin
Pin Function
1 Input 1 (analog: 0 to 5V / digital: TTL)
2 Input 2 (analog: 0 to 5V/ digital: TTL)
3 Input 3 (analog: 0 to 5V/ digital: TTL)
4 Input 4 (analog: 0 to 5V/ digital: TTL)
5 Output 1 (digital: TTL)
6 Output 2 (digital: TTL)
7 Output 3 (digital: TTL)
8 Output 4 (digital: TTL)
9 Vcc (5 V)
14.4.3 C-170.IO Cable for Connecting to the I/O Socket
Mini-DIN connector, 9-pin, male, open end
Figure 24: C-170.IO cable
Specifications
Temperature range: -25 °C to +85 °C
Nominal current: 1 A AC/DC
Insulation resistance: 50 MW min.
Nominal voltage: 50 V AC/DC
Voltage impulse: 500 V AC for 1 minute
