PI C-863 User Manual

7 Start-Up
42 Version: 2.0.0 MS205Equ C-863 Mercury Controller
7.2 Adapting the DIP Switch Settings
7.2.1 General Procedure
INFORMATION
Changed DIP switch settings become effective after the C-863 is switched on.
 If you have changed the DIP switch settings while the C-863 was switched on,
switch the C-863 off and back on again to activate the new settings.

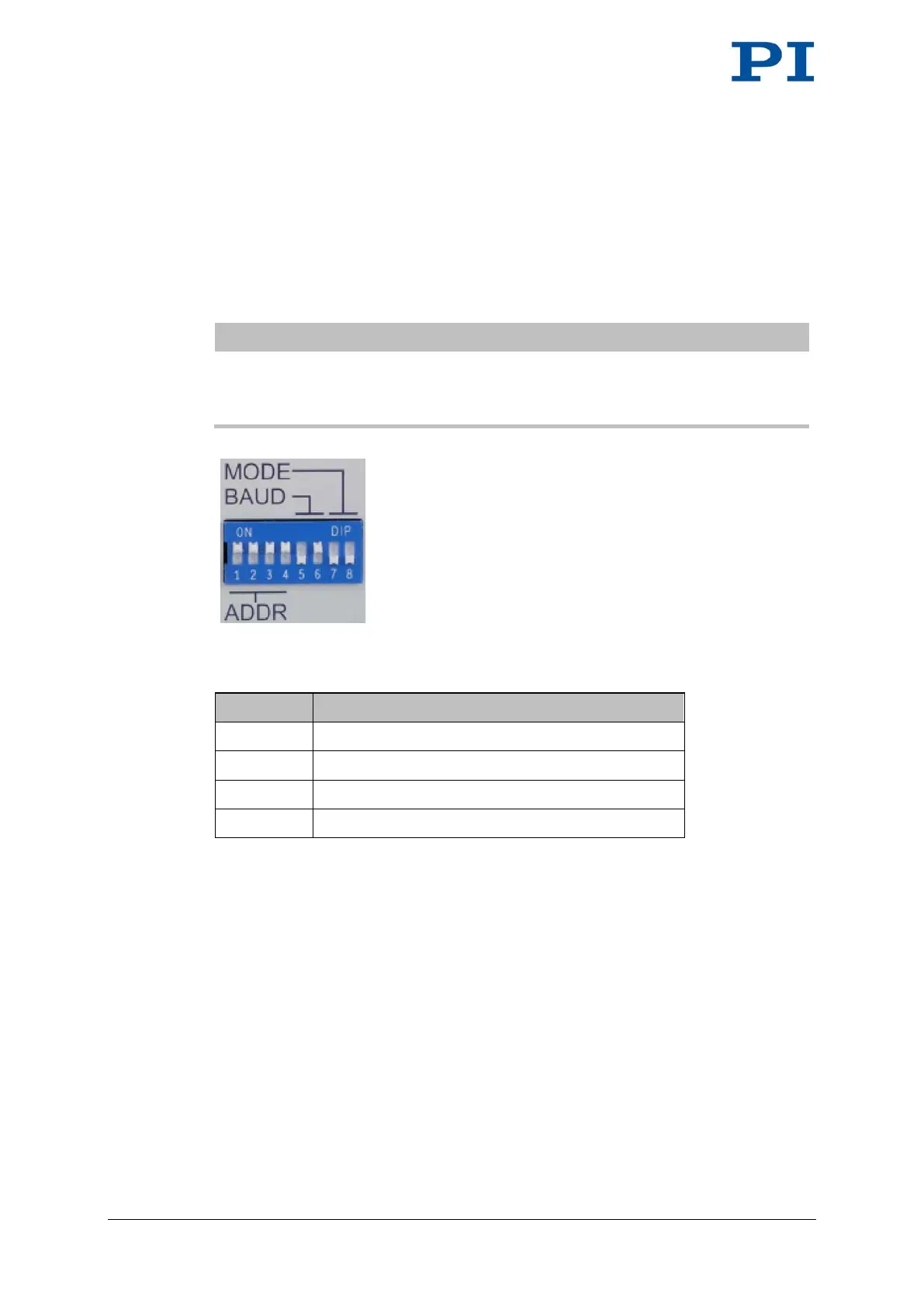

Figure 7: DIP switches: switch up = ON; switch down = OFF
Switches Function
1 to 4 Controller address (p. 43); 16 possible combinations
5 and 6 Baud rate (p. 44)
7 Logic level of the limit switches (p. 44)
8 Update mode (p. 45)
Prerequisite
 The C-863 is switched off, i.e. the power supply is not connected to the power
socket with the power cord.
Adapting the DIP switch settings
 Put the individual DIP switches in the correct position for your application.
Details are given in the following tables.
