PI C-863 User Manual

14 Technical Data
100 Version: 2.0.0 MS205Equ C-863 Mercury Controller
14.4.5 C-819.20Y Cable for C-819.20 Joystick
The C-819.20Y cable makes it possible to connect 2 controllers to the C-819.20
joystick.

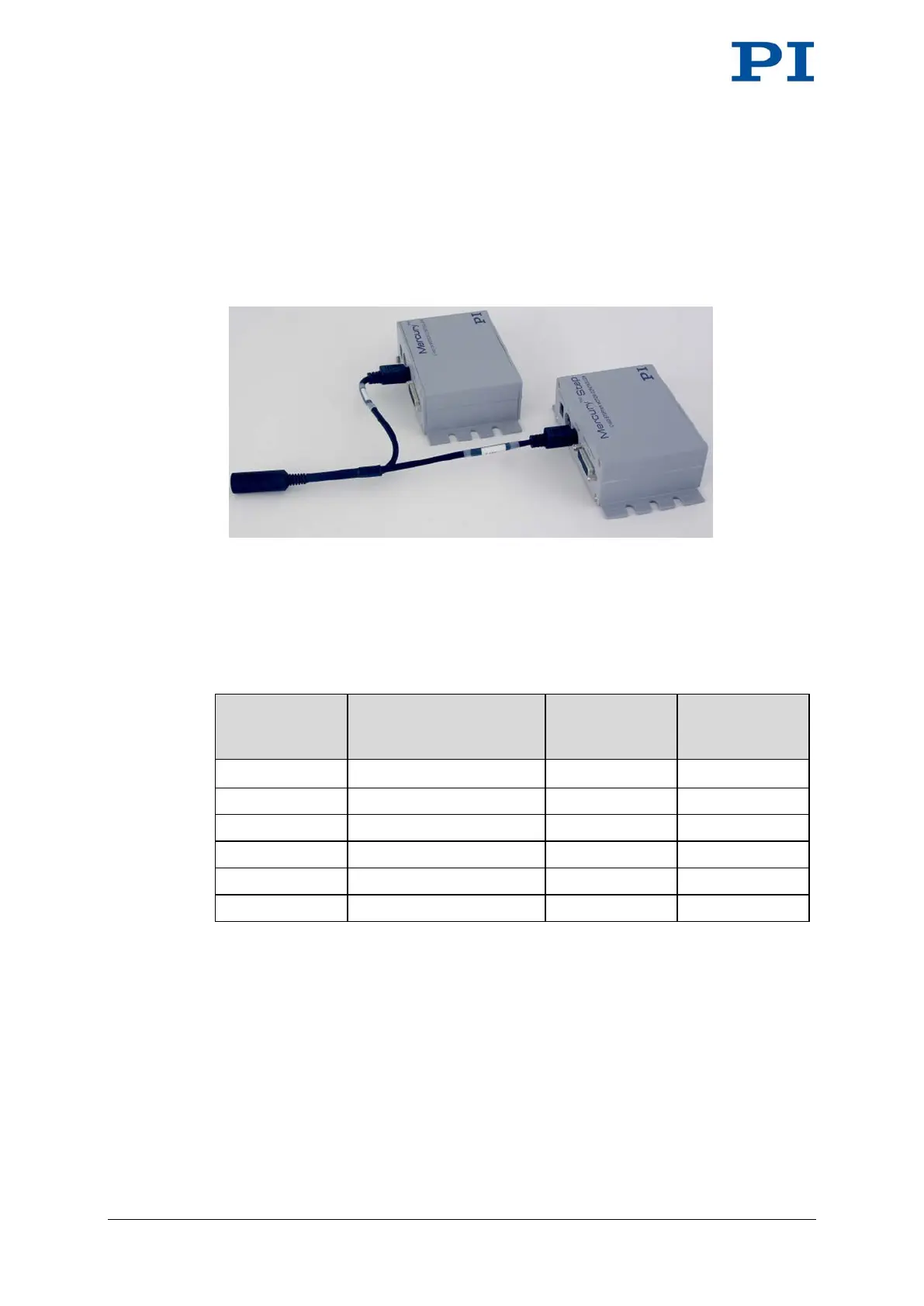

Figure 26: Y cable C-819.20Y for joystick with 2 controllers
Mini-DIN connector, 6-pin, female on 2 Mini-DIN connectors, 6-pin,
male
Mini-DIN 6-pin,
female (to
joystick)
Signal
Mini-DIN, 6-pin,
male, X branch (to
controller 1)
Mini-DIN, 6-pin,
male, Y branch (to
controller 2)
Pin 1 GND Pin 1 Pin 1
Pin 2 Button for joystick Y axis Not connected Pin 6
Pin 3 Joystick power source Pin 3 Not connected
Pin 4 Joystick X axis Pin 4 Not connected
Pin 5 Joystick Y axis Not connected Pin 4
Pin 6 Button for joystick X axis Pin 6 Not connected
