PI C-863 User Manual

14 Technical Data
C-863 Mercury Controller MS205Equ Version: 2.0.0 99
Pin Wire color Function on the I/O socket of the C-863
1 black Input 1 (analog: 0 to 5V / digital: TTL)
2 white Input 2 (analog: 0 to 5V / digital: TTL)
3 red Input 3 (analog: 0 to 5V / digital: TTL)
4 yellow Input 4 (analog: 0 to 5V / digital: TTL)
5 purple Output 1 (digital, TTL)
6 blue Output 2 (digital, TTL)
7 green Output 3 (digital, TTL)
8 brown Output 4 (digital, TTL)
9 gray Vcc (5V)
Sheath
Shield, coated black
(thicker than the wire
connected to pin 1)
GND
14.4.4 Joystick
Mini-DIN socket, 6-pin, female (PS/2)

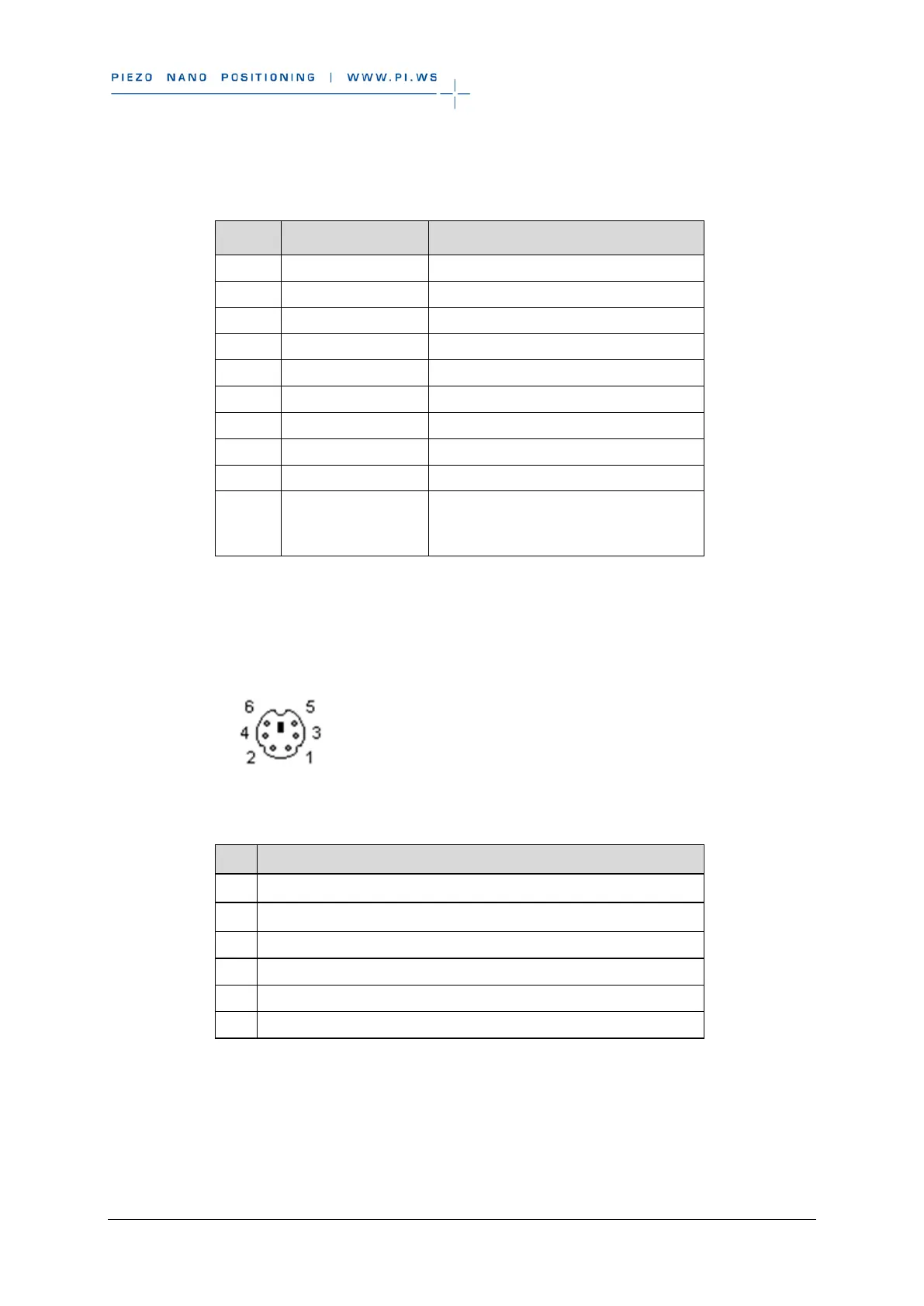

Figure 25: Front view of Mini-DIN socket
Pin
Function
1 GND
2 Input: axis 1 of joystick device 2 (-10 to 10 V)
3 Output: Vcc (3.3 V)
4 Input: axis 1 of joystick device 1 (0 to 3.3 V)
5 Not connected
6 Input: joystick button 1 of joystick device 1 (0 or 3.3 V)

PI C-863 Specifications

General

Brand	PI
Model	C-863
Category	Controller
Language	English
