C-863 Mercury Controller MS205Equ Version: 2.0.0 47
The C-863 is switched on (p. 45).
The PC is switched on.
The required software is installed on the PC (p. 29).
You have read and understood the manual of the used PC software. The
software manuals are found on the product CD.
Establishing communication
1. Start PIMikroMove.
The Start up controller window opens with the Connect controller step.
− If the Start up controller window does not automatically open, select the
Connections > New... menu item in the main window.

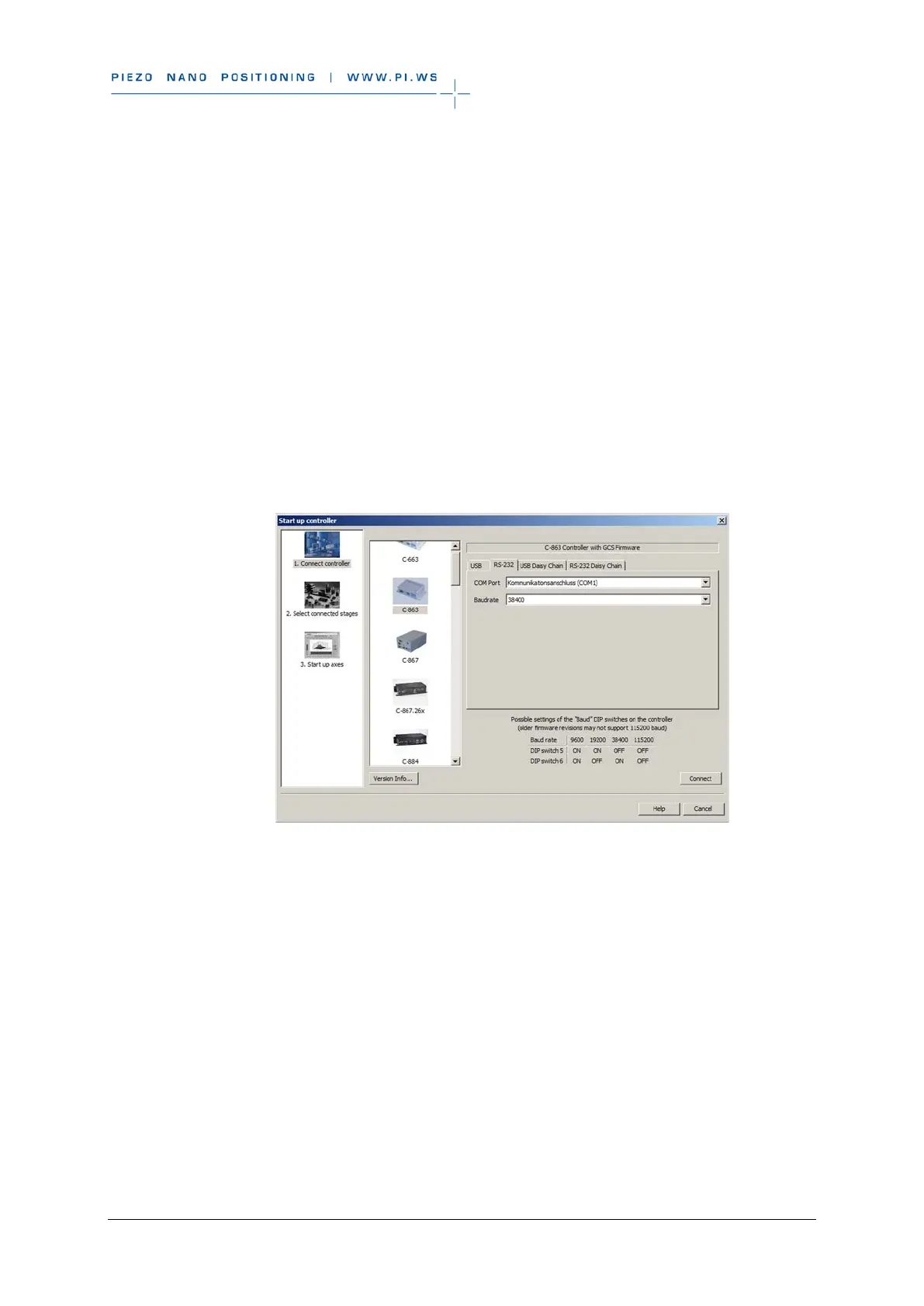

Figure 8: Start up controller – Connect controller
2. Select C-863 in the field for controller selection.
3. Select the RS-232 tab on the right side of the window.
4. In the COM Port field, select the COM port of the PC to which you have
connected the C-863.
5. In the Baudrate field, set the value that is set with DIP switches 5 and 6 of the
C-863.
This adapts the baud rate of the PC to the baud rate of the C-863.
6. Click Connect to establish communication.
