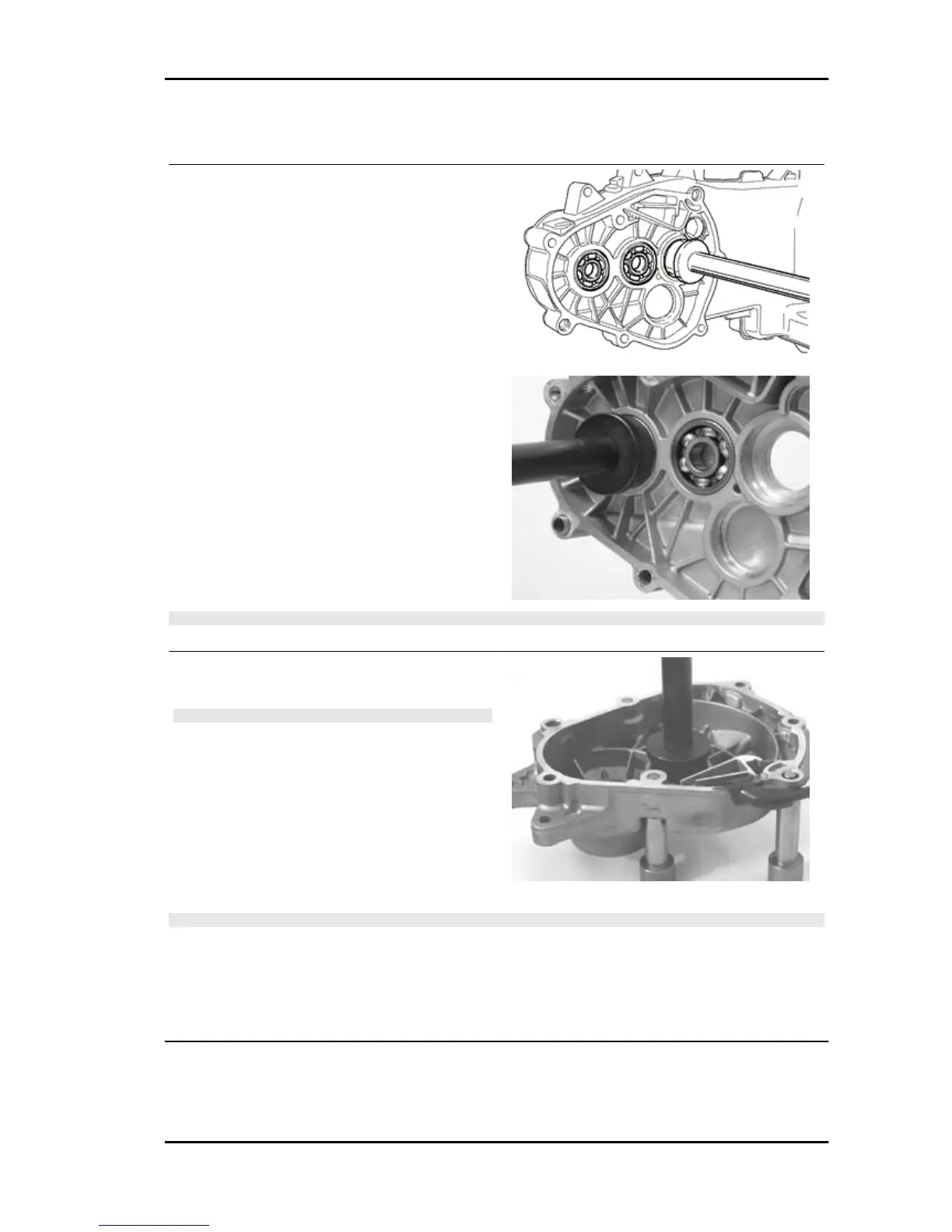

Refitting the hub cover bearings
In order to fitting of the hub box bearings, the en-
gine crankcase and the cover must be heated with
the special heat gun.
- The three 15 mm bearings must be fitted using
the appropriate tools.
- The 42-mm side of the adapter must be turned
towards the bearing.
Specific tooling
020150Y Air heater support
020151Y Air heater
020376Y Adaptor handle
020359Y 42x47-mm adaptor
020412Y 15 mm guide
N.B.
TO FIT THE BEARING ON THE COVER, SUPPORT THE COVER WITH THE STUD BOLT SET.
- Refit the driven pulley shaft bearing with a mod-
ular punch as shown in the figure.
N.B.
IF THE BEARING HAS AN ASYMMETRICAL
BALL RETAINER, PLACE IT SO THAT THE
BALLS ARE VISIBLE FROM THE HUB INNER
SIDE.
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm adaptor
020363Y 20 mm guide
N.B.
WHEN FITTING THE BEARINGS ON THE ENGINE CRANKCASE, SUPPORT THE CRANKCASE
PREFERABLY ON A SURFACE TO ALLOW THE BEARINGS TO BE DRIVEN VERTICALLY.
- Refit the Seeger ring with the opening facing the bearing and fit a new oil guard flush with the crankcase
from the pulley side.
Refitting the hub bearings
- Install the three shafts in the engine crankcase as shown in the figure.
MP3 125 Engine
ENG - 21
