CAUTION: SHOULD IT BE NECESSARY TO REMOVE ONLY THE MUFFLER TIP, ALWAYS RE-
PLACE THE GRAPHITE GASKET BETWEEN STUB AND TIP.

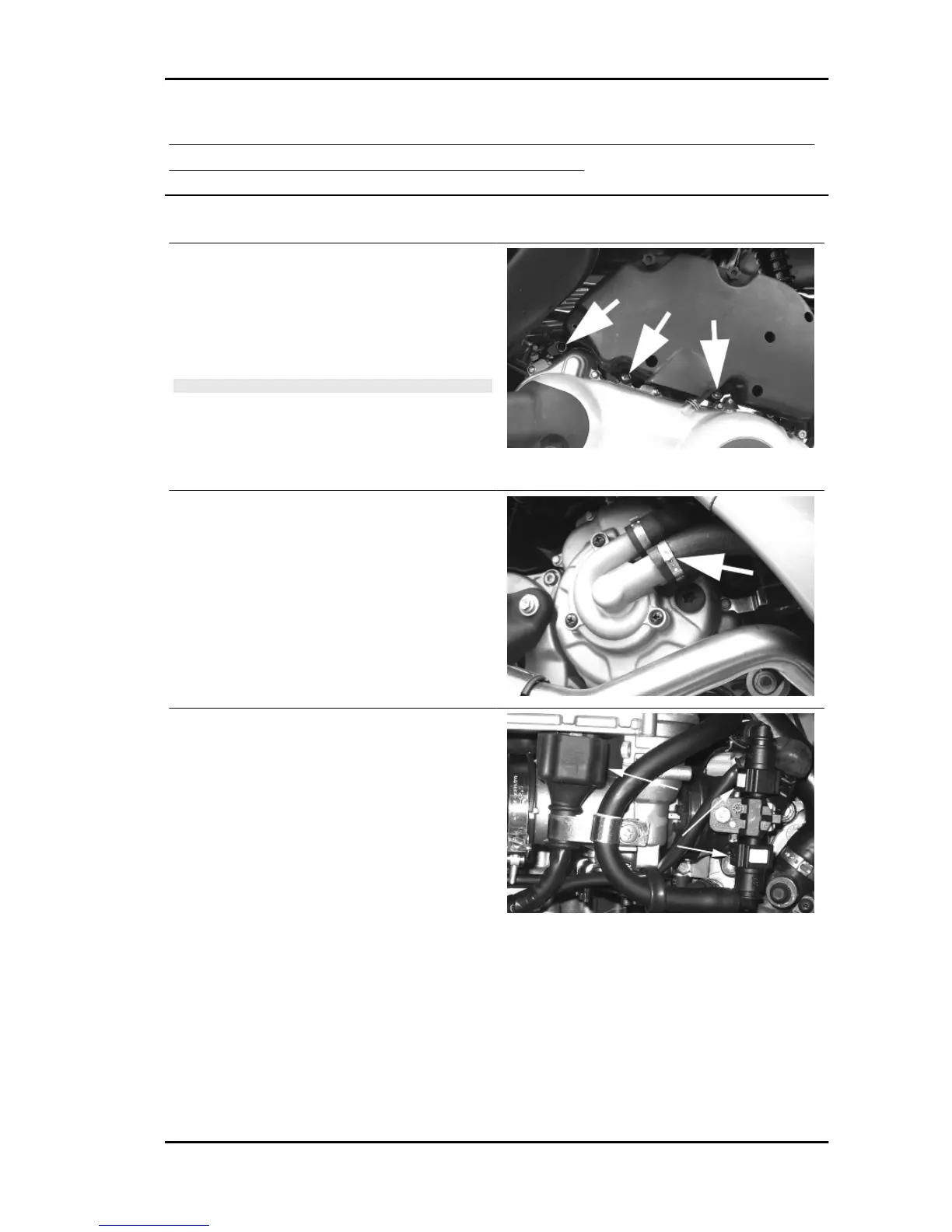

Removal of the engine from the vehicle
- Disconnect the battery
- Remove the engine cover inside the helmet com-
partment
- Remove the side panels
Remove the full muffler assembly.
CAUTION
THIS OPERATION MUST BE CARRIED OUT
WHEN THE ENGINE IS COLD.
- Remove the rear wheel.
- Remove the pipe feeding coolant into the pump
as shown in the photograph and then empty the
system.
- Remove the engine coolant outlet pipe as indi-
cated.
- Disconnect the fuel delivery and return pipes from
the injector by removing the screw locking the re-
taining clip.
- Disconnect the injector wiring and the throttle
body control unit wiring.
MP3 125 Engine from vehicle
ENG VE - 3
