Specification Desc./Quantity
from the battery: parking control ECU
Location:battery compartment
6 Fuse No. 6 Capacity: 4A
Protected circuits:start-up, stop lights.
Location:footrest
7 Fuse No. 7 Capacity: 4A
Protected circuits:panel lighting, tail lights,
license plate light
Location:footrest
8 Fuse No. 8 Capacity: 7.5 A
Protected circuits:lights switch, horn, wiring
for Tom-Tom
Location:footrest
9 Fuse No. 9 Capacity: 7.5 A
Protected circuits:saddle opening receiver,
hazard and turn indicator control device, anti-
theft device pre-installation, turn indicator
switch, instrument panel, horn remote control
Location:footrest
10 Fuse No. 10 Capacity: 7.5 A
Protected circuits:headlight remote control
Location:footrest
11 Fuse No. 11 Capacity: 3A
Protected circuits:electric pump control de-
vice
Location:footrest

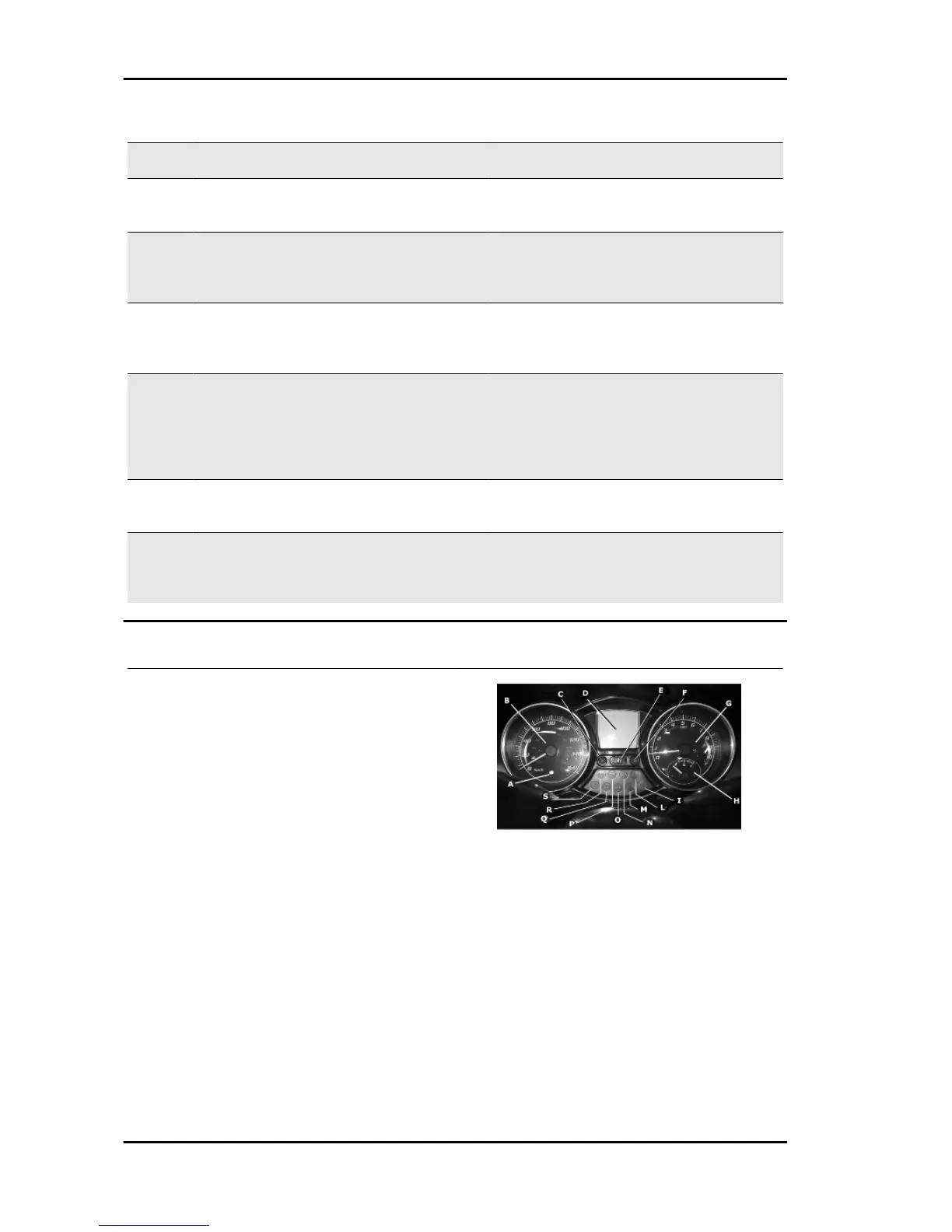

Dashboard
A = Led immobilizer / anti-theft device
B= Speedometer with twin scale (km/h and mph)
C = CLOCK switch
D = Digital display
E = Front suspension locking system warning light
(if available)
F = SET switch
G = Rpm indicator
H = Fuel gauge
I = Warning light for helmet compartment courtesy
light on
L = Engine control telltale light and injection sys-
tem failure warning light
M = Low fuel warning light
N = Engine stop warning light
D= Turn indicator warning light
P = Low oil pressure warning light
Electrical system MP3 125
ELE SYS - 22
