PIAGGIO 633929(IT) - Refitting the Crankcase Halves; Studs

Crankcase
halves
Engine half
shaft
Bushing
Cat. 1 Cat. 1 B
Cat. 2 Cat. 2 B
Cat. 1 Cat. 2 A
Cat. 2 Cat. 1 C
N.B.
TO KEEP THIS POSITION OF THE BUSHINGS
ON THE CRANKCASE, FITTING IS FORCED ON
STEEL RINGS INSERTED IN THE CASTING OF
BOTH CRANKCASE HALVES.
N.B.
DO NOT TAKE THE MEASUREMENT ON THE
TWO HALF-SHELL COUPLING SURFACE
SINCE THE ENDS ARE RELIEVED TO ALLOW
BENDING DURING THE DRIVING OPERATION.
N.B.
CRANKCASES FOR REPLACEMENTS ARE
SELECTED WITH CRANKCASE HALVES OF
THE SAME CATEGORY AND ARE FITTED
WITH CATEGORY B BUSHINGS (BLUE)
Characteristic
Standard driving depth
1.35 ÷ 1.6
Diameter of crankcase without bushing
32.953 ÷ 32.963
Refitting the crankcase halves
Studs
Check that the stud bolts have not worked loose
from their seat in the crankcase.

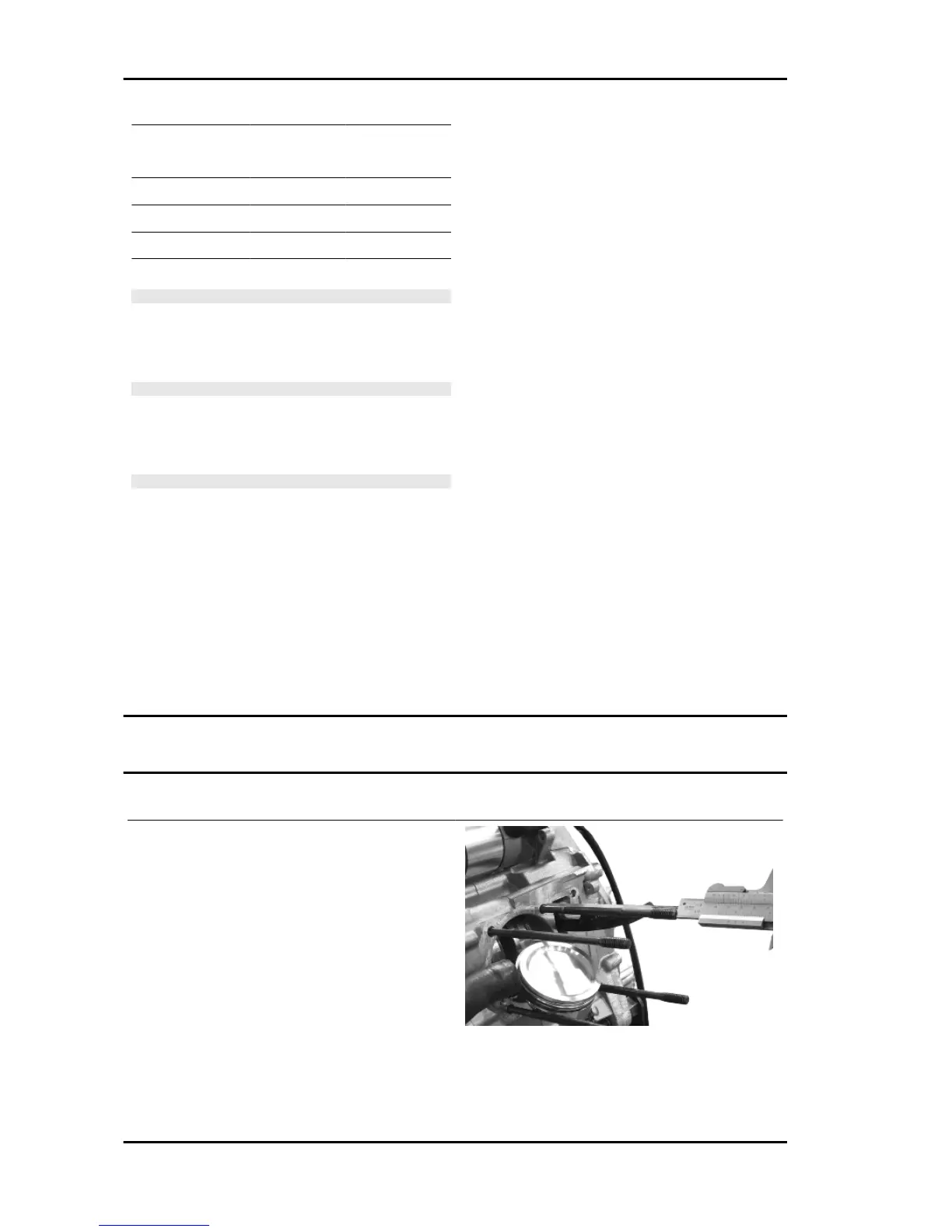

Check the depth of stud bolt driving with a gauge,
as indicated in the photograph. If it varies signifi-
cantly from the driving depth indicated, it means
that the stud bolt has yielded.
In this case, replace it.
Engine MP3 125
ENG - 56
