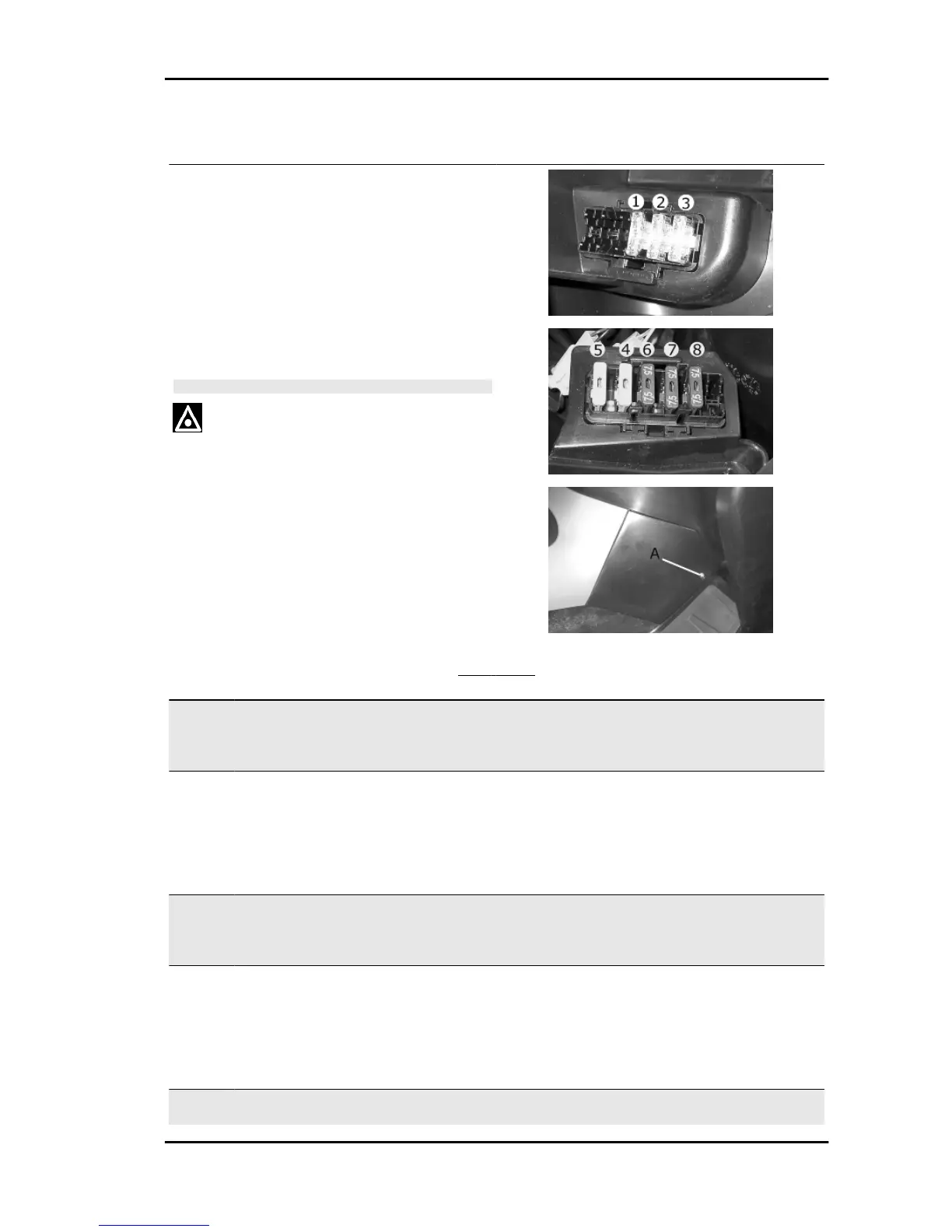

Fuses
The electrical system has eleven fuses divided into
two fuse boxes to protect the different installation
circuits. One of them is inside the battery compart-
ment and the other is at the right internal side of
the footrest. To be able to reach them, loosen the
screw "A" and remove the plastic cover. The chart
shows the position and characteristics of the fuses
in the vehicle.
CAUTION
BEFORE REPLACING THE BLOWN FUSE,
FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO RE-
PLACE THE FUSE WITH ANY OTHER MATERI-
AL (E.G., A PIECE OF ELECTRIC WIRE).
FUSE CHART
Specification Desc./Quantity
1 Fuse No. 1 Capacity: 10A
Protected circuits:
from the battery: headlight remote control
Location:battery compartment
2 Fuse No. 2 Capacity: 7.5 A
Protected circuits:
from the battery: saddle opening receiver,
hazard and turn indicator control device, anti-
theft device pre-installation, instrument pan-
el, helmet compartment lighting
Location:battery compartment
3 Fuse No. 3 Capacity: 15 A
Protected circuits:
live: parking control ECU, fuses 8, 9 and 10
Location:battery compartment
4 Fuse No. 4 Capacity: 15 A
Protected circuits:
from the battery: voltage regulator, electric
fan, electronic ignition device
live: engine stop switch, starter, electronic ig-
nition device, TPS, fuses 7 and 11
Location:battery compartment
5 Fuse No. 5 Capacity: 20A
Protected circuits:
MP3 125 Electrical system
ELE SYS - 21
