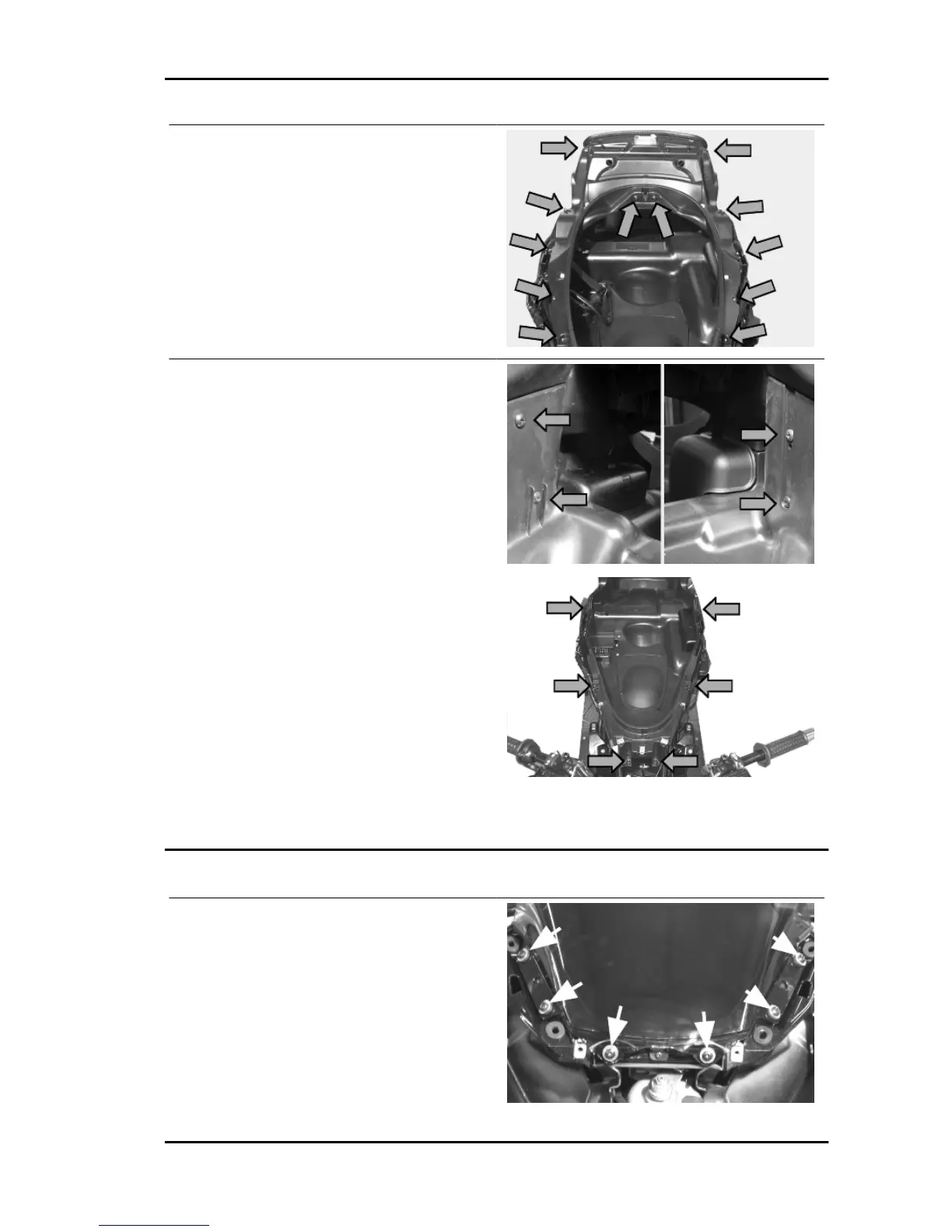

Remove the upper frame, unscrewing the ten up-
per screws, the two saddle closing screws and the
case light wiring.
Remove the rear case internal screws indicated in
the photograph, to detach the supporting plates of
the voltage regulator on one side and the saddle
opening switch on the other.
Remove the six upper screws.
Release the case latch.
Remove the case light front and rear switch con-
nections, the HV coil, the battery leads and the
fuse-box.
See also
Frame central cover
spoiler
Remove the shield central finish; then, screw the
six screws indicated in the figure.
MP3 125 Chassis
CHAS - 11
