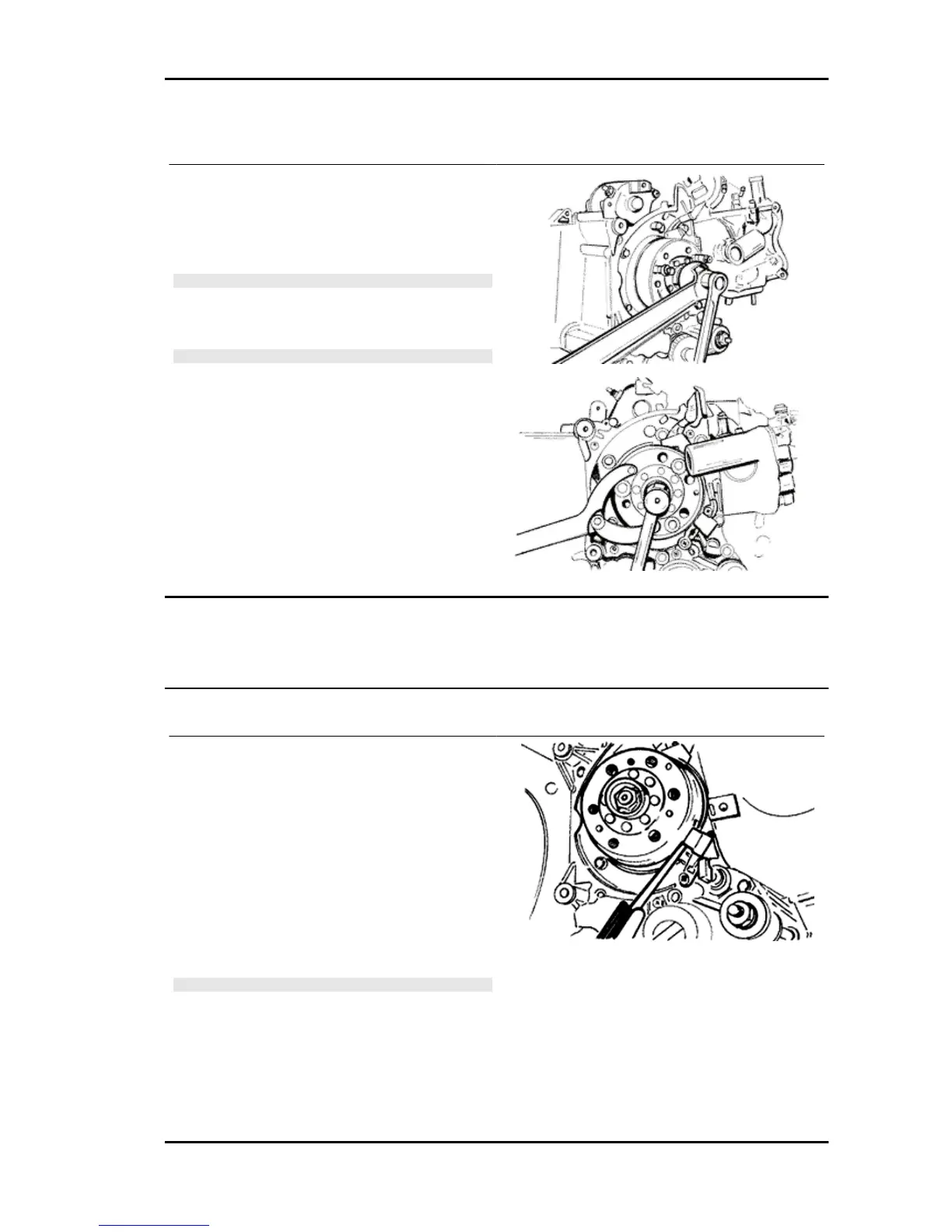

Removing the flywheel magneto
- Lock the rotation of the Flywheel with the calliper
spanner tool.
- Remove the nut.
- Take out the flywheel.
CAUTION
THE USE OF A CALLIPER SPANNER OTHER
THAN THE ONE SUPPLIED COULD DAMAGE
THE STATOR COILS
N.B.
THE FLYWHEEL OF THE 200 CM³ MODELS
FEATURES ENHANCED INERTIAL MASS.
Inspecting the flywheel components
- Check the integrity of the internal plastic parts of the flywheel and the Pick-Up control plate.
Refitting the flywheel magneto
- Fit the flywheel being careful to insert the key
properly.
- Lock the flywheel nut to the prescribed torque
- Check that the Pick-Up air gap is between 0.34
÷ 0.76 mm.
The air gap cannot be modified when assembling
the Pick-Up.
Different values result from deformations visible
on the Pick-Up support.
N.B.
A VARIATION IN THE AIR GAP DISTANCE
MODIFIES THE IGNITION SYSTEM IDLE
SPEED
Specific tooling
020565Y Flywheel lock calliper spanner
MP3 125 Engine
ENG - 25
