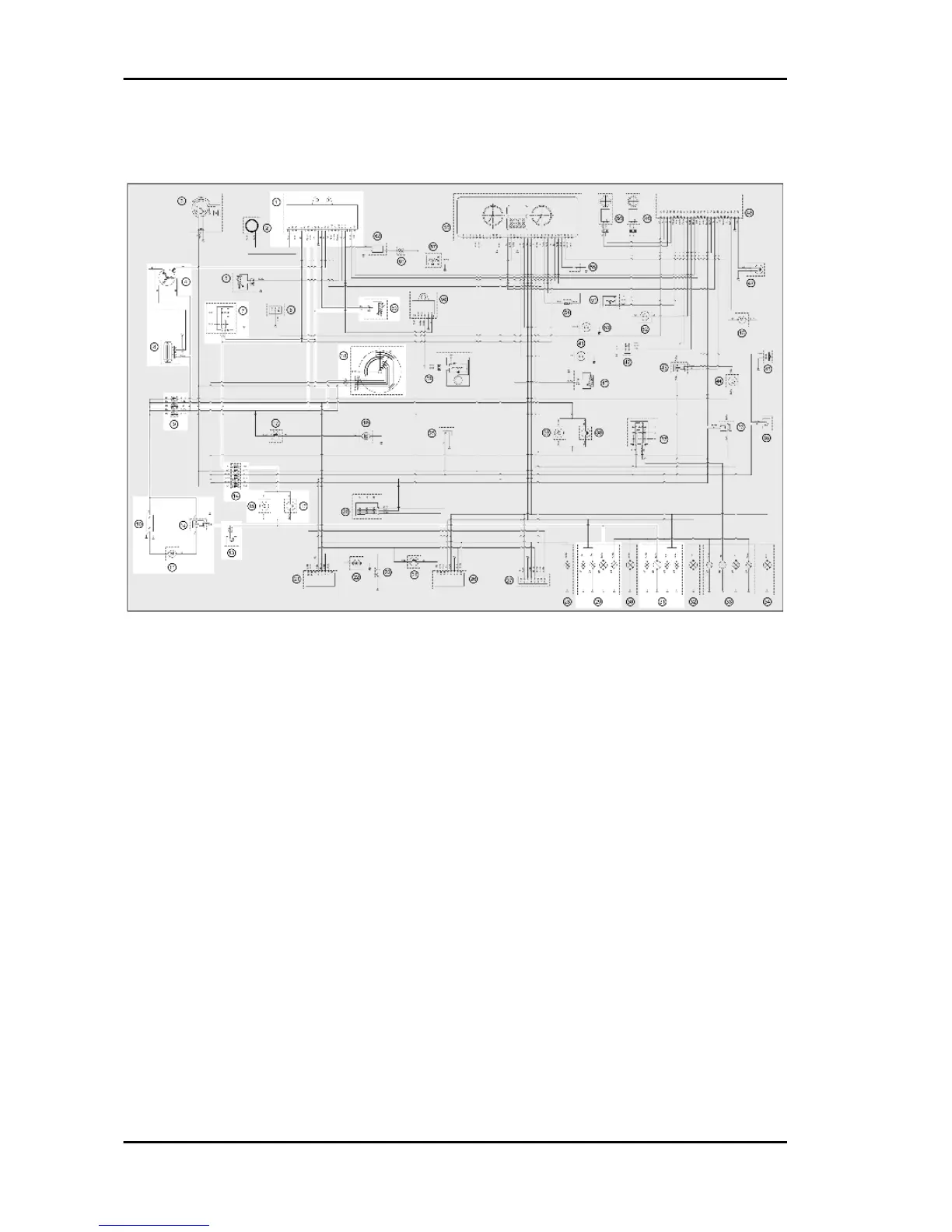

Battery recharge and starting
KEY
1. Electronic ignition device
4. Magneto flywheel Pick-up
7. Engine stop switch
8. Voltage regulator
9. Main fuses
10. Battery
11. Starter motor
12. Start up remote control switch
13. Starter button
14. Secondary fuses
15. Stop button on rear brake
16. Stop button on front brake
18. Key switch
29. Rear left turn indicator
A. Left turn indicator bulbs
B. Stop light bulb
C. Tail light bulb
Electrical system MP3 125
ELE SYS - 6
