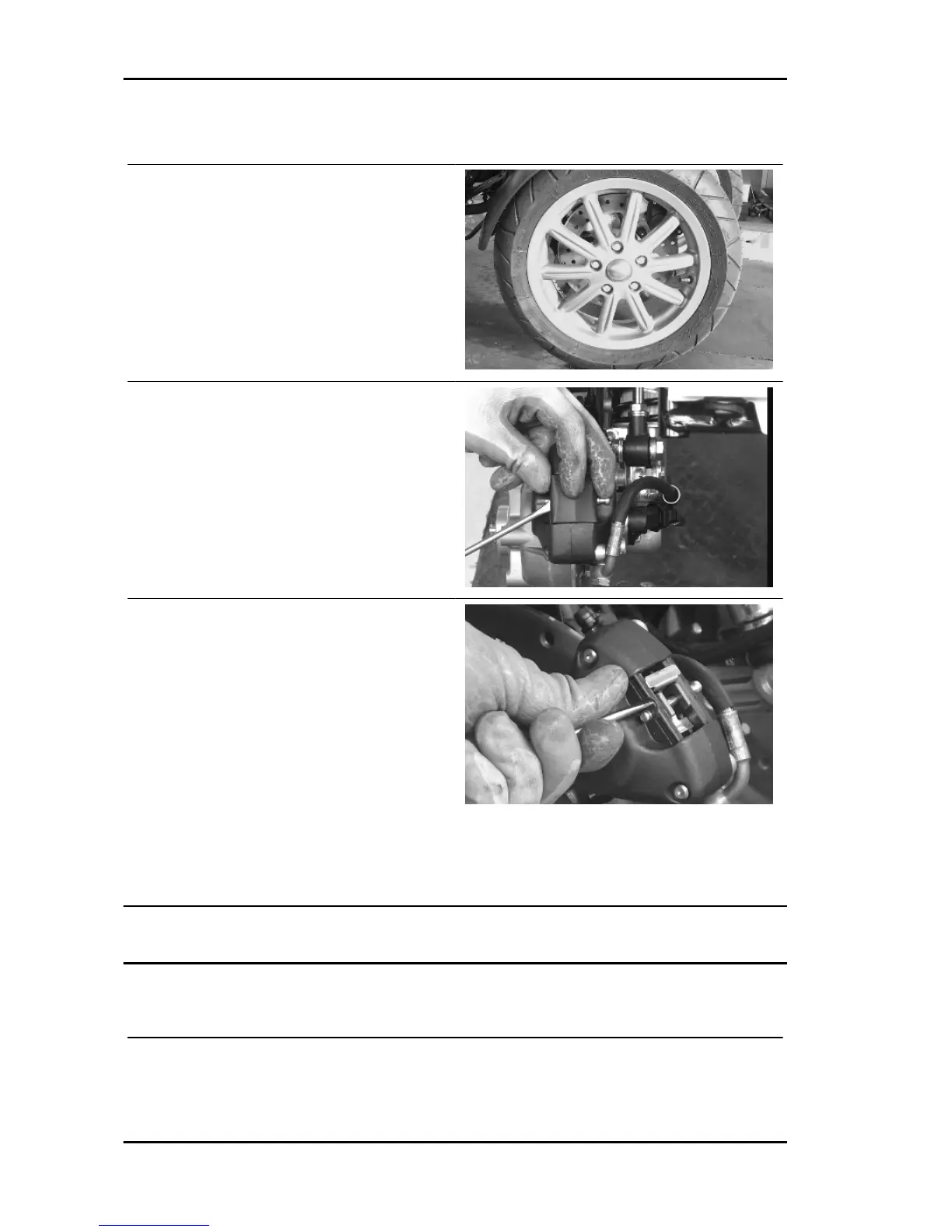

Removal
Rest the vehicle on its centre stand and use the
corresponding jack to lift the two front wheels; un-
screw the five Allen screws indicated in the figure
Remove the pad upper closing cap.
Remove the pad pin lock with a screwdriver, pay-
ing attention not to spoil the calliper surface treat-
ment.
Use a corresponding measuring punch to extract
the pad pin, if necessary move the brake pipes
manually to release the pin.
Then, remove the spring and the pads.
Fit a new pad kit following the procedure but in re-
verse order.
Locking torques (N*m)
Wheel fixing screw 20 ÷ 25
Front brake pump
Brake pipes
Front brake pipes removal
Braking system MP3 125
BRAK SYS - 4
