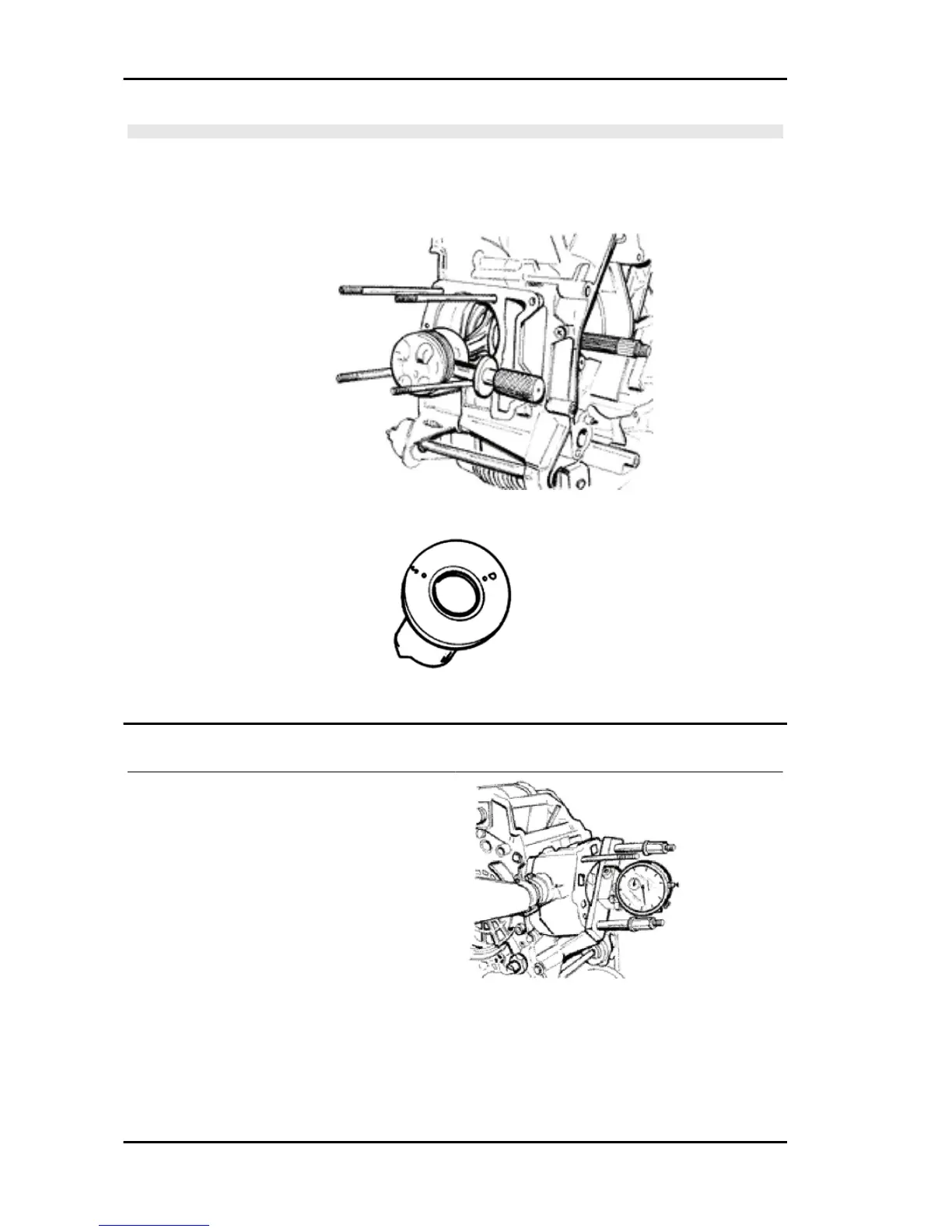

N.B.
THE TOOL FOR INSTALLING THE STOP RINGS MUST BE USED MANUALLY.
Specific tooling
020430Y Pin lock fitting tool
Choosing the gasket
- Provisionally fit the piston into the cylinder, with-
out any base gasket.
- Assemble a dial gauge on the specific tool
Support to check piston position 020428Y
- Set the dial gauge to zero placing the tool on a
contrasting surface. Keeping the zero position, as-
semble the tool on the cylinder and lock it with 2
supplied nuts as shown in the figure.
- Rotate the crankshaft until TDC (the inverted
point of the dial gauge rotation)
- Position the dial gauge on the piston as shown in
the figure and measure how much the piston pro-
trudes.
Engine MP3 125
ENG - 36
