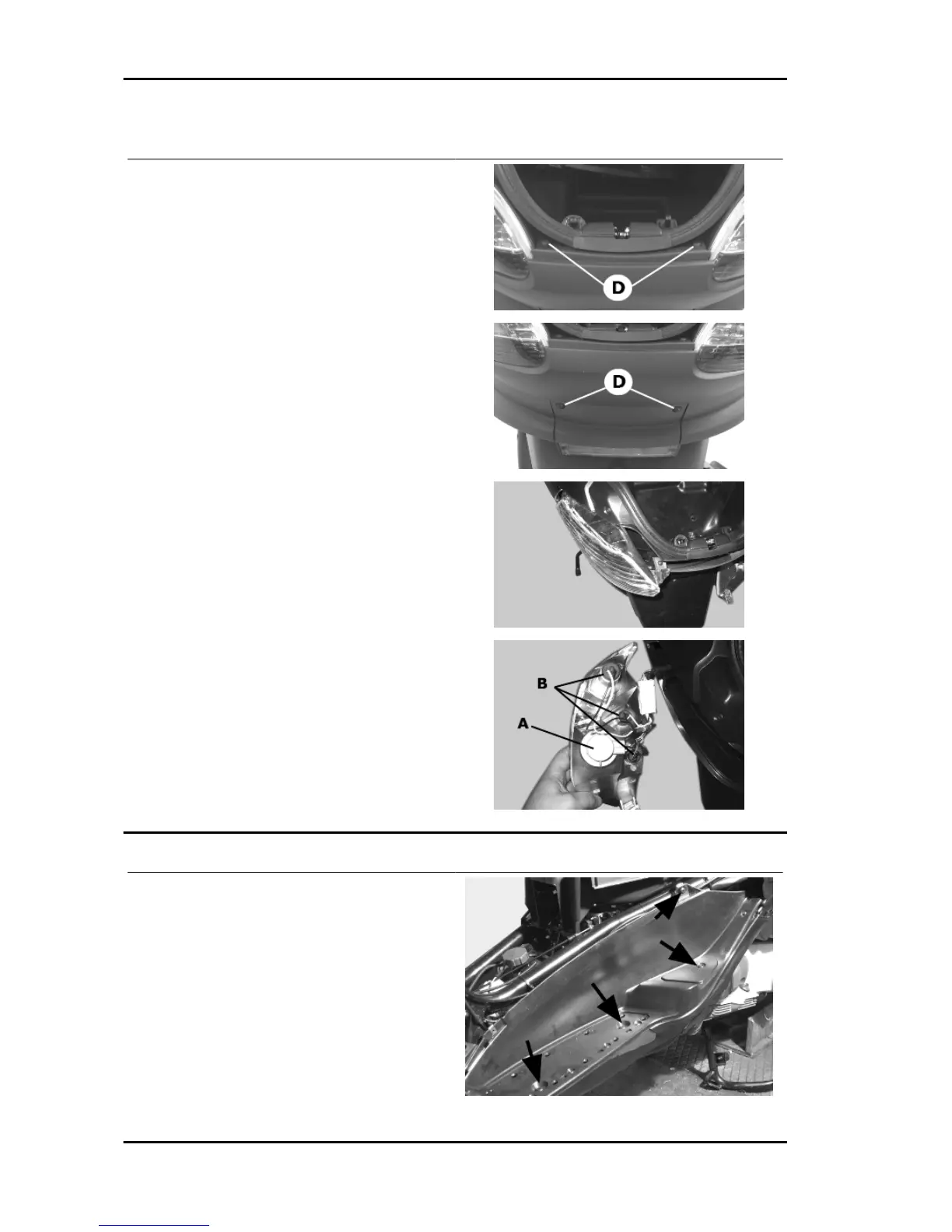

Taillight assy.
Open the rear case cover, remove the two screws
«D», and then, the other four fixing screws «D» to
pull out the headlight assembly from its fitting.
Follow this procedure to remove the bulbs:
Remove the snap-on bulbs «B».
Remove the bulbs «A» on the bayonet by turning
them 30° clockwise.
Footrest
Remove the central cover.
Remove the four screws and extract the half-foot-
rest.
Follow the same procedure for both half-footrests.
Release the fuse-box
