A. Left turn indicator bulbs
B. Stop light bulb
C. Tail light bulb
30. Licence plate lamp
31. Rear right turn indicator
A. Tail light bulb
B. Stop light bulb
C. Right turn indicator bulbs
32. Front left turn indicator
33. Headlight assembly
A. Tail light bulbs
B. Low-beam bulb
C. High-beam bulb
34. Front right turn indicator
36. Remote control headlight
37. Light switch
48. Parking electronic control unit
56. Instrument panel
Checks and inspections
This section is devoted to the checks on the electrical system components.
Immobiliser
The electric ignition system is fed with direct cur-
rent and is protected by an anti-theft immobilizer
integrated to the control unit.
The ignition system consists of:
- electronic control unit
- immobilizer aerial
- master and service keys with built-in transponder
- H.V. coil
- diagnosis led

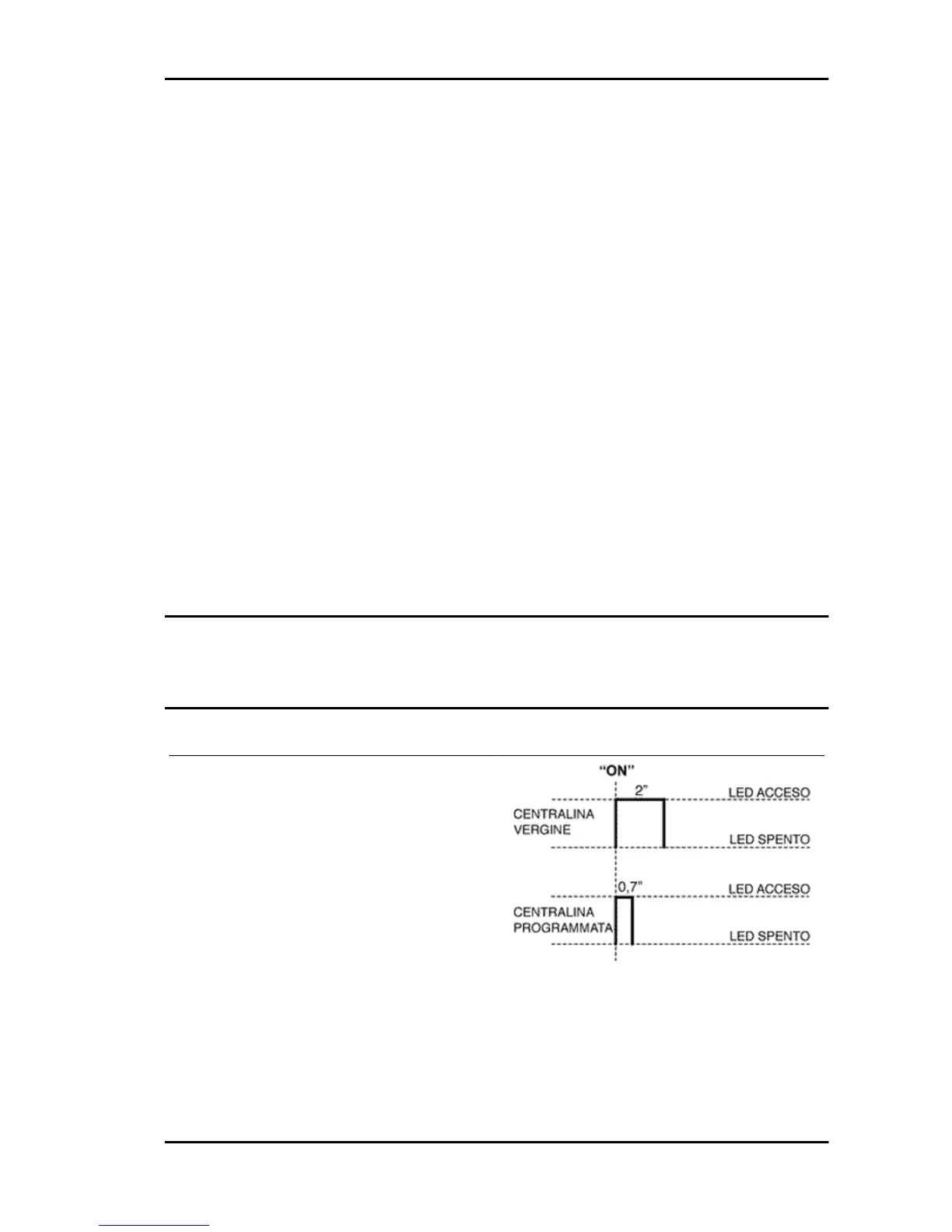

The diagnosis led also works as a blinking light to
deter theft. This function is activated every time the
key switch is turned to "OFF" and it remains active
48 hours so as not to damage the battery charging
process.
MP3 125 Electrical system
ELE SYS - 11
