- Refit the drive pulley assembly, the drive belt, the
sprocket wheel and the transmission cover, as de-
scribed in the "Transmissions" chapter.
- When testing the lubrication system, refer to
chapter "Crankcase and Crankshaft", regard-
ing lubrication of the crankshaft and connect-
ing rod
Locking torques (N*m)
Oil sump screws 10 ÷ 14
SAS valve
Inspecting the one-way valve
- Remove the SAS valve.
- Provisionally assemble the rubber coupling of the
SAS valve outlet to ensure tightness.

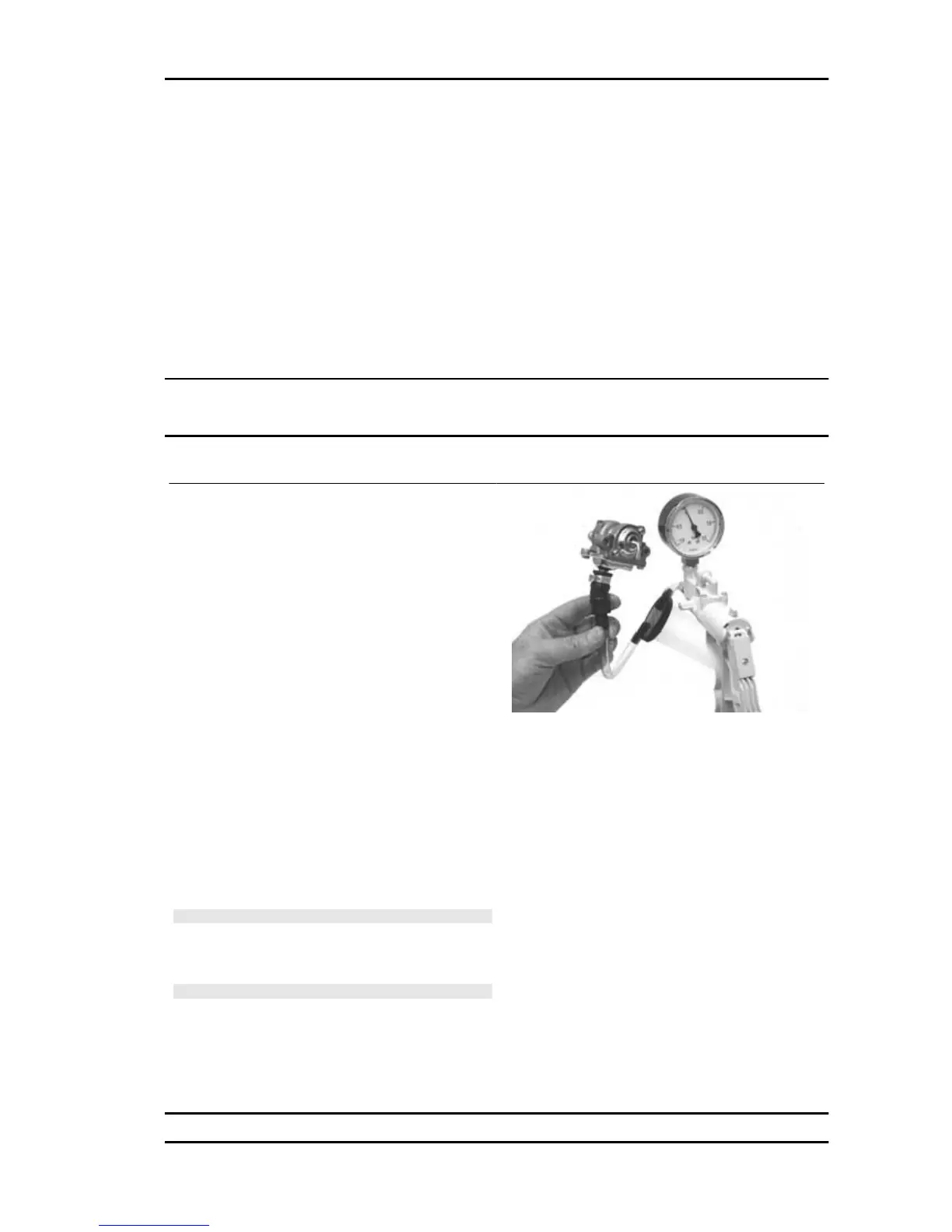

- Connect the MITYVAC vacuum pump to the rub-
ber coupling as shown in the photograph.
- Set the pump to the low-pressure position (VAC-
UUM).
- Operate the pump slowly.
- Check that the one way valve allows the air to
pass through causing a slight vibration.
- Switch the pump to pressure mode (PRES-
SURE).
- Operate the pump slowly and check if there is an
increase of pressure. A small leakage is consid-
ered to be normal.
If anomalies are detected, replace the pump.
N.B.
A MALFUNCTIONING ONE-WAY VALVE CAN
RESULT IN RUBBER COUPLING AND FILTER
OVERHEATING
N.B.
ABSENCE OF VIBRATION INDICATES INEFFI-
CIENT SEALING
Specific tooling
020329Y MityVac vacuum-operated pump
MP3 125 Engine
ENG - 63
