Name Torque in Nm
Fixing screws for tilt locking disc section 20 ÷ 25
Geared motor and Suspension locking system

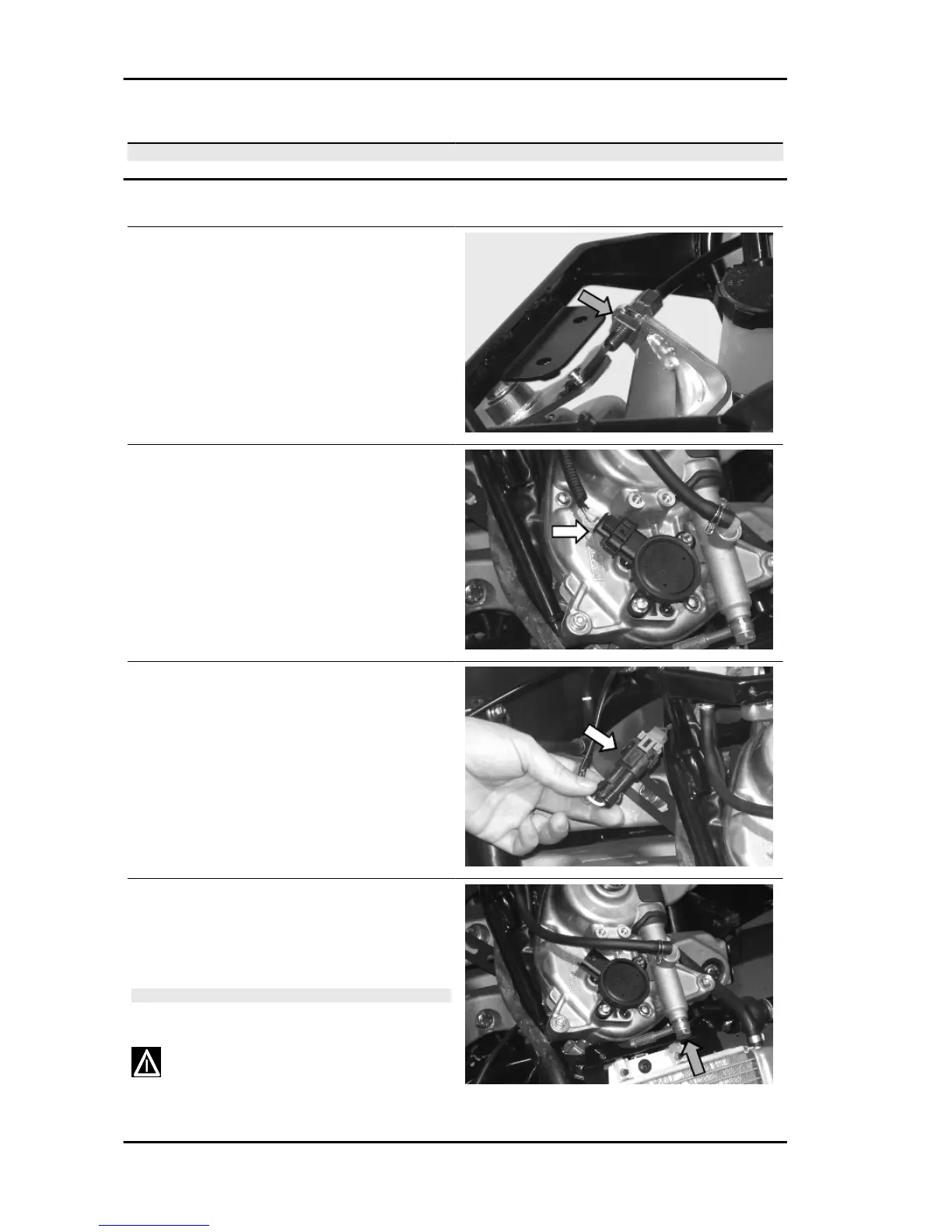

Before removing the geared motor:
Disable the suspension lock.
- Remove the front shield.
With the set nut indicated in the photograph, re-
move the tensioning cable of the suspension lock-
ing mechanical calliper.
Remove the electrical connection of the geared
motor position potentiometer.
Remove the electrical connection of the geared
motor electric motor.
Disconnect the hydraulic pipes between the pump
and the sliding stem locking clamps. Empty the
system and use a container to collect the brake
fluid.
CAUTION
ELIMINATE ANY REMAINING BRAKE FLUID
SPILLS.
WARNING: BRAKE FLUID IS HIGHLY POISON-
OUS. DO NOT INGEST OR SWALLOW. IF AC-
