Pioneer MEP-7000 Service Manual

11
MEP-7000
5
6 7 8
5
6 7 8
A
B
C
D
E
F
Regulator
D-OUT cables
USB cables
USB cables
Leave at least 10 mm.
Leave at least 5 mm.
Leave at least 10 mm.
D-OUT cables
SERVO cables
Cables for analog signals
Bind the cables for
analog signals and push
them downward so that
they are positioned as
far from the USB cables
as possible.
While dressing the cables,
be careful that the cables
for analog signals do not
touch the SLMB Assy.
Place the binder in
the upright position.
SLMB Assy
Leave at least 10 mm
between the D-OUT and
SERVO cables.
Leave at least 10 mm
between the D-OUT cables
and the regulator.

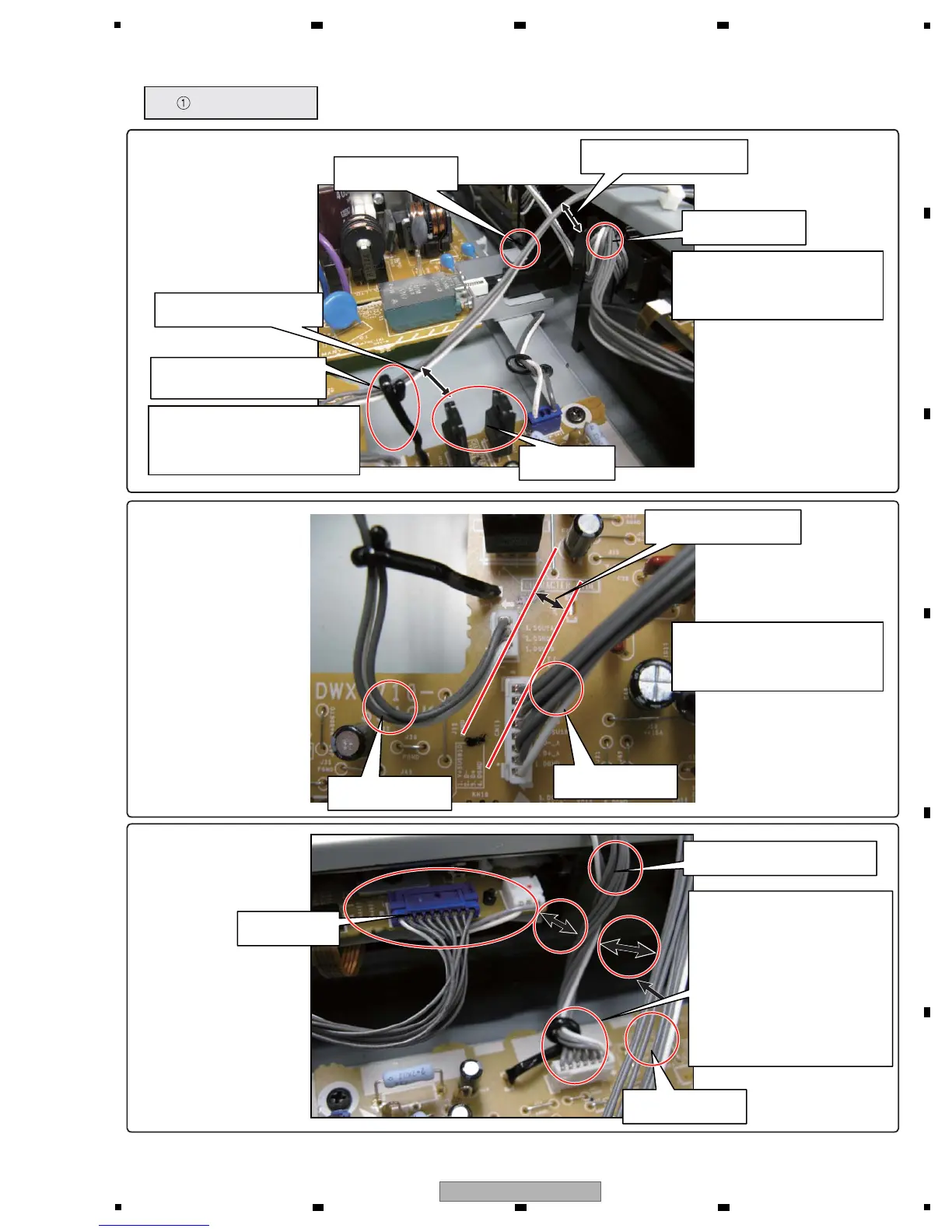

[4] Notes on Each Cable Dressing
Fig : Initial dressing
Leave at least 5 mm
between the D-OUT and
USB cables.

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
