Pioneer MEP-7000 Service Manual

12
MEP-7000
1
2 3 4
A
B
C
D
E
F
1
2 3 4

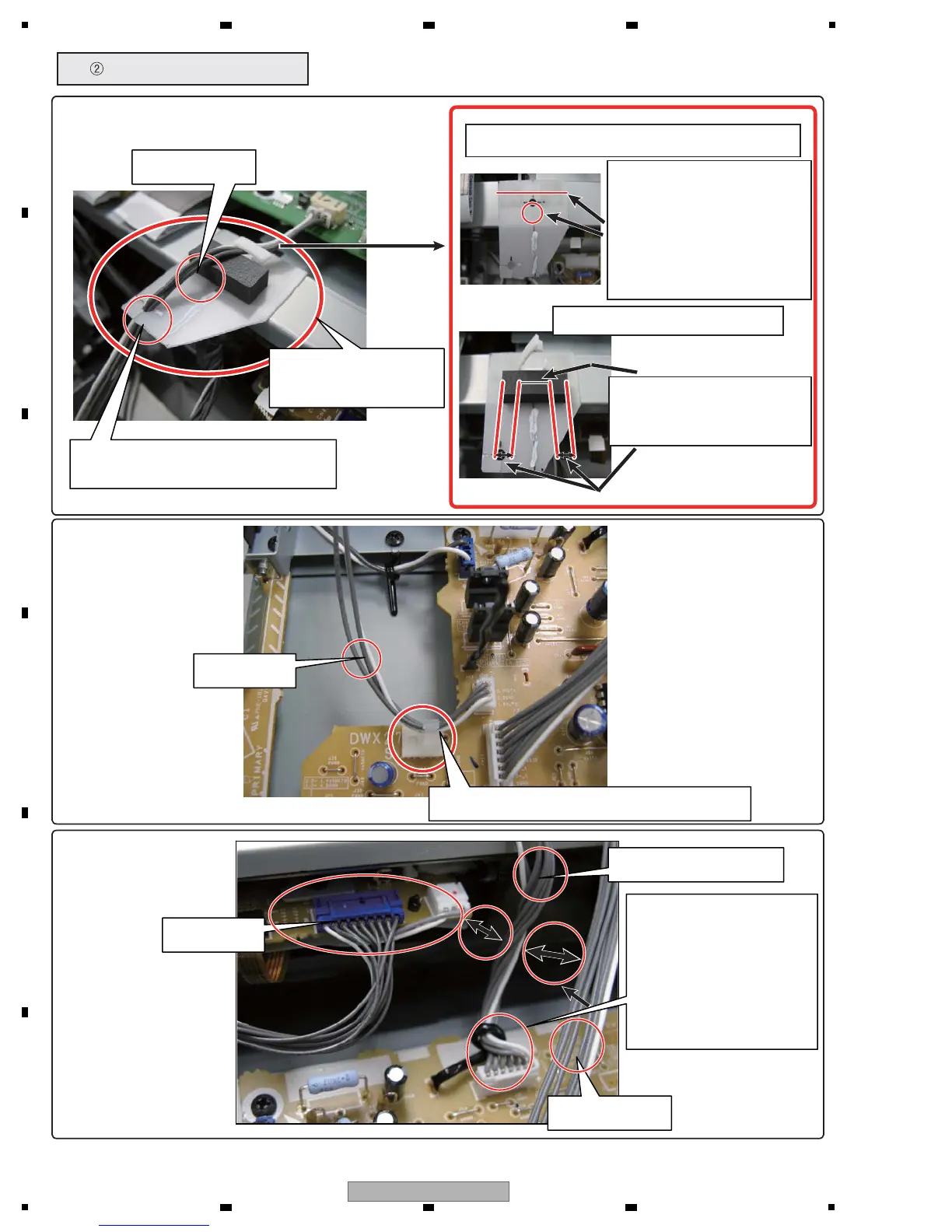

USB cables
Cables for analog signals
Push the cables for analog
signals downward so that
they are positioned as far
from the USB cables as
possible.
While dressing the cables,
be careful that the cables
for analog signals do not
touch the SLMB Assy.
SLMB Assy
D-OUT cables
Pass the D-OUT cables through the clamp.
Fig : Temporary cable dressing
How to attach the Shield Sheet and FFC guard
Add the Shield Sheet
(DEC3151) and
FFC guard (DEC2586).
Pass the D-OUT cables through
the slit of the Shield Sheet
1. Align the edge of the Shield
Sheet with that of the PCB
STAY Assy and the hole of the
Shield Sheet with that for the
locking mini clamp on the PCB
STAY Assy. Then paste the
Shield Sheet to the PCB STAY
Assy.
2. Attach the locking mini clamp.
D-OUT cables
3. Place the FFC guard in
contact with the clamp and
so that the clamp comes to
the middle of the FFC guard.

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
