Pioneer MEP-7000 Service Manual

111
MEP-7000
5
6 7 8
5
6 7 8
A
B
C
D
E
F
7
8
9
7
7
7
7
9
NG OK
4
6
5
4
5

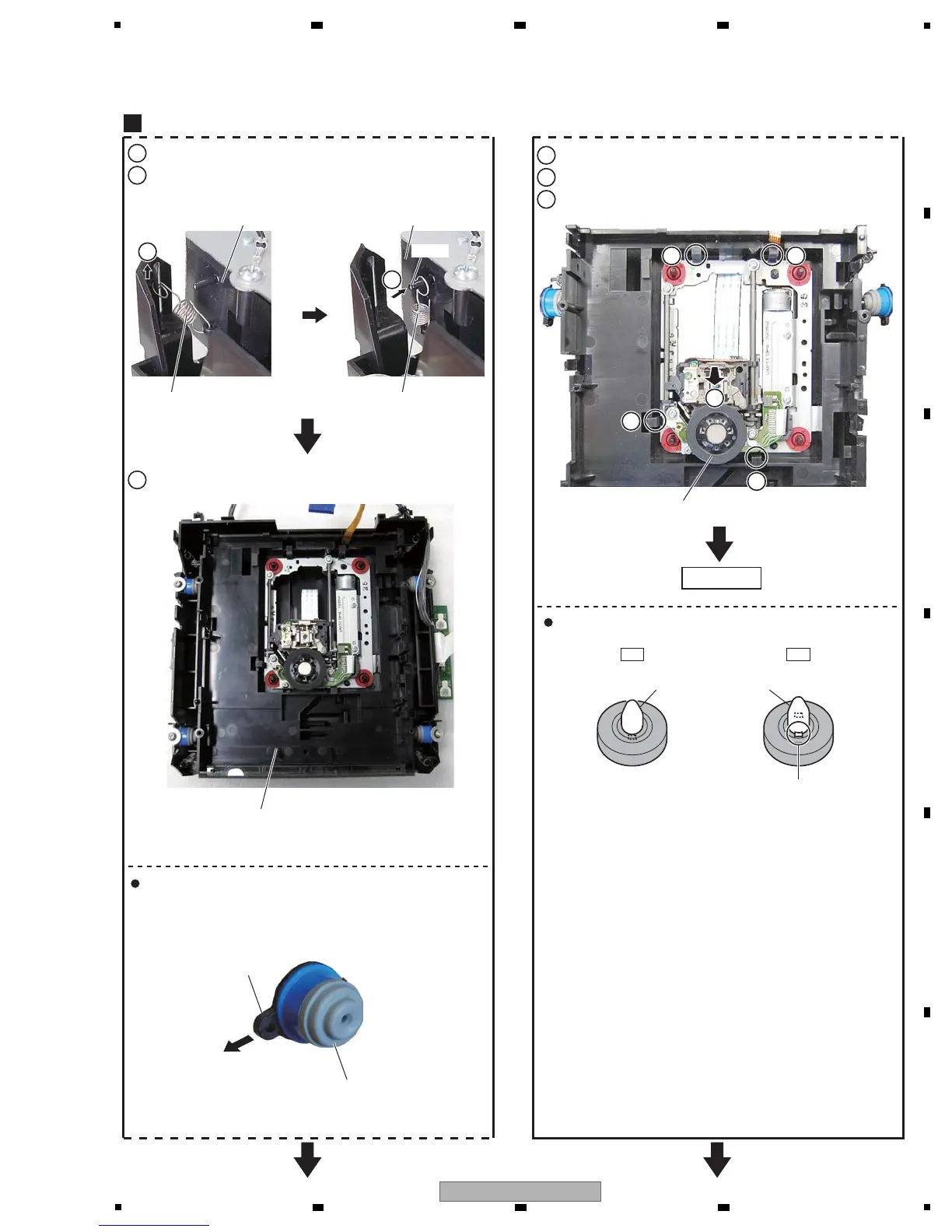

Unhook the four hooks.
Disconnect the some flexible cables at need.
Remove the Traverse Assy 03-S.
Traverse Assy 03-S.
Note on the float rubber installation
Pole of the float base 04 Assy
Hook ×2
Exchange
Traverse Assy 03-S
4
Unhook the four float springs G5.
Hook the four float springs G5 to the four hooks of the float
base 04 Assy.
Remove the Float base Section.
Float Base Section
Float spring G5
Float base 04 Assy
Hook
Float spring G5
Float base 04 Assy
Damper
To the front
Projection (large)
When attaching the dampers, place them so that their
projections (large) face front.
Direction of the dampers when attaching them
