Piper TURBO ARROW III

To Next Page

To Previous Page

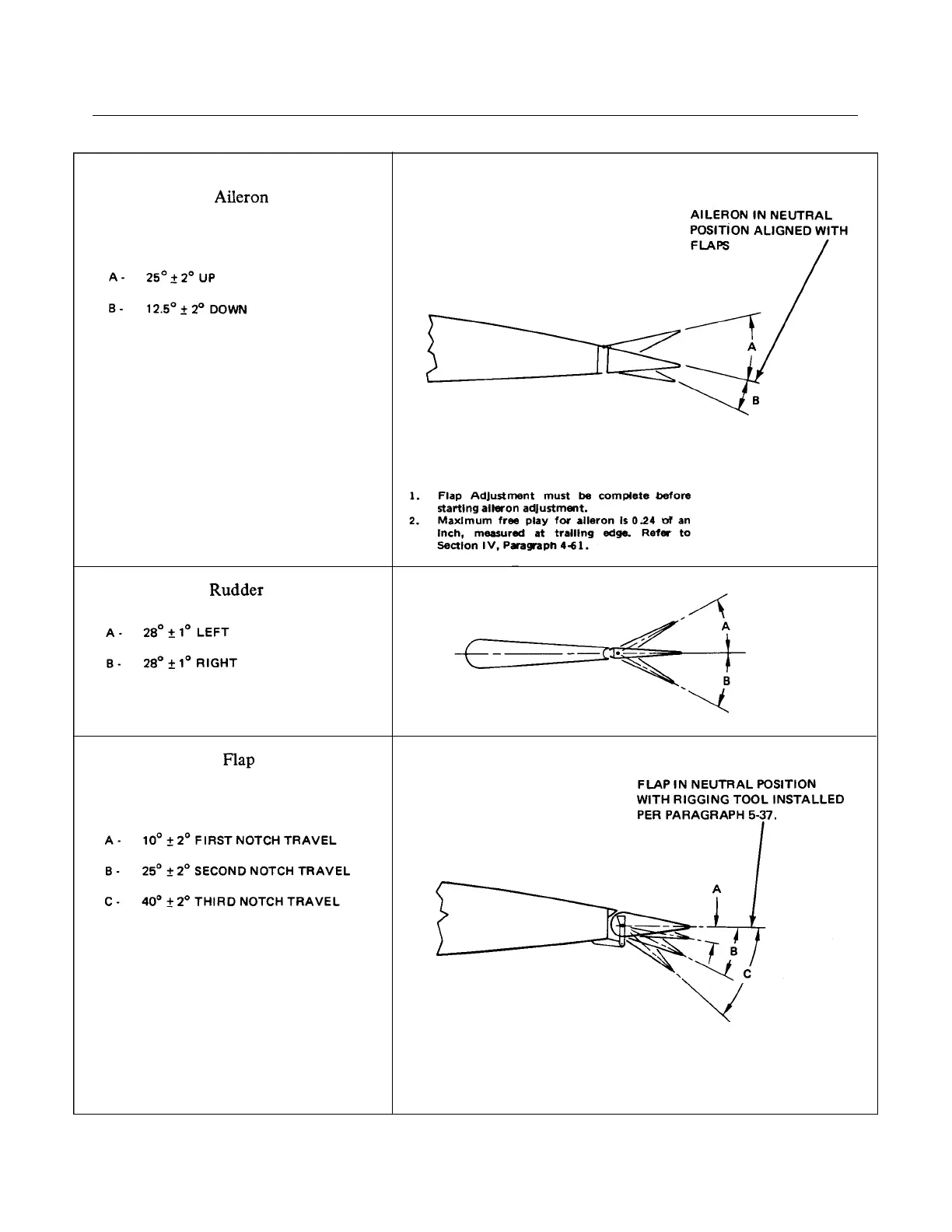

TABLE V-I CONTROL SURFACE TRAVEL AND CABLE TENSION (cont.)

Issued: 12/15/76

1F9

* CHEROKEE ARROW III SERVICE MANUAL

SURFACE CONTROLS
