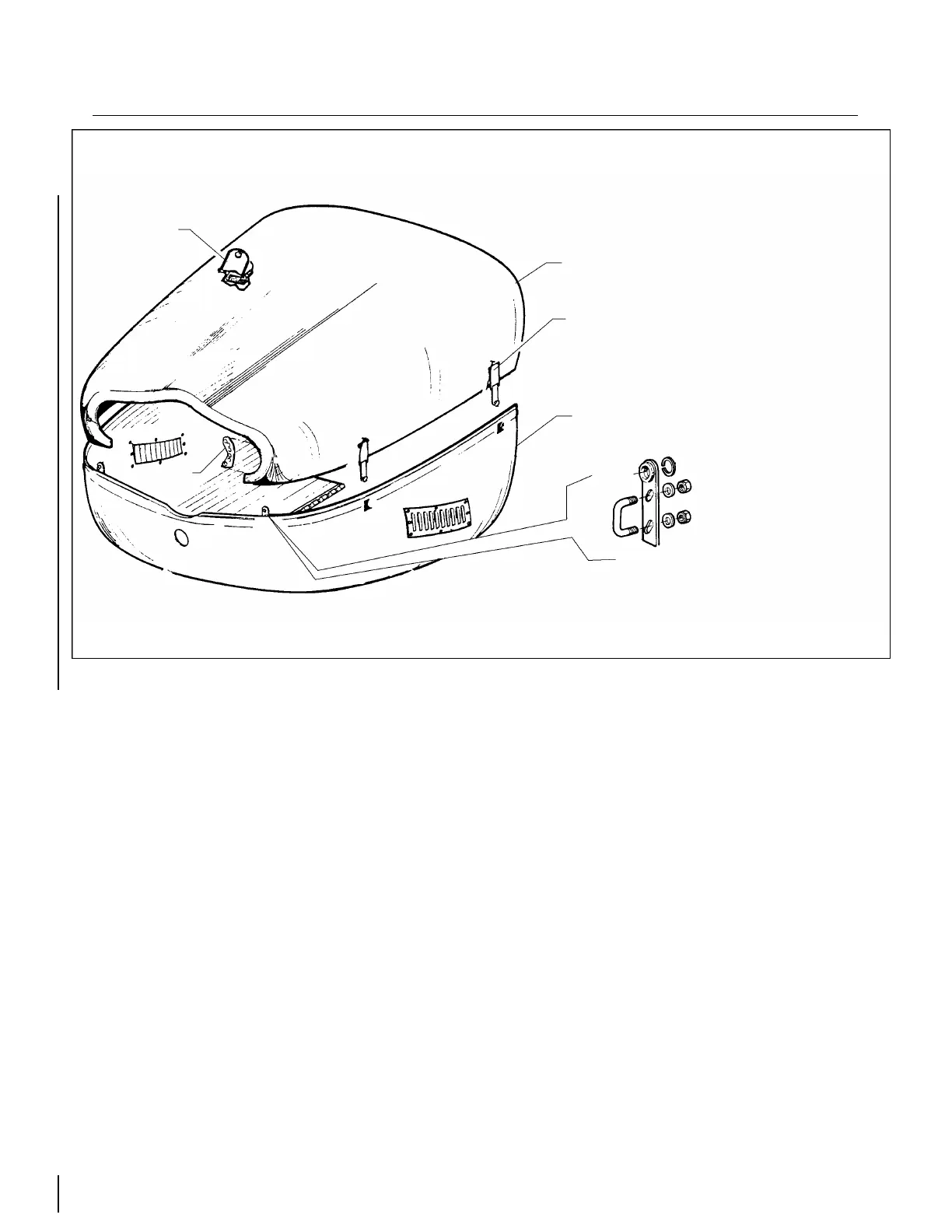

Figure 8A-3a. Engine Cowling Installation
8A-14. REMOVAL OF ENGINE.
a. Turn off all electrical switches in the cockpit and then disconnect the battery ground wire at the
battery.
b. Move the fuel selector lever in the cockpit to OFF.
c. Remove the engine cowling by the following procedure:
1. Release the cowl fasteners, two on each side of the cowl.
2. Life the aft end of the cowl and then slide it forward to release the two stud type front fasteners.
Remove the top cowl.
3. Disconnect the landing light lead at the quick disconnect at the left rear side of the bottom cowl.
4. Disconnect the nose gear door rods by removing the nuts, washers, and bolts.
5. Remove the screws securing the bottom cowl at its aft end. Remove the bottom cowl.
d. Remove the propeller. (Refer to Paragraph 8A-5.)
e. Disconnect the starter positive and ground leads at the starter and their attachment clamps.
f. Disconnect the governor control cable at the governor and cable attachment clamps.
g. Disconnect the heater hose at the muffler.
h. Disconnect the throttle and mixture cables at the injector. (The injector may be removed if desired.)
i. Remove the air filter box by removing the bolts that secure the box to its attachment clamps. The
cover may remain attached to the alternate air door control cable.
j. Disconnect the fuel pump supply line at the left side of the pump. Disconnect the pump vent line.
Interim Revision: 2/21/95
2D2
CHEROKEE ARROW III SERVICE MANUAL
POWER PLANT - LYCOMING
1. UPPER COWL ASSEMBLY
2. LOWER COWL ASSEMBLY
3. OIL FILLER DOOR ASSEMBLY
4. FASTENER ASSEMBLY
5. PIN PLATE ASSEMBLY
6. PLATE ASSEMBLY, BUSHING,
RETAINING RING, WASHERS, NUTS
1
2
3
4
5
6
To Next Page
