Piper TURBO ARROW III User Manual

– CAUTION –
Do not lubricate control wheel shaft or bushing. Clean only using alcohol
or other uitable solvent.
COMPONENT LUBRICANT FREQUENCY
1. AILERON HINGE PINS MIL-L-7870 100 HRS
2. FLAP HINGE BEARINGS MIL-L-7870 100 HRS
3. STABILTOR HINGE PINS MIL-L-7870 100 HRS
4. RUDDER HINGE BEARINGS MIL-L-7870 100 HRS
5. CONTROL CABLE PULLEYS MIL-L-7870 100 HRS
6. TRIM CONTROL WHEEL MIL-L-7870 100 HRS
7. O-RING, CONTROL SHAFT BUSHING PARKER O-RING*
LUBRICANT AS REQUIRED
8. TEE BAR PIVOT POINT MIL-L-7870 100 HRS
9. CONTROL COLUMN CHAIN MIL-L-7870 100 HRS
10. CONTROL COLUMN FLEX JOINTS AND SPROCKET MIL-L-7870 100 HRS
11. STABILATOR CONTROL MIL-L-7870 100 HRS

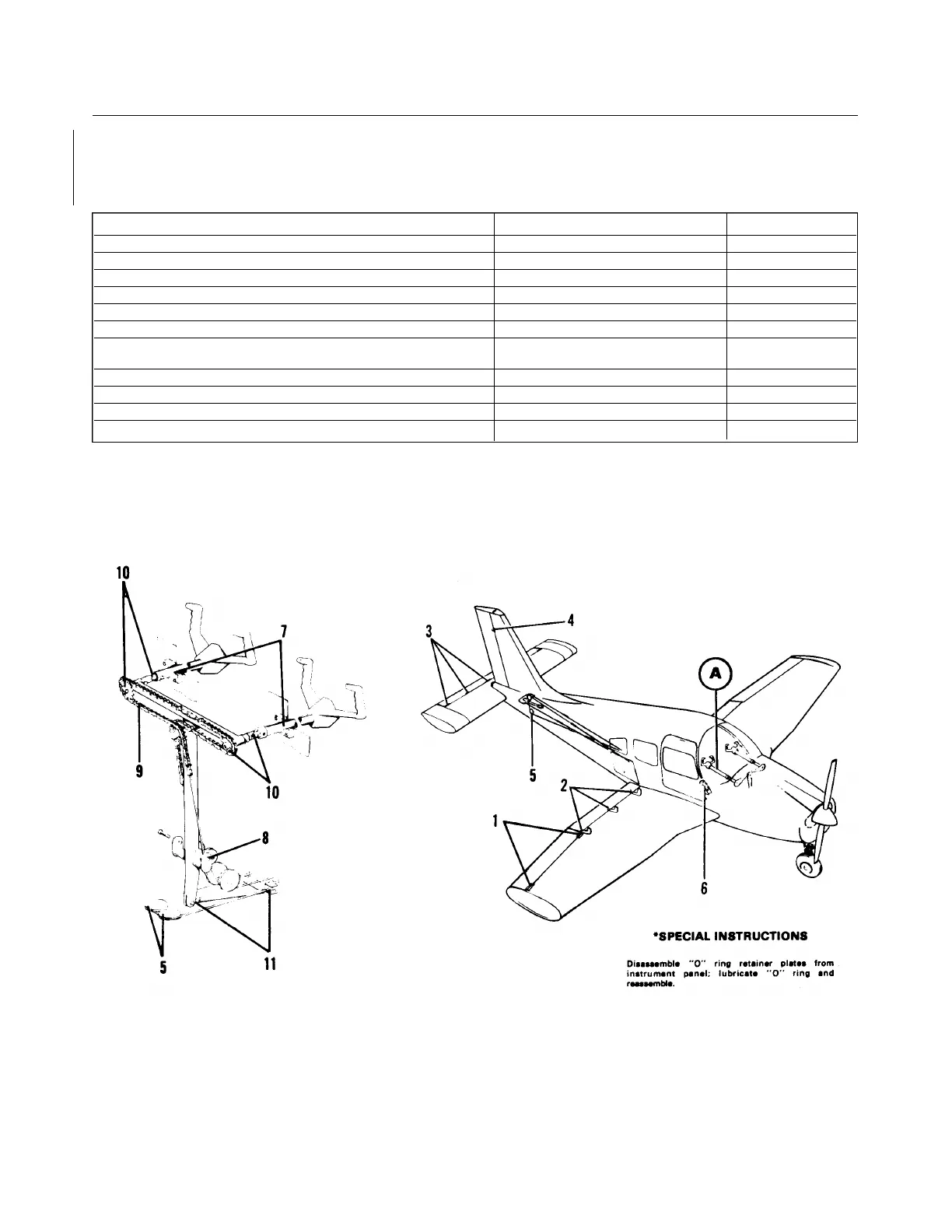

Figure 2-15. Lubrication Chart (Control system)
Interim Revision: July 30, 1986
1C16
*CHEROKEE ARROW III SERVICE MANUAL
HANDLING AND SERVICING

Piper TURBO ARROW III Specifications

General

Manufacturer	Piper Aircraft
Model	Turbo Arrow III
Horsepower	200 hp
Max Takeoff Weight	2, 900 lbs
Fuel Capacity	72 gallons
Service Ceiling	20, 000 ft
Seating Capacity	4
Type	Single-engine piston
Propeller	Constant-speed
Landing Distance	1, 200 ft
