COMPONENT LUBRICANT FREQUENCY
1. DIAPHRAGM SHAFT AND BUSHING MIL-L-7870 ABOVE 20
0
F
MIL-C-21567 BELOW 20
0
F 100 HRS.
2. BACK-UP EXTENDER LNKS AND CONTROL ARM
PIVOT POINTS MIL-L-7870 100 HRS
3. BACK-UP EXTENDER SPRING ATTACHMENT POINTS MIL-L-7870 100 HRS
4. ACTUATING ROD CONTACT POINTS AERO LUBRIPLATE 100 HRS\
OR MAG-1

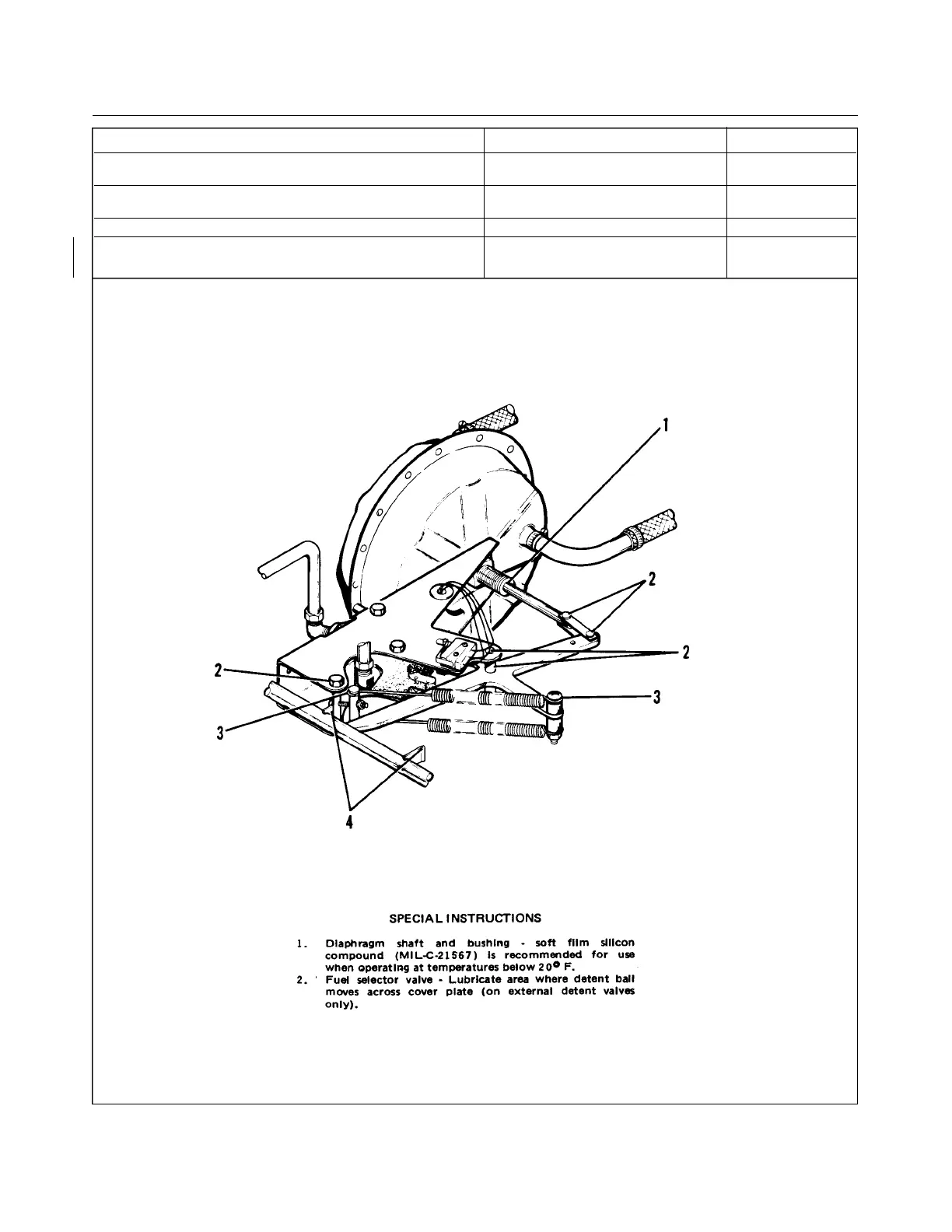

Figure 2-22. Lubrication Chart (Back-Up Extender)
Revised: 7/13/81
1C23
*CHEROKEE ARROW III SERVICE MANUAL
