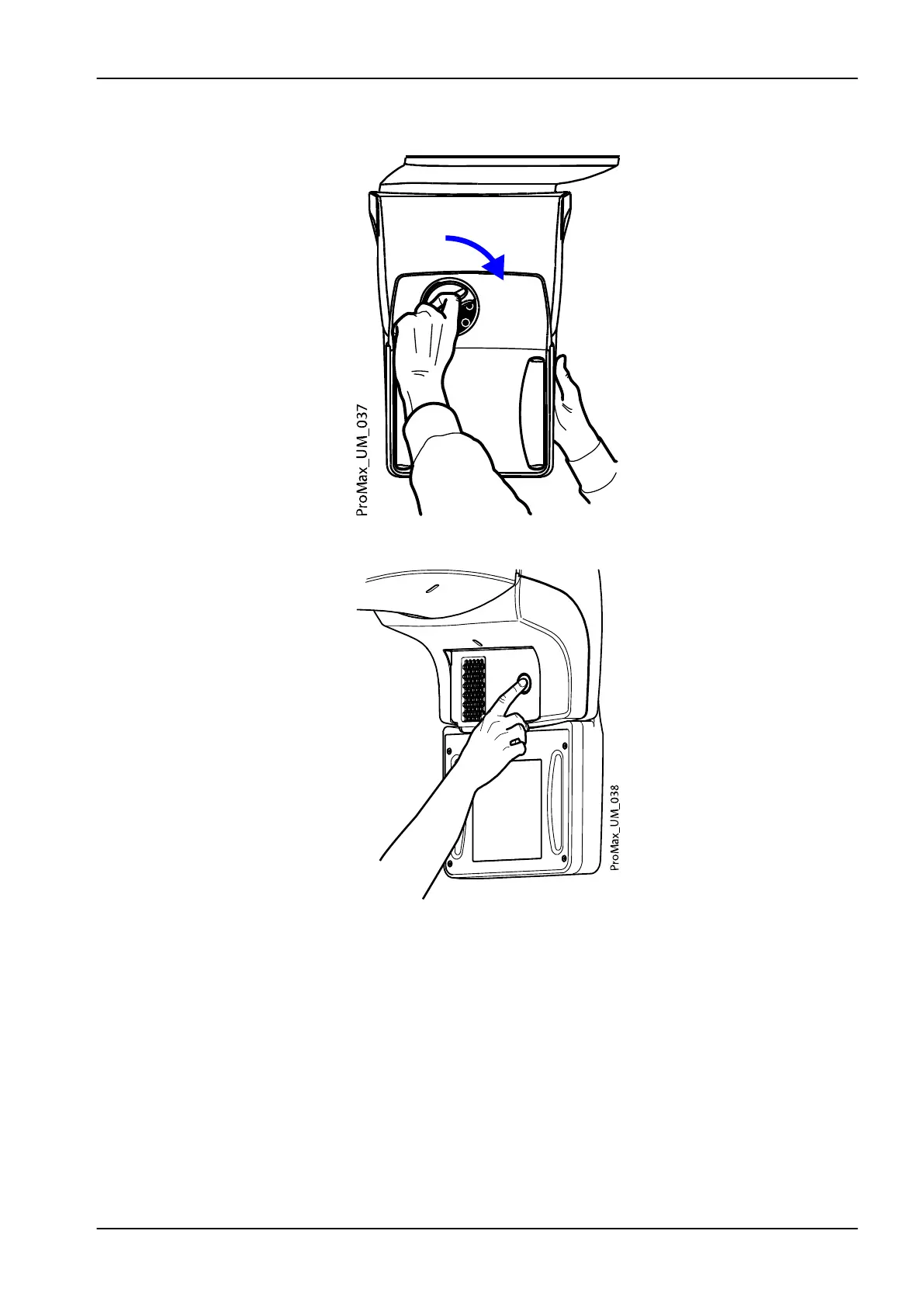

2. Turn the locking knob over the fastening mechanism. This will secure the
sensor in position.
3. Push in the C-arm electrical connector button on the other side. This will
make the electrical connection between the sensor and C-arm.
8.1.1.2 Detaching sensor from C-arm
NOTE
Do not remove the sensor during imaging process.
8 3D patient exposure
User's manual Planmeca ProMax 25
