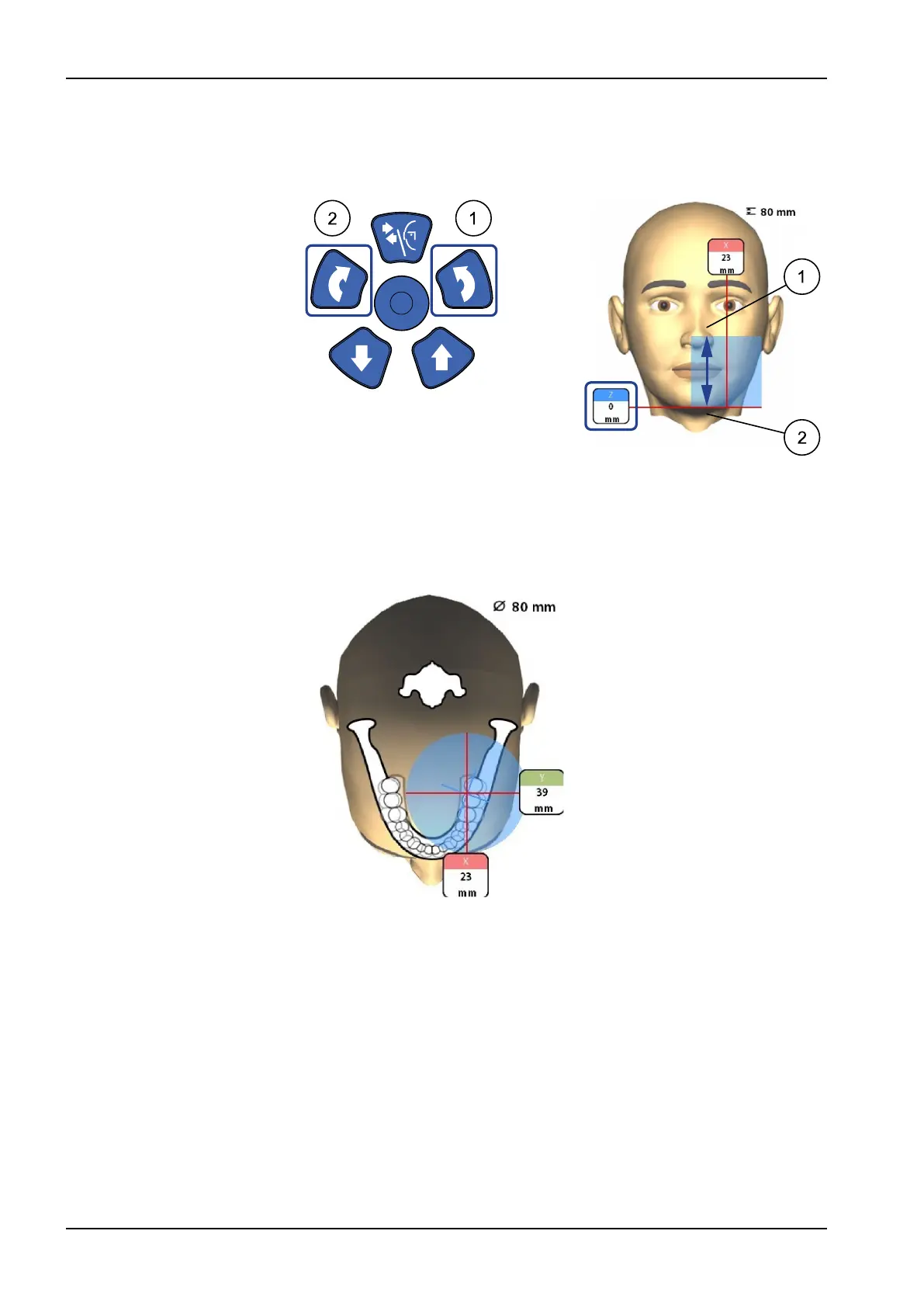

Check that the image volume is positioned at the correct height for your
patient. If you need to move the image volume up or down, press the image
volume up (1) or down (2) button. The volume bottom light (Z laser) moves
accordingly on your patient’s face.
8.8.2 Moving image volume horizontally (X and Y lasers)
The volume centre lights cross in the middle of the image volume. With the
patient positioned in the unit, the volume centre lights form red lines on the
front (front light = X laser) and on the left side (side light = Y laser) of your
patient’s head.
Check that the image volume is positioned correctly for your patient. If you
need to adjust the volume position, proceed as follows.
8.8.2.1 Front light (X laser)
If you need to move the image volume to your left or right:
8 3D patient exposure
44 Planmeca ProMax User's manual
