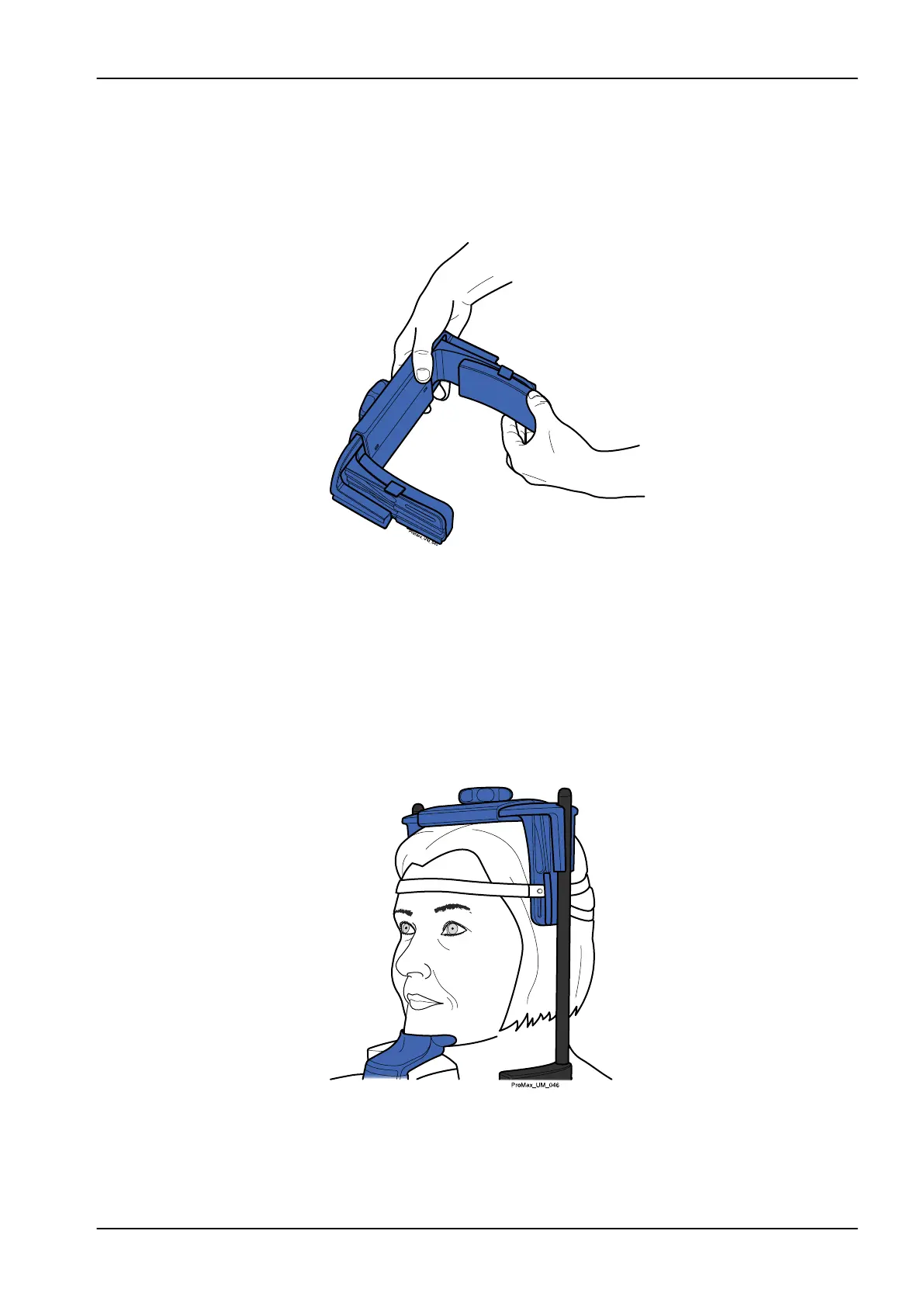

You can use temple pads if you take exposures of children, or patients with
small heads. Slide the temple pads onto the adjustable head support as
shown. Ensure that you slide the temple pads as far up as they will go.
NOTE
Use temple pads on both sides (not on one side only).
You can use fastening straps for additional head support if needed. Attach
one strap in front of the forehead and two at the back of the head as shown.
NOTE
Be careful when you handle the straps. Do not let the straps hit the patient in
the eye or face.
NOTE
Do not overstretch the straps. The straps lose their elasticity if you pull them
more than 50 mm (2 in.). Straps with a free length (i.e. when they are not
stretched) of over 255 mm (10 in.) do not support the patient’s head firmly.
8 3D patient exposure
User's manual Planmeca ProMax 29
