DC Power Jack
Connect the power cable to this power jack; see powering the Single Slot Cradle Device on
paragraph 12.6.
USB Port
The USB port is full-speed (v2.0). Using the USB cable, you can connect the base to a USB-
compliant device to facilitate USB communication to and from the terminal, see USB
Communication on paragraph 10.4.
Ethernet Port (Single Ethernet cradle only)
Using an Ethernet cable, you can connect the Single Ethernet cradle to an Ethernet-compliant
device to facilitate Ethernet communication to and from the terminal. This equipment is for indoor
use only. The communication wiring is limited to the inside of a building.
12.6
Powering the Single Slot Cradle or Single Ethernet Cradle
Device
The terminal requires DC 5V input for communication and battery charging; the power adapter on
the power cable converts the voltage from the power source to DC 5V. Only power adapter cables
from Pointmobile convert the voltage appropriately.
The same power cable that ships with each terminal can be used to power the base. This cable
contains a plug adapter for each geography (US, UK, EU, etc.).

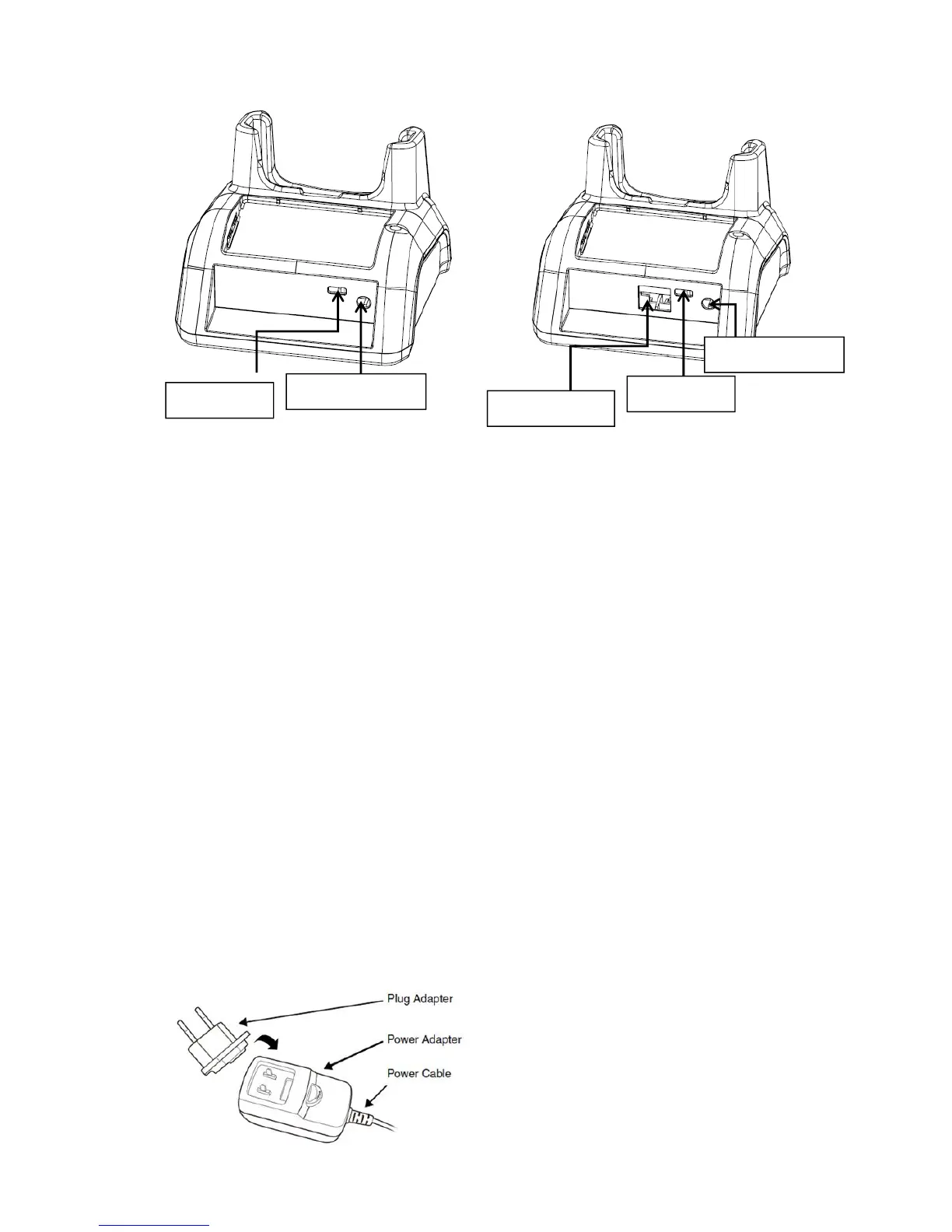

USB port
DC power jack
Ethernet port
USB port
DC power jack
