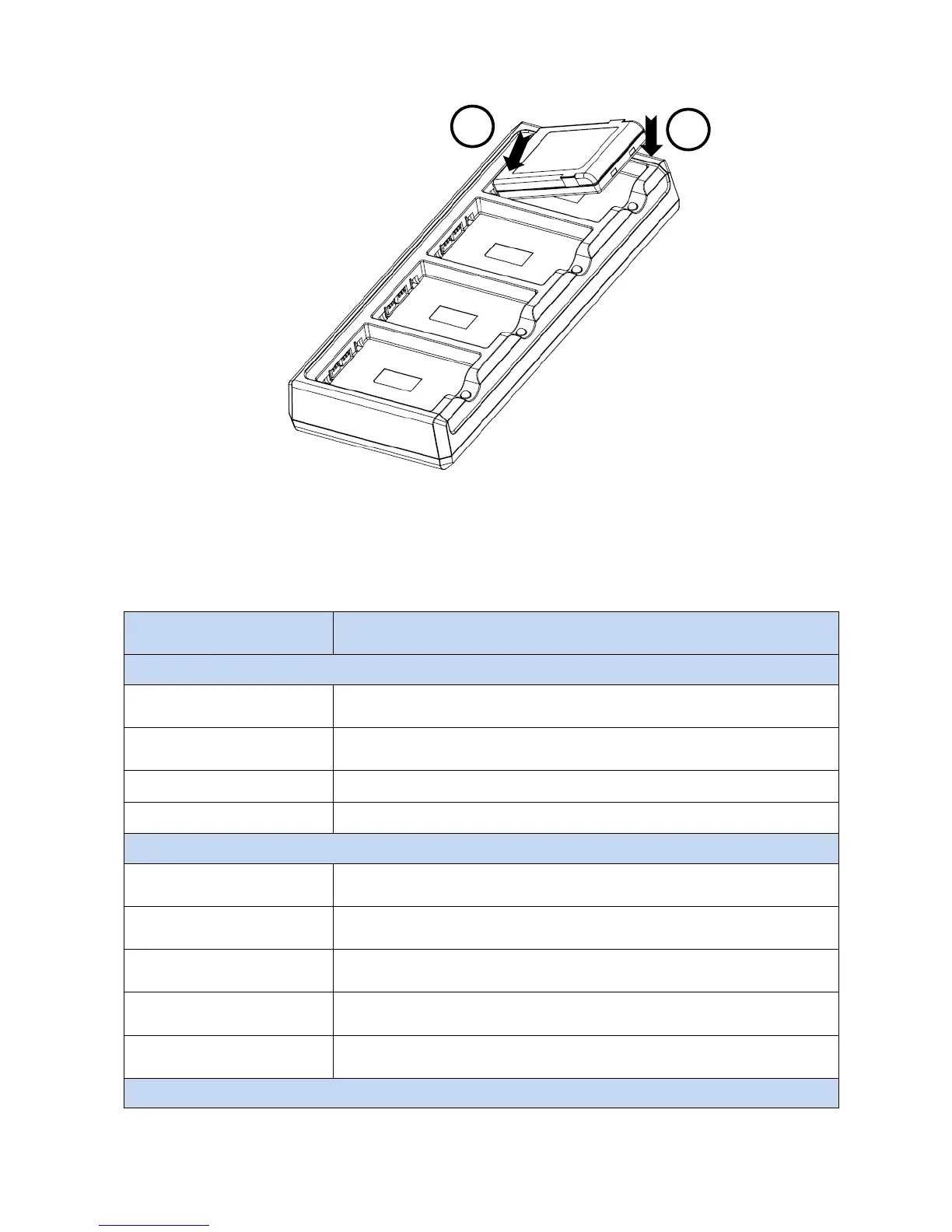

Technical Specificatio
ns for
4-slot battery charger
Model
4SBC (4- Slot Battery Charger)
Structural
Dimensions
256mm(L) x 105mm(W) x 37mm(H)
Weight
4- Slot Battery Charger -
434g
Material
Polycarbonate
Color
Black
Environmental
Operating Temperature
-20° to 55°C
Storage Temperature
-25° to +70°C
Charging Temperature
0~45
℃
(±3
℃
)
Electrical Static Discharge
Air:
Direct:
± 15kV
± 8 kV
Humidity
95% humidity (non-condensing)
Power Supply
1
2
77
79
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
5
About the PM60 Handy Terminal
6
Accessories
6
2 Safety Regulations Hw
7
General Safety Rules
7
Power Supply
8
Laser Safety
9
LED Safety
10
FCC/EU RF Exposure
10
CB Scheme
10
FCC Part 15 Regulation
10
Radio Compliance
11
Wwan
11
WEEE Compliance
12
3 Getting Started
12
Install the Battery
12
Charge the Batteries
14
LED Indicators
15
Guidelines for Battery Pack Use and Disposal
15
Boot the Terminal and Access the Home Screen
18
The Home Screen
18
Status Bar
19
Notification Panel
19
Quick Settings
21
Search Bar
22
Turning Power On/Off
23
Using the Stylus
24
Using File Explorer
24
4 Get to Know Your Device
25
Feature of Your Device
25
PM60 Handy Terminal
25
Front Panel Layout
26
Led Indicator
27
Touch Screen Display
27
Display
28
Using Screen Protectors
28
Installing Your Screen Protector
28
Back Panel Layout
30
Left Side Panel Layout
31
Installing Memory Cards
31
Right Side Panel Layout
32
Top Panel Layout
32
Bottom Panel Layout
33
Peripherals and Accessories
34
Microusb Cable
34
Li-Ion Battery Packs
35
Battery Power
35
Main Battery Pack
35
Managing Main Battery Power
36
Resetting the Terminal
37
Suspend Mode
38
Memory Allocation
38
Care and Cleaning of the Products
38
PM60 Technical Specifications
38
5 Using the Keypad
40
Numeric Keypad Layout
40
Navigation Keys
40
Basic Keys
40
Alpha/Numeric Modes
41
Alpha Indicators on the Numeric Keys
41
BLUE Key Combinations
41
Program Buttons
42
6 Using the Image Engine
43
Overview
43
Available Image Engines
44
Depth of Field
44
Supported Bar Code Symbologies
45
Activating the Engine
45
Using Demos
45
Decoding
46
To Decode a Bar Code
46
Sample Bar Codes
46
Omni-Directional Scanning Positions
46
Capturing Images (IT5300SR Engine Only)
47
7 Using the Laser Engine
47
Overview
47
Available Laser Engines
47
Depth of Field
47
Supported Bar Code Symbologies
48
Activating the Engine
48
Using Demos
48
Decoding a Bar Code
48
Sample Bar Code
49
Scanning Positions
49
8 Using Scanwedge
49
Overview
49
Enabling Scanwedge
49
9 Using Control Panel
50
Settings
50
Mobile Networks
52
Device Settings
53
Sound Setting
53
Display Settings
53
Storage Settings
54
Battery Settings
54
Apps Settings
54
Factory Default
58
Personal Settings
58
Location Access Settings
58
Security Settings
59
Device Administration
60
Credential Storage
60
Trusted Credentials
60
Factory Data Reset
62
Accounts Settings
62
System Settings
63
Program Buttons Settings
64
Nonavibar
65
Nosip
65
10 Communication
65
Communication Options
65
Communication Type
66
Hardware Requirements for Setup
66
Connect to a Windows Computer Via USB
66
Exploring the Terminal from the Workstation
67
Wireless Radios
67
Connecting the Terminal to a Wireless Network
67
WLAN (802.11B/G/N Radio)
69
11 Bluetooth Handler
70
Enabling the Bluetooth Radio
70
Connecting to Other Devices
70
Pairing Bluetooth Devices
71
Setting up a Bluetooth Printer
71
12 Single Slot Docking Cradle/Single Slot Ethernet Cradle Device
71
Overview
71
Battery Charging
71
Power Supply
72
Front Panel
72
Back Panel
72
Powering the Single Slot Docking Cradle or Single Slot Ethernet Cradle Device
73
Charging Thebattery
74
Technical Specifications
74
13 Single Slot Docking Cradle/Single Slot Ethernet Cradle Device
75
Overview
75
Power Supply
75
Front Panel
76
Back Panel
77
Charging Thebattery
77
Technical Specifications
78
