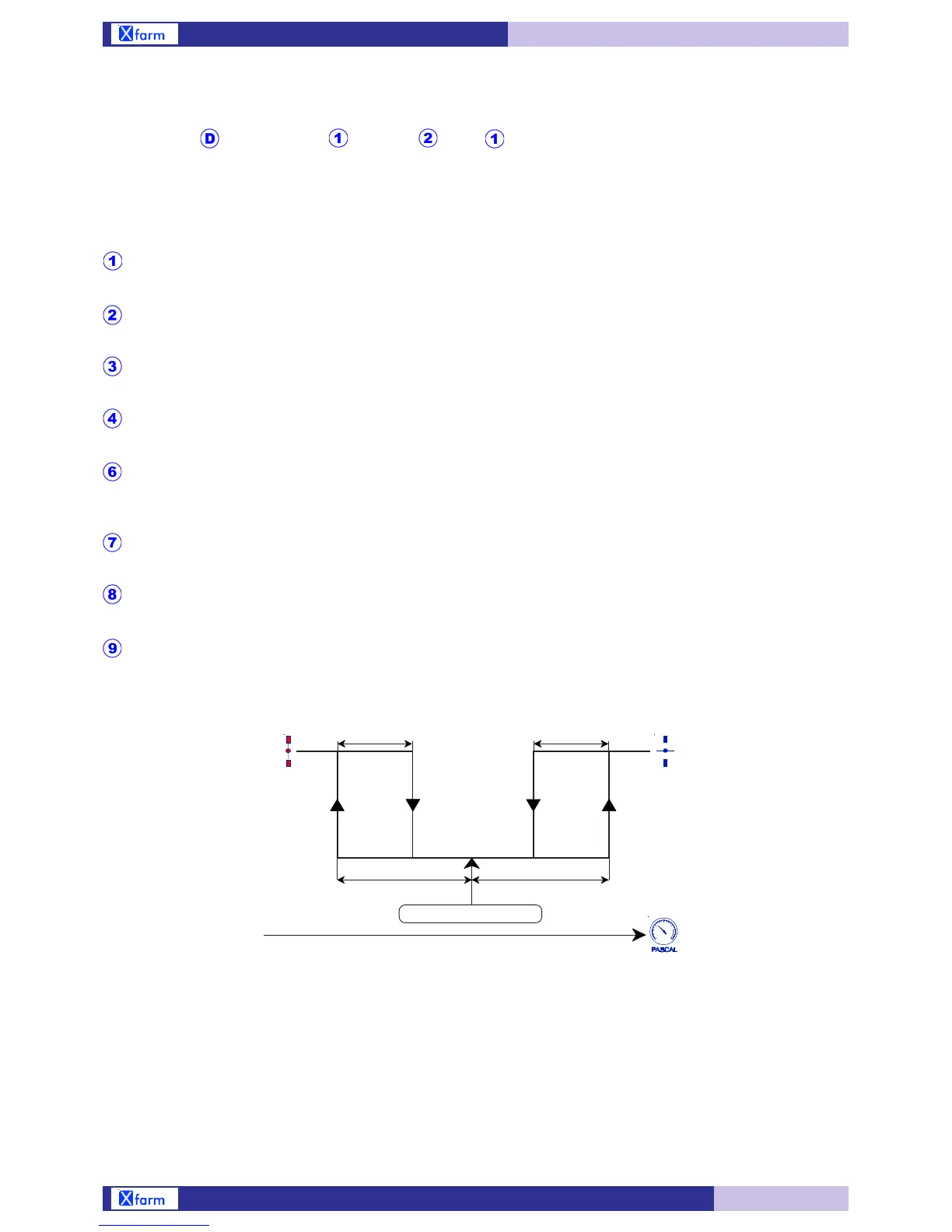

D.1.2.1 Pressure
Path: Home> Installation>> Climate> Flap> Pressure
When the flap is set to be controlled by pressure sensor, the flap position is set to give the required
negative pressure of the system (measured by the DP59/W unit).
D. Installation - Flap
Sets the ambient operating pressure (Pascal).
No Flap action neutral band.
Flap working time.
Flap waiting time.
Flap movement: when the flap is fitted with a potentiometer the flap
will move this % after each Waiting time
(only with Flap with potentiometer).
% Flap minimum opening with Ventilation On
(only with Flap with potentiometer).
% Flap minimum opening with Ventilation Off in Air exchange
(only with Flap with potentiometer).
Pressure readout correction (+ or -).
Air pressure set
(Range: 0
P
...20
P
...300
P
)
Neutral band
(Range: 0
P
...6
P
...300
P
)
Working time
(Range: 0.0”...2.0”...900.0”)
Waiting time
(Range: 0.0”...5.0”...900.0”)
Progress
(Range: 0%...3%...100%)
Min.% with Vent On
(Range: 0%...100%)
Min.% with Vent Off
(Range: 0%...100%)
Pressure adjust
(Range: -5
P
...0
P
...5
P
)
* Depressiometer Flap=
controlled by Waiting Time and Working Time.
Depressiometer Flap with potentiometer=
controlled by Waiting Time - Progress - Minimum opening - Min.% with Vent On - Min.% with Vent Off.
When set Flap 2 Aligned (with feedback potentiometer) the flap will be aligned to the Flap 1.
1/2 Neutral band
ON *
OFF
FLAP
CLOSED
ON *
OFF
1/2 Neutral band
FLAP
OPEN
1 Pascal 1 Pascal
Air depression
(Pascal)l
Pressure set
