POLA Xfarm User Manual

35

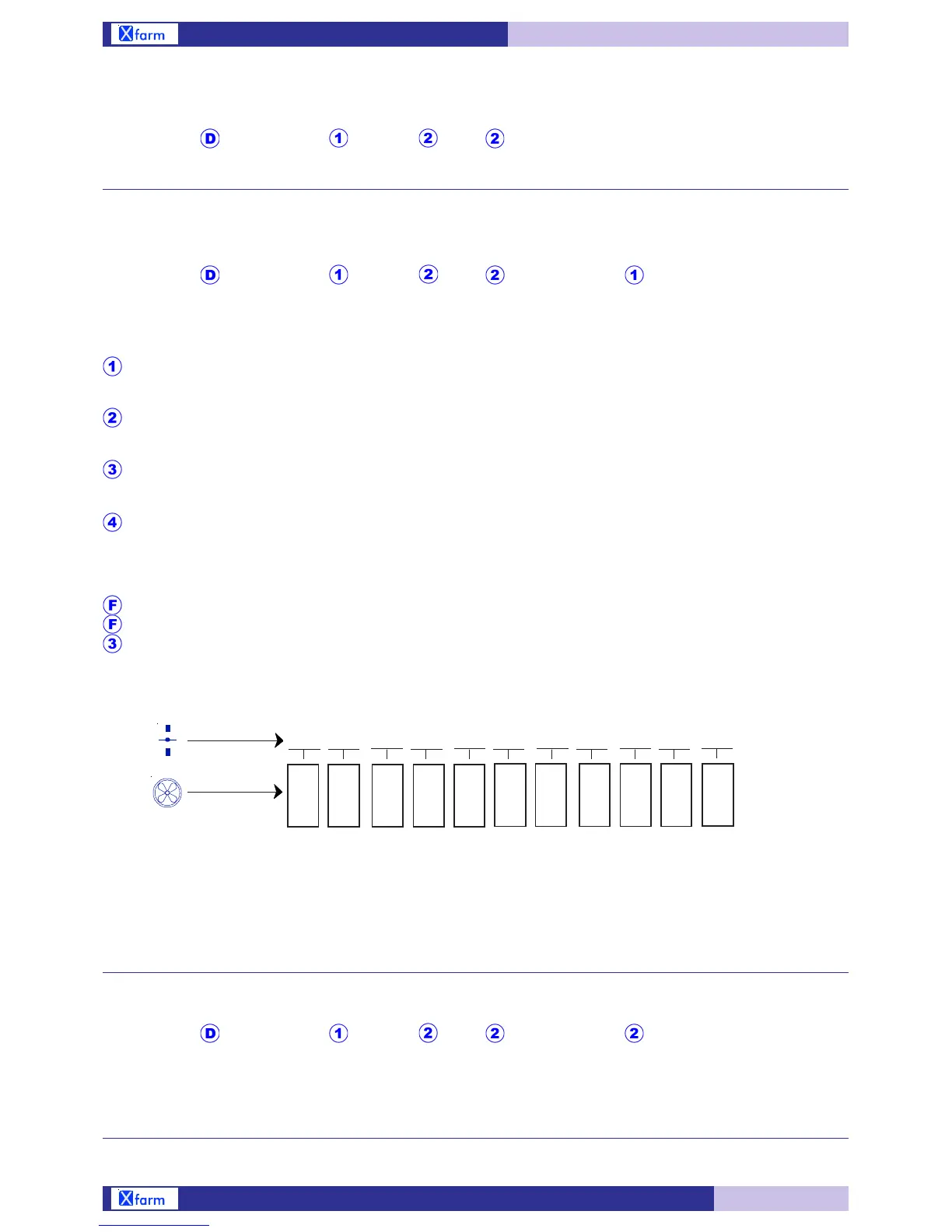

D. Installation - Flap
D.1.2.2.1 Flap 1 (winter)
Path: Home> Installation>> Climate> Flap> Associative %> Flap 1 (winter)
With set the Associative Flap working the Flap associative 1 is positioned to the various % of opening
according to the step of ventilation inserted (with feedback potentiometer or with 0-10V output).
% position Flap 1 associative at 0 ventilation Step.
% position Flap 1 associative at 1 ventilation Step.
% position Flap 1 associative at 2 ventilation Step.
% position Flap 1 associative at 3 ventilation Step.
% position Flap 1 associative at 10 ventilation Step.
Step 0 flap position
(Range: 0
%
...100
%
)
Step 1 flap position
(Range: 5
%
...100
%
)
Step 2 flap position
(Range: 10
%
...100
%
)
Step 3 flap position
(Range: 15
%
...100
%
)
Continue until to..
Step 10 flap position
(Range: 0
%
...100
%
)
D.1.2.2.2 Flap 2 (summer)
Path: Home> Installation>> Climate> Flap> Associative %> Flap 2 (summer)
Same for Flap 1 (if any) but referred to Flap 2.
D.1.2.2 Associative %
Path: Home> Installation>> Climate> Flap> Associative %
STEP
0
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
STEP
6
STEP
7
STEP
8
STEP
9
Step0
posit.
Step1
posit.
Step2
posit.
Step3
posit.
Step4
posit.
Step5
posit.
Step6
posit.
Step7
posit.
Step8
posit.
Step9
posit.
Ventilation
Step
% Flap 1
Position
STEP
10
Step10
posit.
