POLA Xfarm User Manual

37
D. Installation - Flap
THE SAME FOR FLAP 2

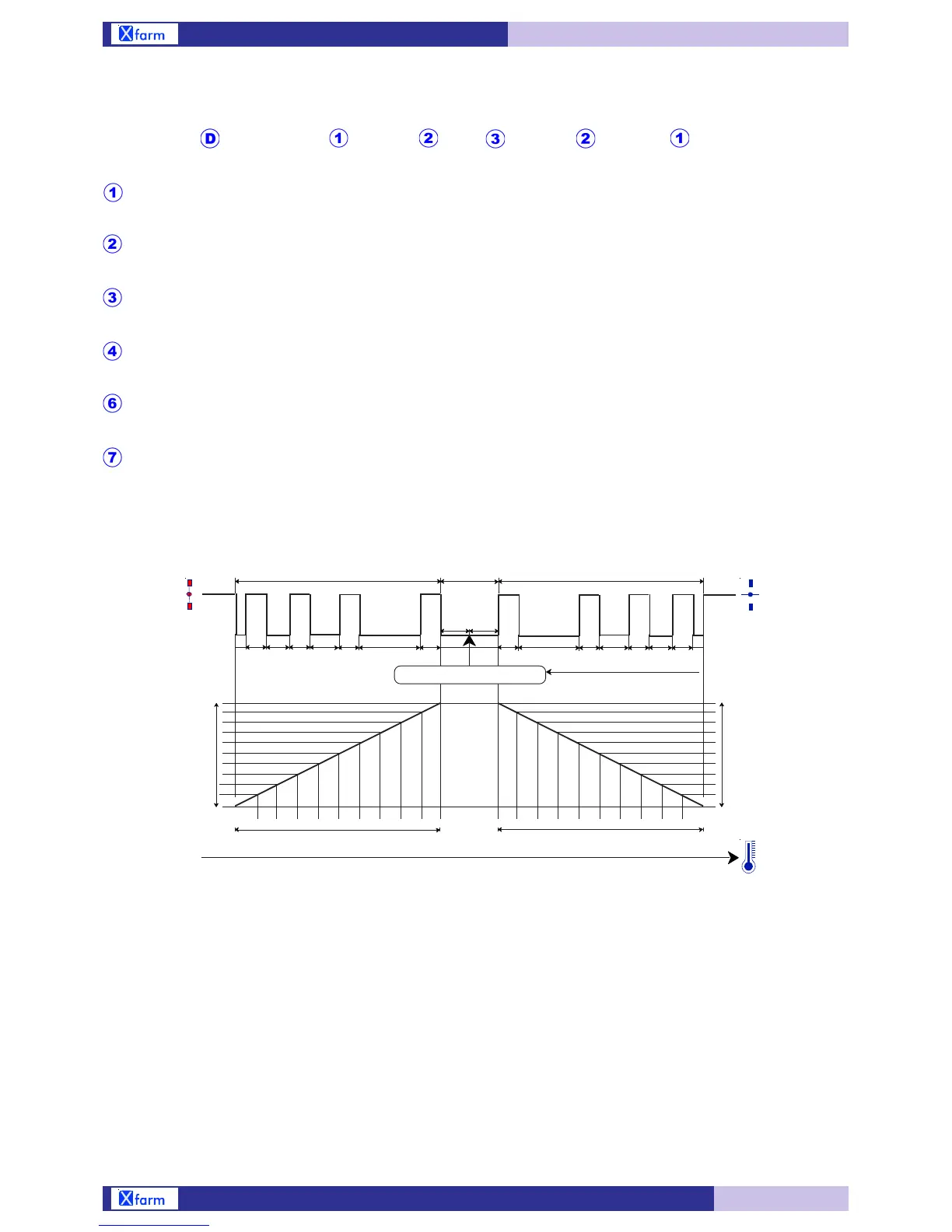

FLOATING WORKING MODE
Open band
Neutral
band
CLOSED
Closed band
OPEN
1/2
OnOnOn
Off Off
On
Off
OnOnOn
Off Off
On
Off
OFF
OFF
OFF
ON
OFF
ON ONONONONONONONON
OFFOFFOFF
1/2
100%
ti.On
OFF time calculation
*1
80%
90%
70%
60%
50%
40%
30%
20%
10%
OFF time calculation
*1
80%
90%
70%
60%
50%
40%
30%
20%
10%
ti.On
100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Open band
Closed band
FLAP 1
100%
Flap 1
probe temperature
*2
Flap 1 relative set
Set referred to the Ventilation set
programmed in Settings>Climate
*1
When the system works in Floating proportional mode, the ON working time is fixed (On Time),
where as the OFF time starts from a maximum (Maximum off time) and it is gradually reduced
according to the cold and hot band width (Closed band and Open band).
Example. In the middle of the Closed band, OFF time is 50% of Maximum off time.
The minimum OFF time is never below the On Time.
When in the neutral band (Neutral band) the system is OFF.
Beyond the Closed band and Open band the system is always ON.
*2
According to what was set in Configuration (see par. D.C) the temperature probe of Flap1 can be either
the same probe of Ventilation or an indipendent probe.
No Flap 1 action neutral band.
Working time Flap 1.
Max Off time Flap 1.
Extension in ° of the flap close modulation band.
Extension in ° of the Flap 1 open modulation band.
Neutral band
(Range: 0.0°...0.2°...30.0°)
On time
(Range: 0.0”...1.0”...900.0”)
Maximum off time
(Range: 0.0”...10.0”...900.0”)
Close band
(Range: 0.0°...5.0°...30.0°)
Open band
(Range: 0.0°...5.0°...30.0°)
The same for Flap 2
D.1.2.3.2.1 Natural> Floating> Flap 1
Path: Home> Installation>> Climate> Flap> Natural> Floating> Flap 1
