SD300
POWER ELECTRONICS
286
ACCESSORIES
Frame 3F:

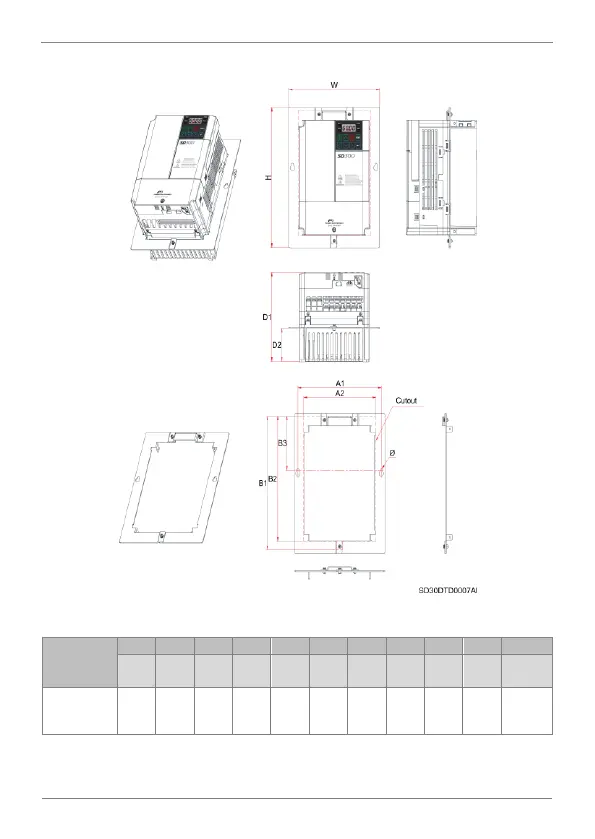

Frame 3F flange option kit dimensions.
Model
W
H
D1
D2
A1
A2
B1
B2
B3
Ø
Weight*
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
kg
(lb)
SD301042F
SD301212F
180
(7.09)
220
(8.66)
140
(5.51)
52.2
(2.06)
166
(6.54)
143.3
(5.64)
210.1
(8.27)
196.7
(7.74)
85.1
(3.35)
4.5
(0.18)
2.3
(5.07)
*Total weight of the drive with the flange installed
