Installation and Operation Manual Page 45 of 104
(PVI-3.8/4.6-I-OUTD-US Rev.: 1.1)

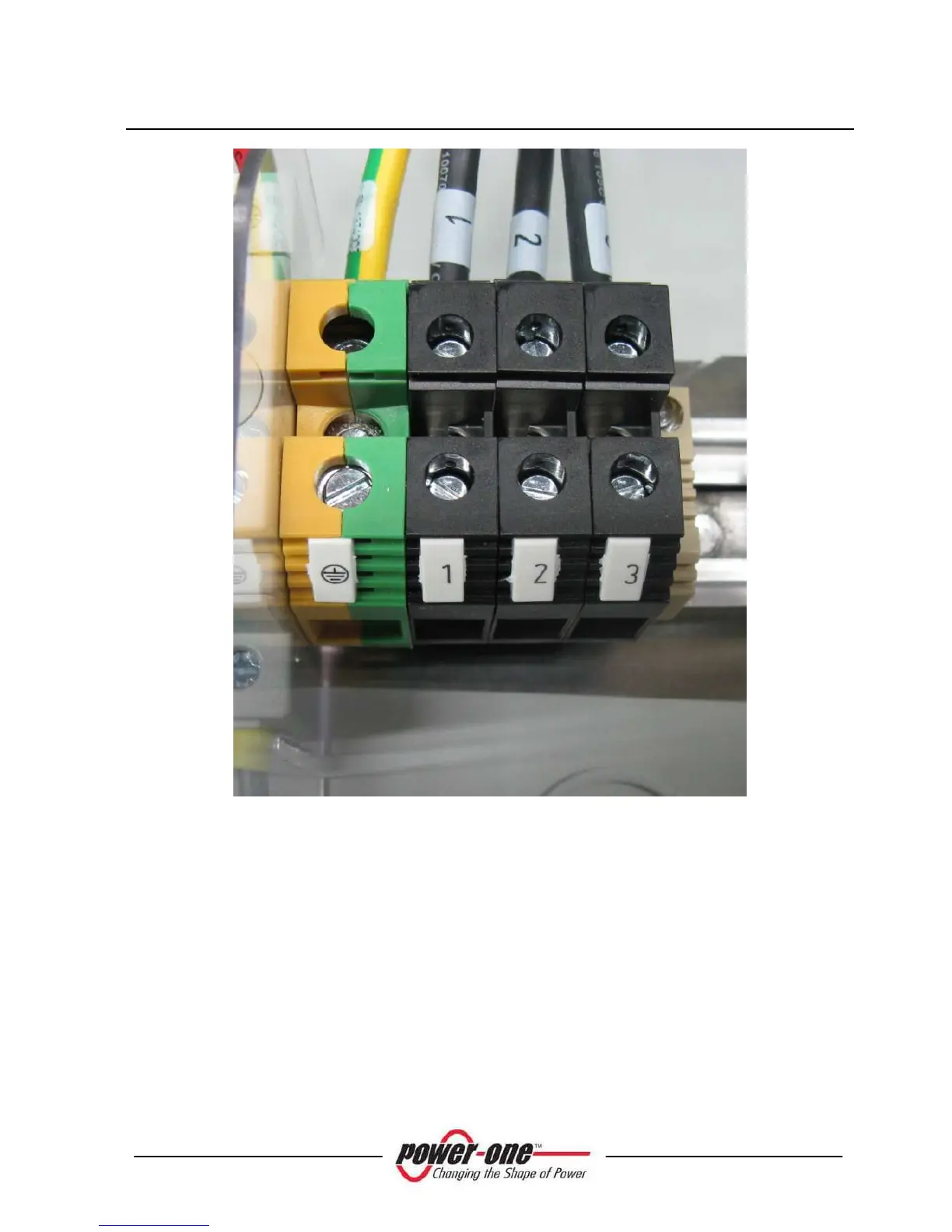

Fig. 17 - Terminal Block for AC connection (-S-US models)
Based on the local GRID standards, it is possible to select different connection types.
The available configurations are shown in the following table (Table CN-01 – "AC
Grid Connections").
