Installation and Operation Manual Page 55 of 104
(PVI-3.8/4.6-I-OUTD-US Rev.: 1.1)

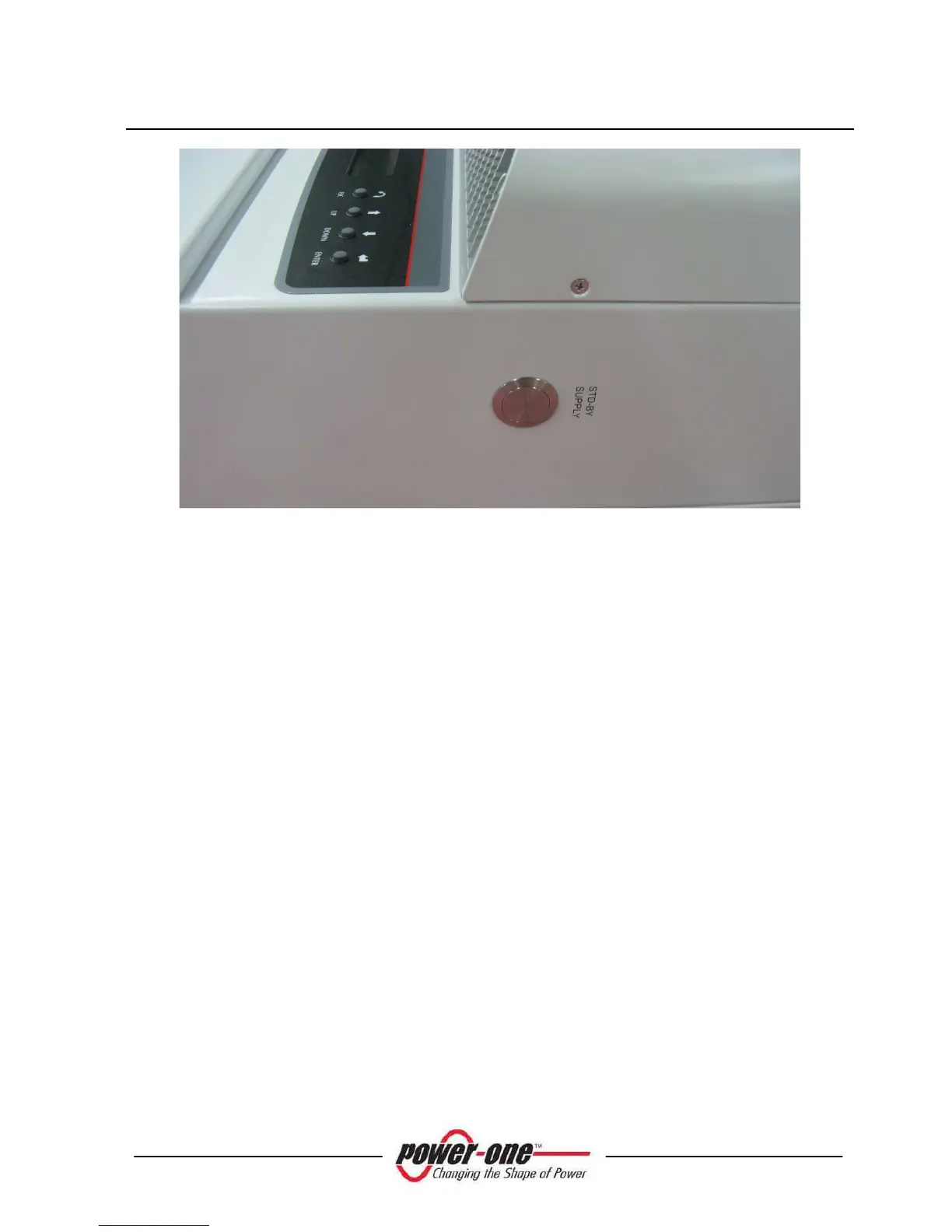

Fig. 21 - Stand by supply key
4.3 Shut-Down Procedure
There are three options for shutting down the inverter:
1) Disconnect the DC and the AC grid, by disconnecting their disconnect
devices (in any order). The inverter will shut down after a few seconds, which
are needed to discharge the internal capacities.
2) Disconnect the DC, by disconnecting its disconnect device and waiting for
the set UV port. Time (see paragraph 5.5.6.12).
3) Disconnect the grid, by disconnecting its disconnect device with a DC input
of less than 130 Vdc.
