Powtran PI9000 series - Wiring Diagram(11 Kw to 15 Kw)

256 pages

To Next Page

To Previous Page

Chapter 8 Installation and Spare Circuit

193

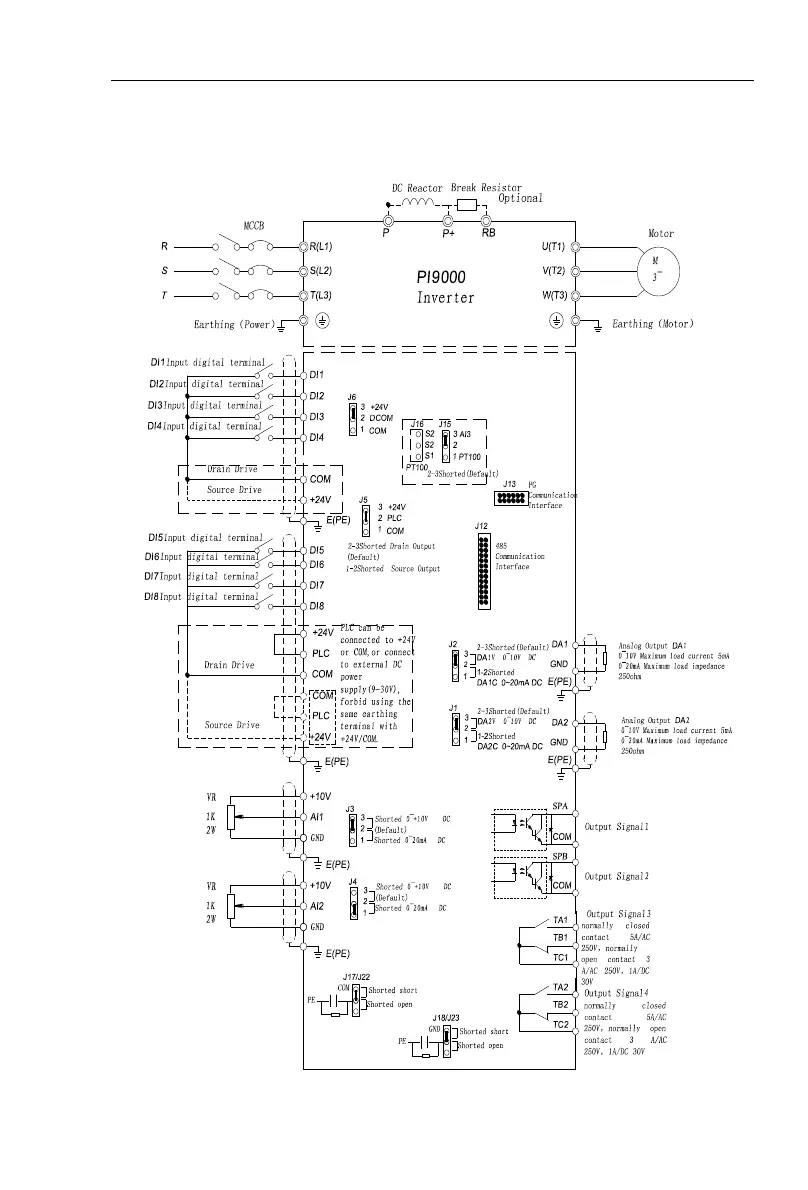

8-3-2.Wiring diagram(11kW to 15kW)

Main Circuit

Control Circult

Note：software version of C3.00 and above have J16 function.
