Chapter 3 Keyboard
3-1.Keyboard description
JP6E9100 keyboard control panel JPR6E9100 keyboard control panel
NOTE: The “R” in the “JPR6E9100” means keyboard with MCU.

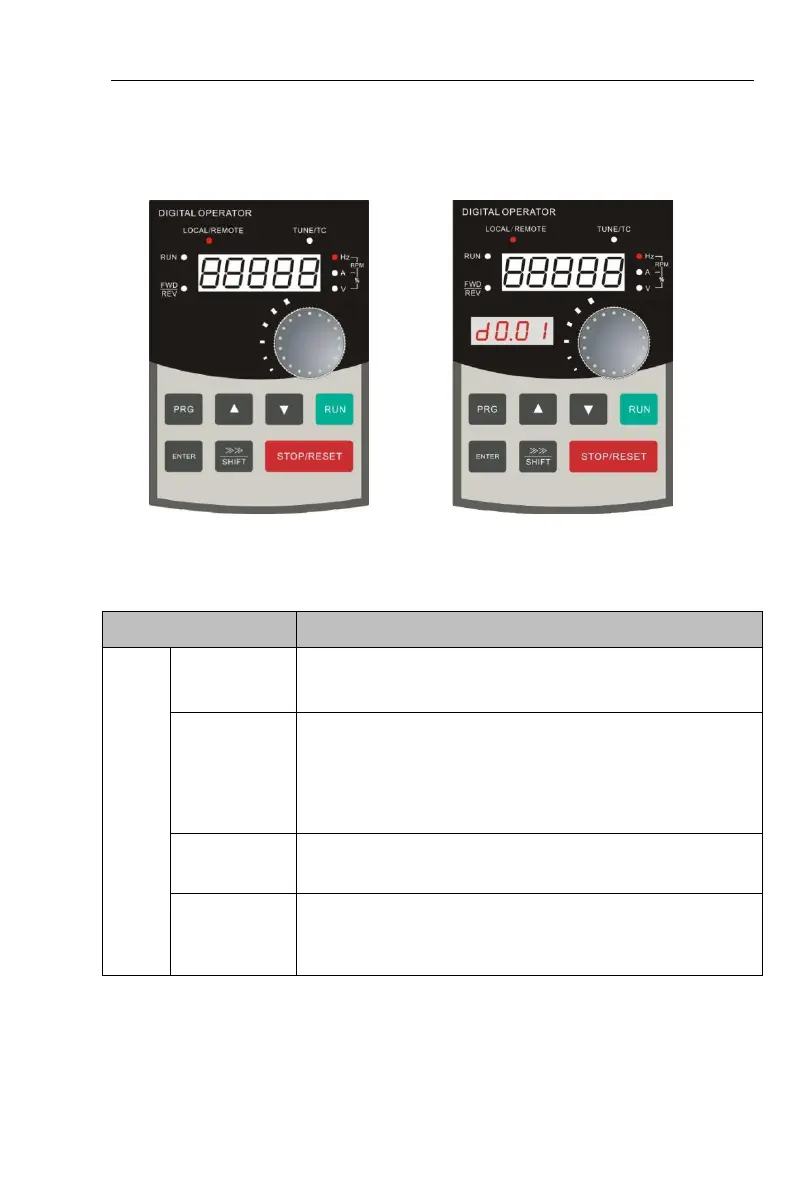

Figure 3-1 Operation panel display
3-2.Keyboard Indicators
Running indicator light
* ON: the inverter is working
* OFF: the inverter stops
Command indicator light
That is the indicator for keyboard operation, terminal
operation and remote operation (communication control)
* ON: terminal control working status
* OFF: keyboard control working status
* Flashing: remote control working status
Forward/reverse running light
* ON: in forward status
* OFF: in reversal status
Motor self-learning / torque control / fault indicator
* ON: in torque control mode
* Slow flashing: in the motor tunning status
* Quick flashing: in the fault status
