Chapter 5 Function parameter
165
E2.24
PID initial value
hold time
0.00s to 360.00s
0.00s
☆
When the inverter starts, PID output is fixed at PID initial value(E2.23), and then
continuous for the PID initial value hold time(E2.24), at last PID begins operation of the
closed-loop adjustment.
The figure is functional schematic of PID initial value.
This function is used to limit the deviation between two PID output beats(2ms/beats), in
order to suppress the too fast changes of PID output so that stabilizing the inverter operation.
E2.25
Maximum
deviation of twice
outputs(forward)
0.00% to 100.00%
1.00%
☆
E2.26
Maximum
deviation of twice
outputs(backward)
0.00% to 100.00%
1.00%
☆
E2.25 and E2.26 respectively corresponds to the maximum of the absolute value of
output deviation when rotating forward and reverse.
E2.27
Computing status
after PID stop
Stop without
computing
0
1
☆
Stop with computing
1
Used to select whether to continue computing in the state of PID shutdown. Generally,
PID will stop computing in the state of shutdown.
5-2-18.Virtual DI、Virtual DO:E3.00-E3.21
No.
Code
Parameter name
Setting range
Factory
setting
Change
limit
497.
E3.00
Virtual VDI1
terminal function
selection
0 to 50
0
★
498.
E3.01
Virtual VDI2
terminal function
selection
0 to 50
0
★

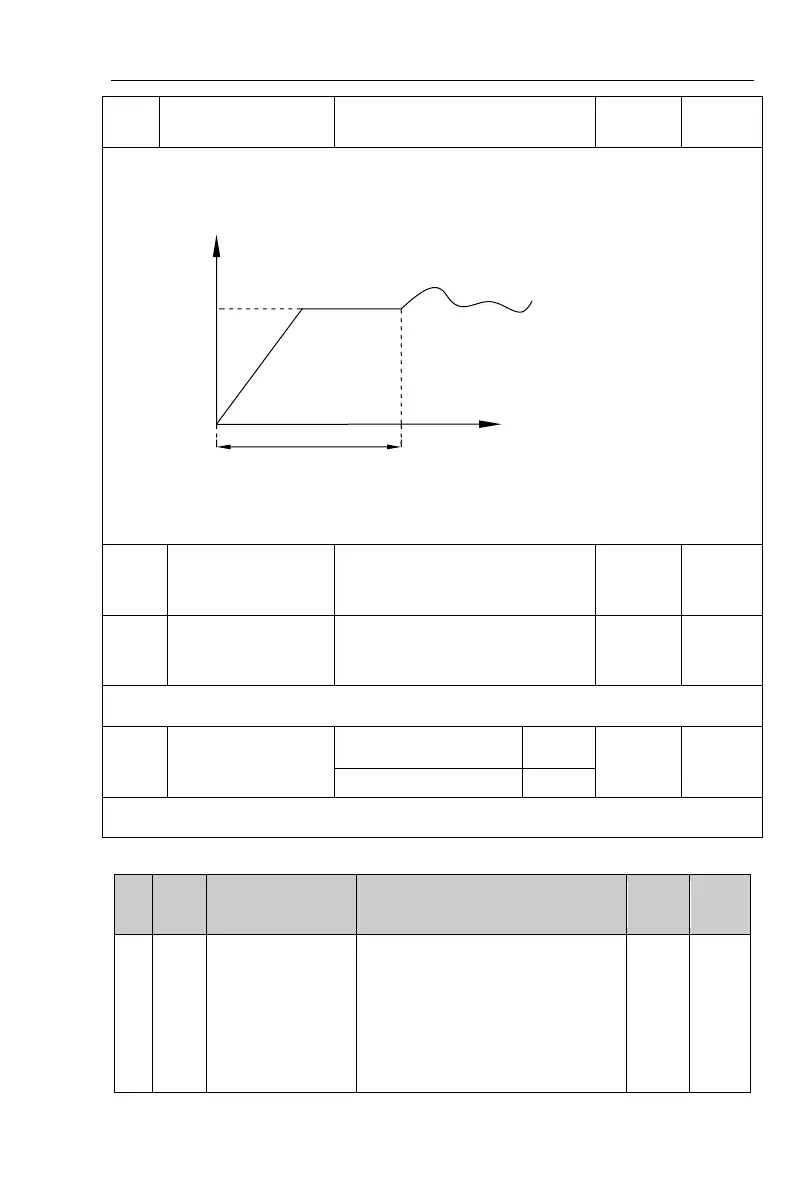

Functional schematic of PID initial value.
Output frequency
Hz
Time
t
PID
initial value
E2.23
PID
initial value hold time
E2.24
