Chapter 1.Inspection and Safety Precautions
1
Chapter 1.Inspection and safety precautions
POWTRAN frequency inverters have been tested and inspected before leaving
factory. After purchasing, please check if its package is damaged due to careless
transportation, and if the specifications and model of the product are consistent with
your order requirements. For any problem, please contact your local authorized
POWTRAN dealer or directly contact this company.
1-1.Inspection after unpacking
※ Check if that packing container contains this unit, one manual and one warranty
card.
※ Check the nameplate on the side of the frequency inverter to ensure that the
product you have received is right the one you ordered.

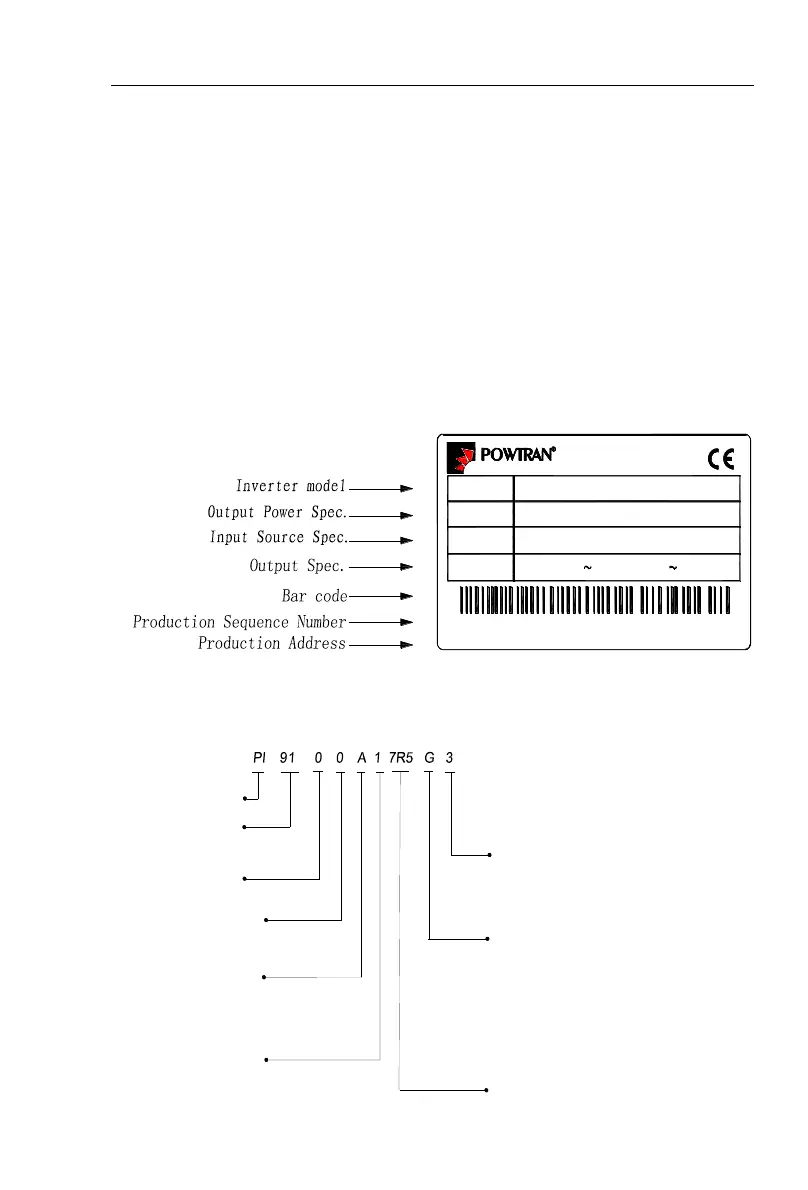

1-1-1.Instructions on nameplate
POWER
INPUT
OUTPUT
DALIAN POWTRAN TECHNOLOGY CO.,LTD.
MODEL
7.5kW
AC 3PH 380V 50Hz/60Hz ± 10%
AC 0 17A 0 400Hz3PH 380V
PI9100 7R5G3
ZPB1A0100001
1-1-2.Model designation
Type Code:
A:Single IGBT
B:Integrated intelligent
power module (omitted)
Powtran Inverter
Rated output capacity (● ● ●)
Example: 7R5: 7.5kW 132:132 kW
Function code (□)
General Type F: Light load
G: Standard load
Series Code
91：PI9100 series 93：PI9300 series
92：PI9200 series 94：PI9400 series
Input Voltage Level
1: Single-phase 220V 2:Three-phase 220V
3:Three-phase 380V 4:Three-phase 480V
6: Three-phase 690V
Class Code:
0: Standard configuration
1: Special 1 configuration
2: Special 2 configuration
Version Number
0: Default (omitted)
1: Version upgrade
Derivative Code
3:With MCU keyboard
