AFV-P Series High Performance Programmable AC Power Supply
80
B. STEP Feature Example
To illustrate the STEP feature, the figures shown below are the example of setting the
STEP feature for the Step 1 & 2 & 3 and the output waveform corresponding to this
example.

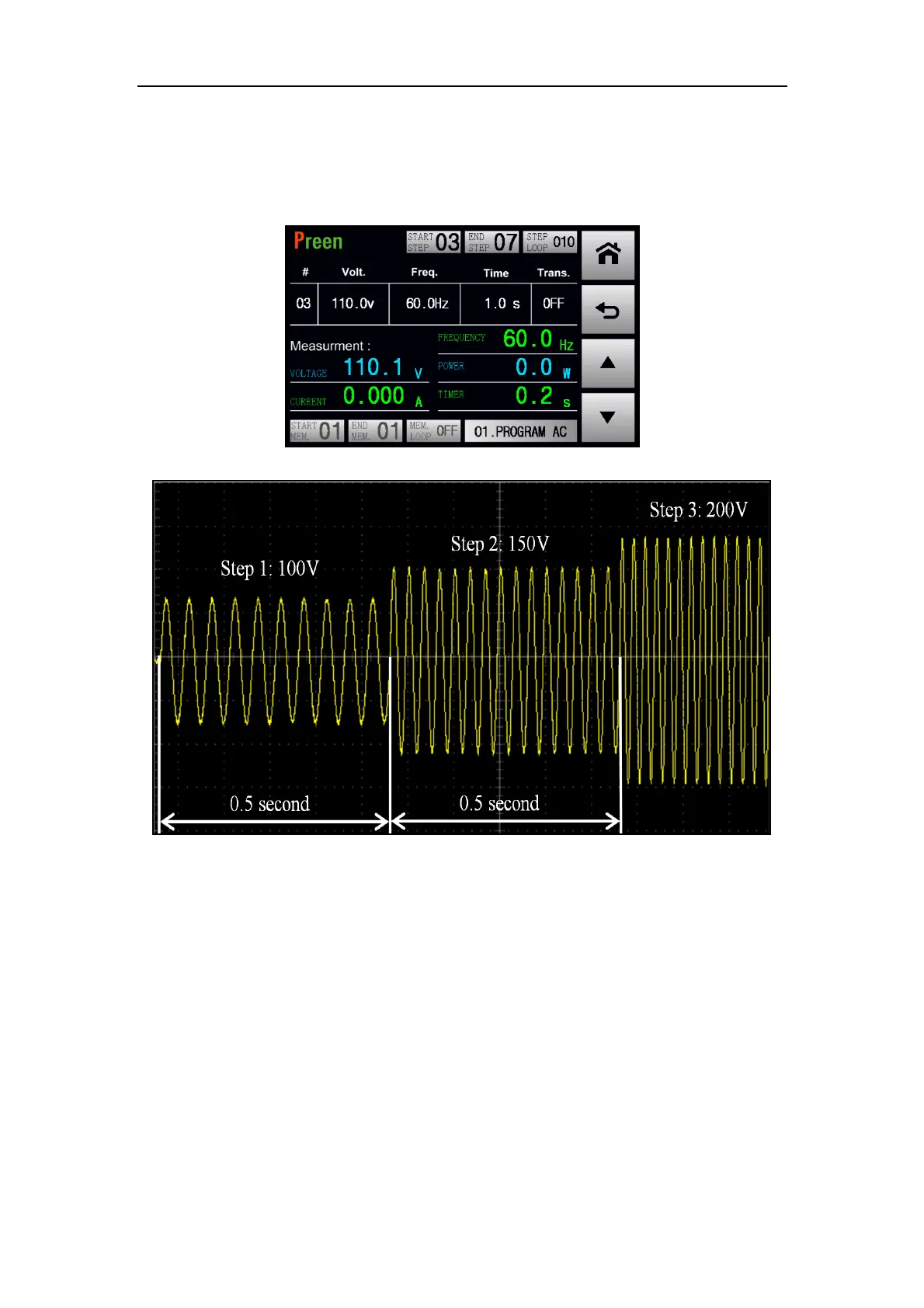

Figure 5.9 Example of setting the STEP feature for the Step 1 & 2 & 3
Figure 5.10 Output Waveform corresponding to the example above
To Next Page
