AFV-P Series High Performance Programmable AC Power Supply
83
E. LIMITS Subpage
After pressing the icon at the STEP page, the GENERAL subpage will be
shown on the touch screen in advance. Then users can press the icon
to enter into the LIMITS subpage, and enable the LIMITS feature to perform the out-
put test for the desired Step. Please see the following figures,

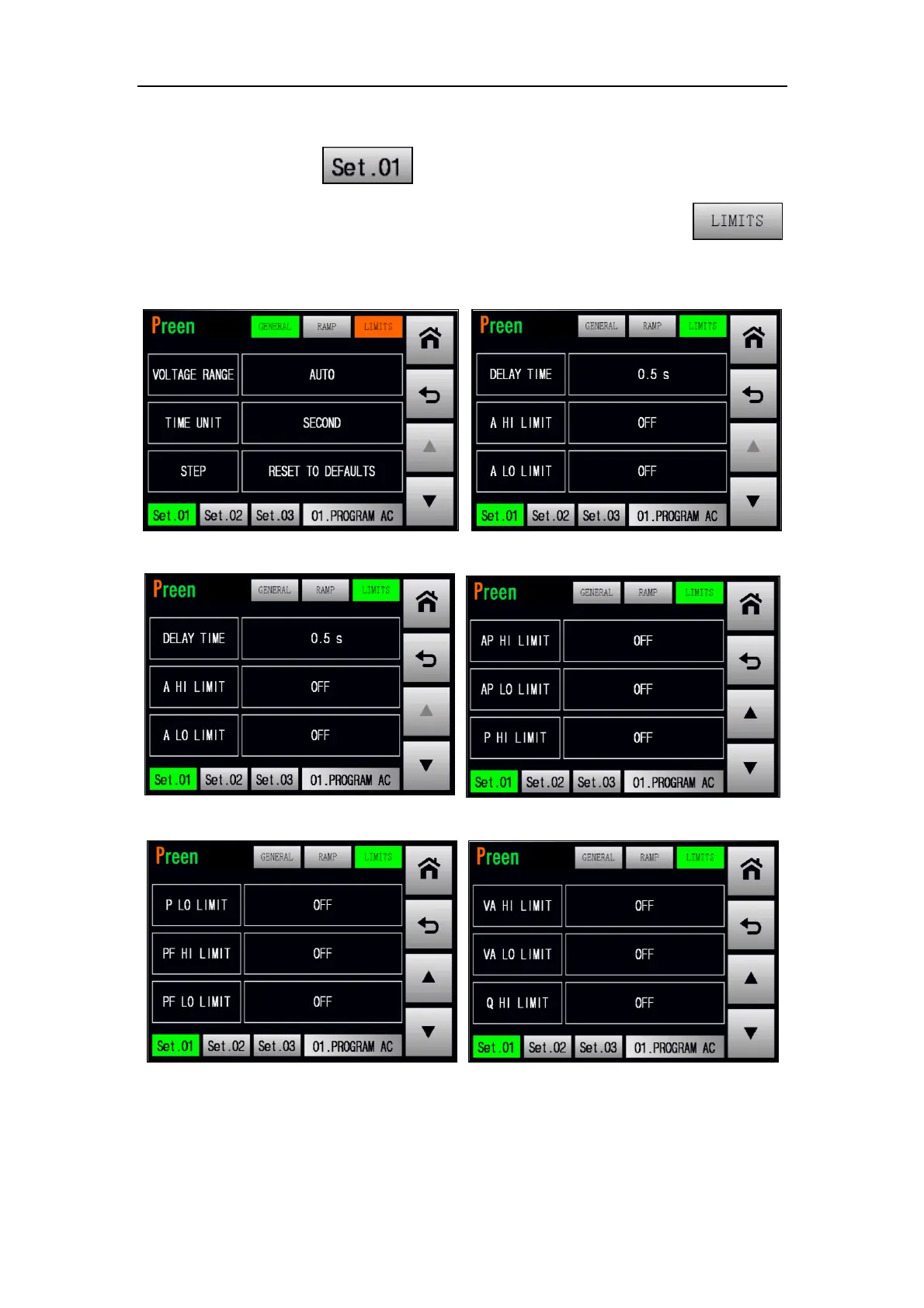

Figure 5.14 Enter into the LIMITS subpage
Figure 5.15 LIMITS subpage 1 & 2
Figure 5.16 LIMITS subpage 3 & 4
To Next Page
