ProgrammerManual PTX‐S828
Chapter5IPDSProgrammingInformation 162 260071‐001A

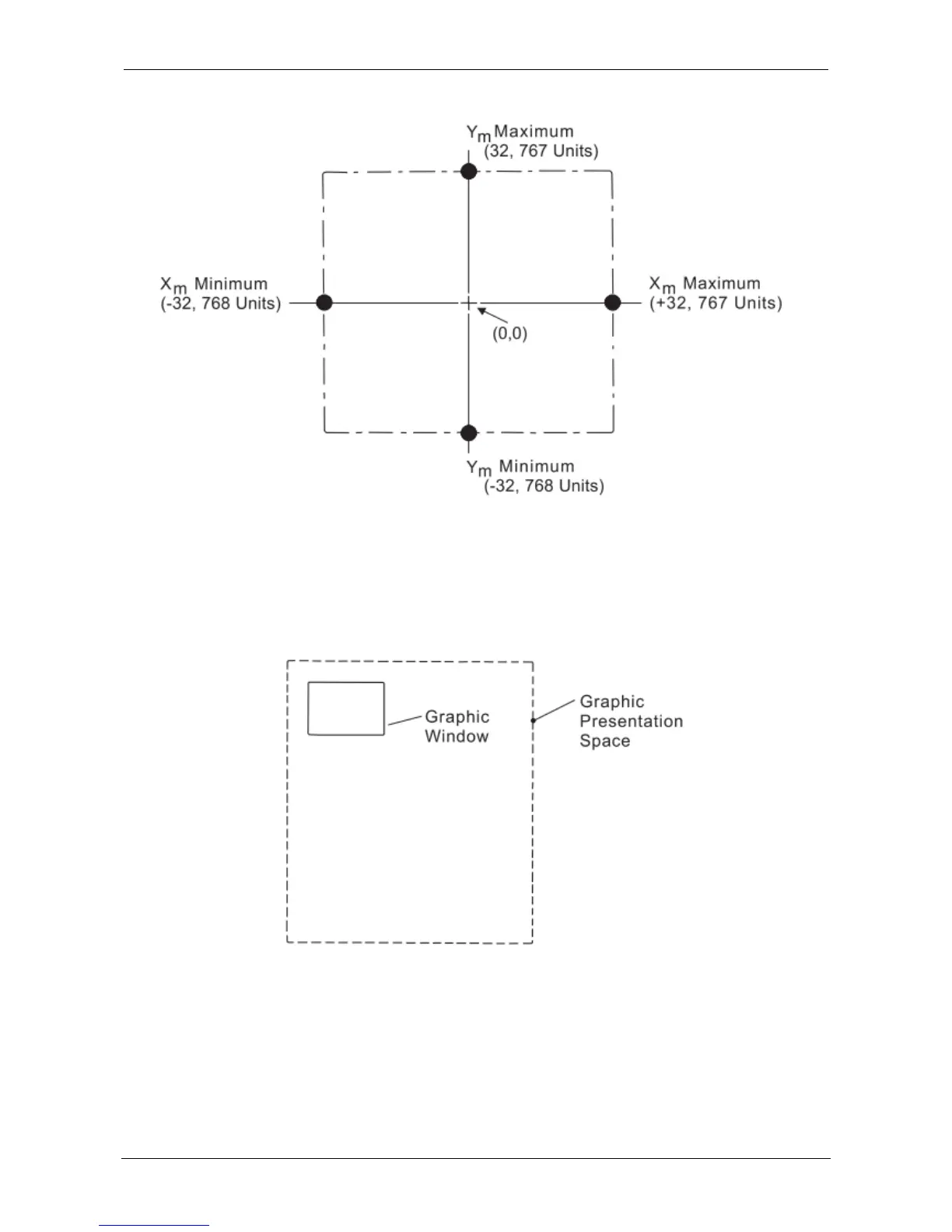

Figure 17. The Graphic Medium Presentation Space and Its Limits
Graphic Window
The graphic window is a user-defined, rectangular area within the graphic medium presentation space.
This area is the source from where information is selected for printing. Figure 18 illustrates the relationship
of the graphic window to the graphic medium presentation space.
Figure 18. The Graphic Window within the Graphic Medium Presentation Space
Graphic Block Area
The graphic block area is the part of the current physical medium in which the graphics is printed.
The graphic block area can overlap other output (such as text or images) specified earlier for the same
page. Likewise, subsequent output specified by other commands for the same page can overlap the
graphic block area. Figure 19 shows the graphic block area and its relationship to the
physical medium.
