Printronix S828 - Figure 33. Print Sample from an IPDS Application Program

ProgrammerManual PTX‐S828
Chapter7.PrintSamplesandIPDSCodingExample 239 260071‐001A
IPDS Coding Example

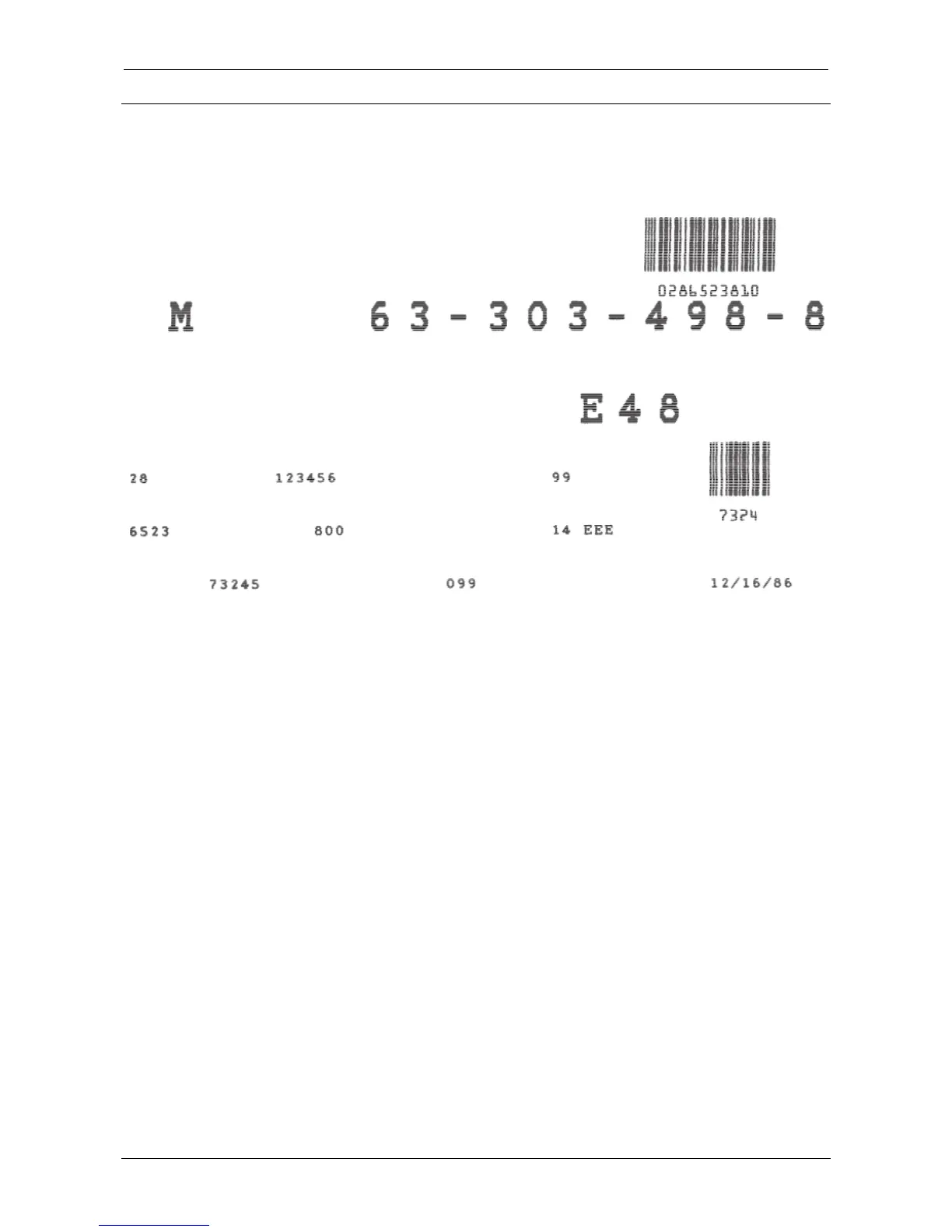

The S828 Printer produced this example of text, bar codes, and block graphic characters printing on the
front continuous forms paper source. The code used to print the example appears in Table 11.
Figure 33. Print Sample from an IPDS Application Program
The following chart is an example of an IPDS application program that prints the block graphic characters,
two bar codes, and text information shown in Table 9, printing on the front continuous forms paper source.
The first column (IPDS Commands) contains abbreviations of the IPDS instructions that are coded in
column 2. Column 2 (Hexadecimal Code) contains the hexadecimal code that produces the characters, bar
codes, and text pictured in Table 9. Column 3 (Code Explanation) explains each command element.
When the application is actually coded, the hexadecimal code of each command may be entered in one
stream. The IPDS command abbreviations in the first column and the explanation of each part of the
command in the last column, are comments.
Table 11. IPDS Coding Example
IPDS Command Hexadecimal Code Code Explanation
******** Printer Initialization
SHS 0005 Control Length
— D697 Set Home State
— 00 Flag Byte
X0A(EHC) 000A Control Length
— D633 Execute Order Any State
— 00 Flag Byte
— F600 Exception Handling Order
— C1 Report All Exceptions
— 01 Do Not Take Alternate Action
