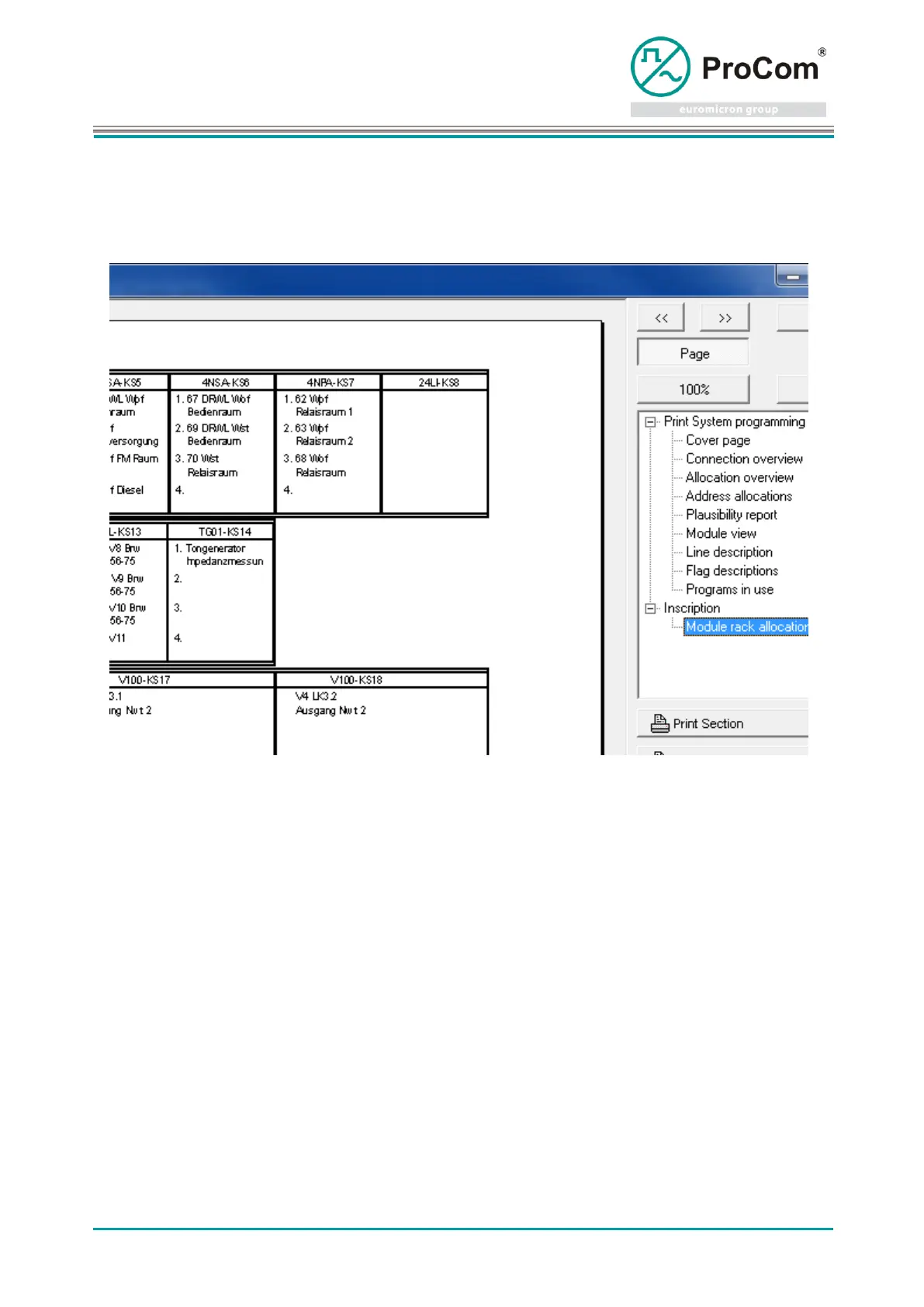

5.5 Documentation
Preview and option of printing documentation regarding a configured system.
Documentation of a configured system consists of multiple components.
Cover page
with details regarding system designation and creation date.
Connection overview
provides a listing by Station number, Name and the associated connections
including all occupied keys and their function, e.g. SR1, SR2 etc.
Allocation overview
provides the Station number associated with the address and port.
Address allocations
lists the descriptive texts of the module addresses.
Plausibility report
lists all possible faults of the plausibility test.
Module view
displays the equipped racks in graphic form.
Line description
lists all lines in use with their descriptions.
Flag descriptions
lists all Flags in use with their descriptions.
Programs in use
lists all programs with their IO conditions.
Module rack allocation
creates a labeling sheet of the precise size.
The Print Section button prints only the visible section while the Print System programming button prints
complete documentation without Module rack allocation.
